Xerox WorkCentre 5945

February 2016
5-22
Xerox® WorkCentre® 5945 Family
PL 10.16
Parts Lists

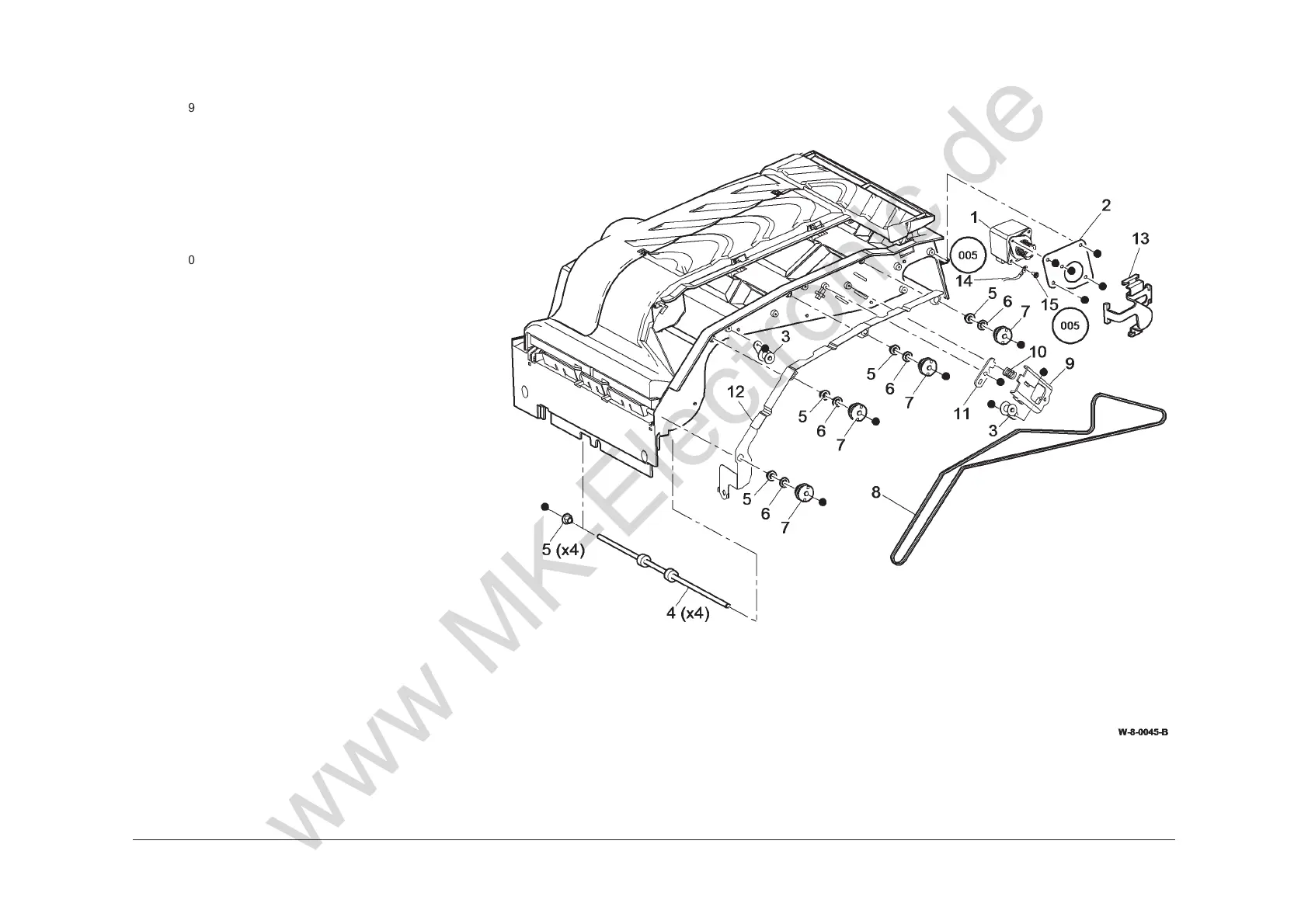

PL 10.16 Horizontal Transport
A
ssembly (2 of 2)
Item Part Description
1
927K02400 Horizontal transport motor (MOT10-
040) (REP 10.7)
2 – Motor support bracket (P/O PL
10.15 Item 1)
3 – Idler (P/O PL 10.15 Item 1)
4 – Horizontal transport roll (P/O PL
10.15 Item 1)
5 – Bearing (P/O PL 10.15 Item 1)
6 – Washer (P/O PL 10.15 Item 1)
7 – Pulley (P/O PL 10.15 Item 1)
8 023E32990 Horizontal transport drive belt (REP
10.7)
9 – Belt tensioner bracket (P/O PL
10.15 Item 1)
10 – Tension spring (P/O PL 10.15 Item
1)
11 – Spring anchor (P/O PL 10.15 Item
1)
12 – Ground strip (P/O PL 10.15 Item 1)
13 – Pulley cover (Not Spared) (REP
10.7)
14 – Ground wire (P/O PL 31.14 Item
13) (W/TAG 005)
15 – Ground wire screw (P/O PL 31.14
Item 13) (W/TAG 005)
