Xerox® WorkCentre® 5945 Family
PL 10.12
Parts Lists

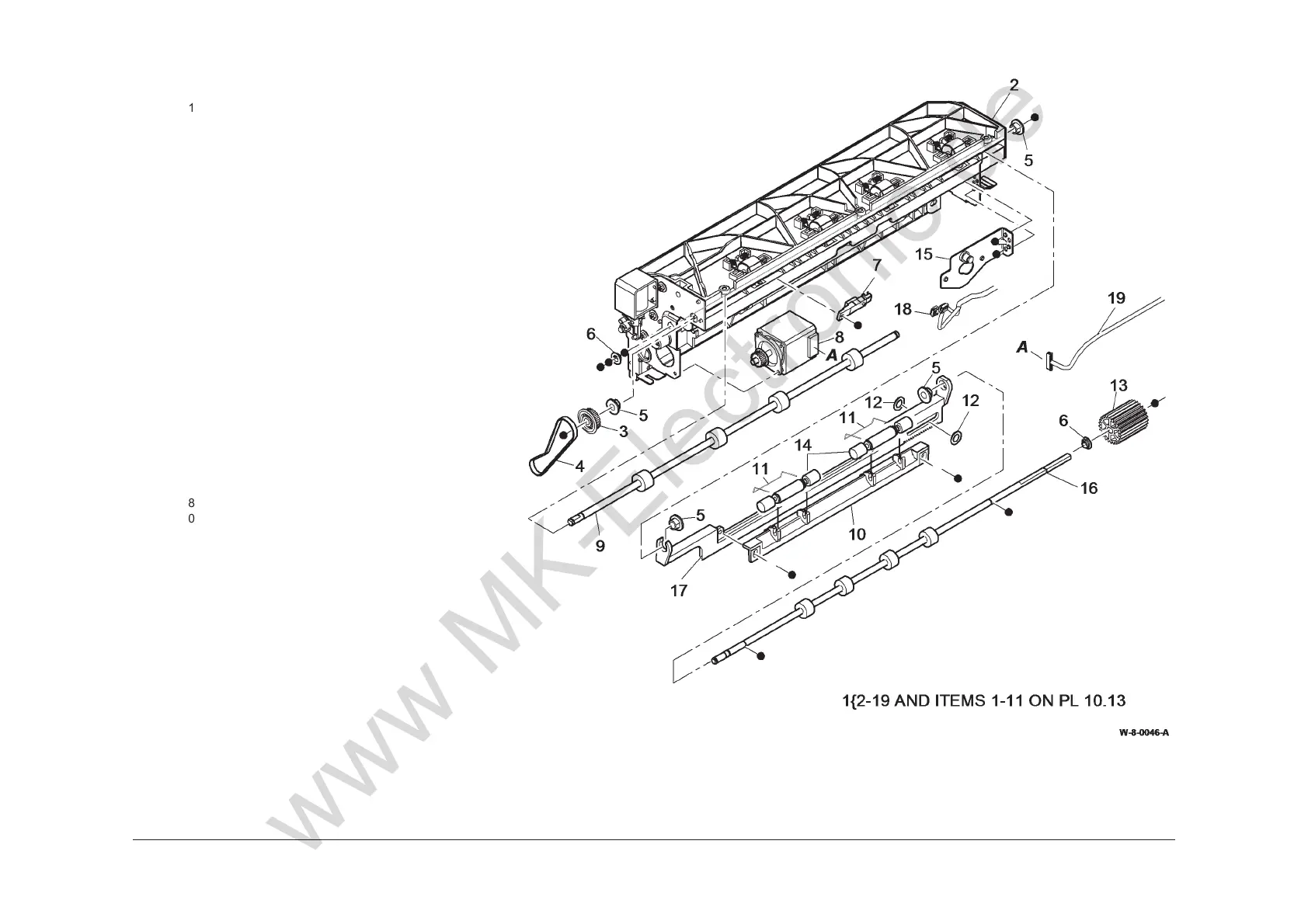

PL 10.12 Inverter Assembly
(
Horizontal Transport) (3 of 4)
Item Part Description
1
112K01280 Inverter assembly (REP 10.1)
2 – Exit guide housing (P/O PL 10.12
Item 1)
3 – Pulley (21T) (P/O PL 10.12 Item 1)
4 – Drive belt (P/O PL 10.12 Item 1)
5 – Bearing (P/O PL 10.12 Item 1)
(REP 10.5)
6 – Shaft bearing (P/O PL 10.12 Item
1) (REP 10.5)
7 – Post fuser sensor (Q10-120) (P/O
PL 10.12 Item 1)
8 – Inverter motor (MOT10-030) (P/O
PL 10.12 Item 1) (REP 10.3)
9 – Drive roll (P/O PL 10.12 Item 1)
10 – Nip roll support (P/O PL 31.14 Item
5) (See NOTE)
11 – Nip spring (P/O PL 31.14 Item 5)
(See NOTE)
12 – Locking washer (P/O PL 10.12 Item
1)
13 – Exit drive gear (P/O PL 10.12 Item
1) (REP 10.5)
14 – Nip roll (P/O PL 31.14 Item 5) (See
NOTE) (REP 10.5)
15 – Motor bracket (P/O PL 10.12 Item
1)
16 806E44797 Exit roll (REP 10.5)
17 059E12307 Shuttle (REP 10.5)
18 – Inverter sensor harness (P/O PL
1.10 Item 24)
19 – Inverter motor harness (P/O PL
1.10 Item 24)
NOTE: Also supplied as part of PL 31.14 Item 5.
