February 2016
5-73
Xerox® WorkCentre® 5945 Family
PL 60.15
Parts Lists

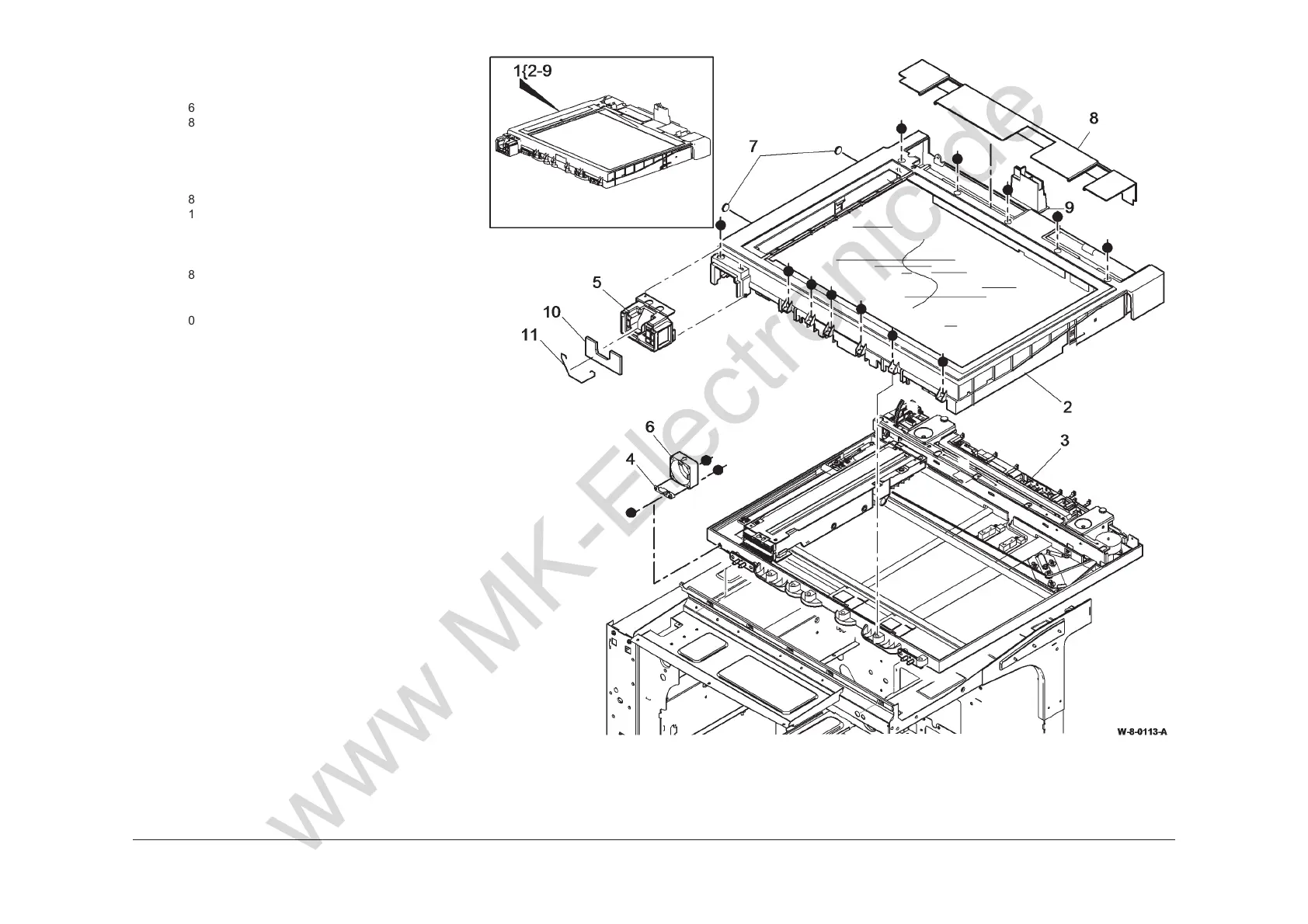

PL 60.15 Scanner Module, CVT/
D
ocument Glass
Item Part Description
1
607K11970 Scanner module (REP 60.2)
2 848K98180 Top cover assembly (See NOTE 2)
(REP 60.3)
3 – Base (P/O PL 60.15 Item 1)
4 – Fan bracket (Not Spared) (REP
60.14)
5 819E17010 Fan filter cover (REP 60.3)
6 127K69240 Cooling fan (MOT62-029) (REP
60.14)
7 – Top cover plug (P/O PL 60.15 Item
1)
8 848K83750 Rear cover (REP 60.1)
9 – SPDH harness guide (P/O PL
60.15 Item 1) (REP 5.19)
10 053E08860 Fan filter (REP 60.3)
11 – Wire retainer (Not Spared)
NOTE: 1.Refer to ADJ 60.1 for the scanner cleaning
procedure.
NOTE: 2.The top cover assembly includes the CVT glass
and the platen glass.
