Xerox WorkCentre 5945

February 2016
5-29
Xerox® WorkCentre® 5945 Family
PL 12.40
Parts Lists

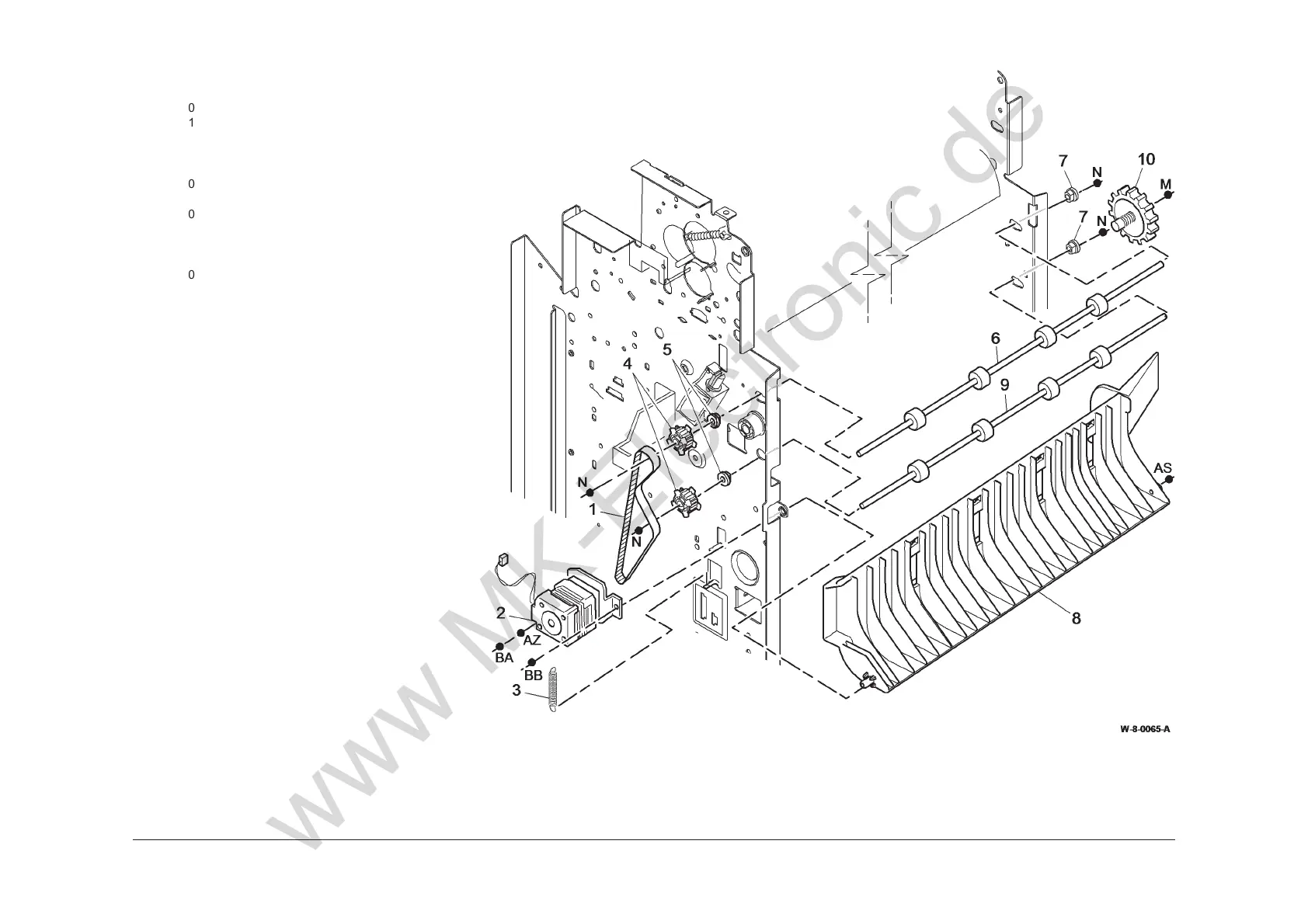

PL 12.40 2K LCSS Paper Entry
T
ransport
Item Part Description
1
023E24340 Input drive belt (REP 12.2-110)
2 127K55860 Transport motor 1 (MOT12-223)
(REP 12.2-110, ADJ 12.4-110)
3 – Spring (Not Spared)
4 – Pulley (Not Spared)
5 013E37460 Dry bearing
6 – Feed roll shaft (short) (Not Spared)
7 013E37470 Bearing
8 – Jam clearance guide assembly
(REF: PL 12.70 Item 1)
9 – Feed roll shaft (long) (Not Spared)
10 006K32780 Thumb wheel
