Xerox® WorkCentre® 5945 Family
PL 80.10
Parts Lists

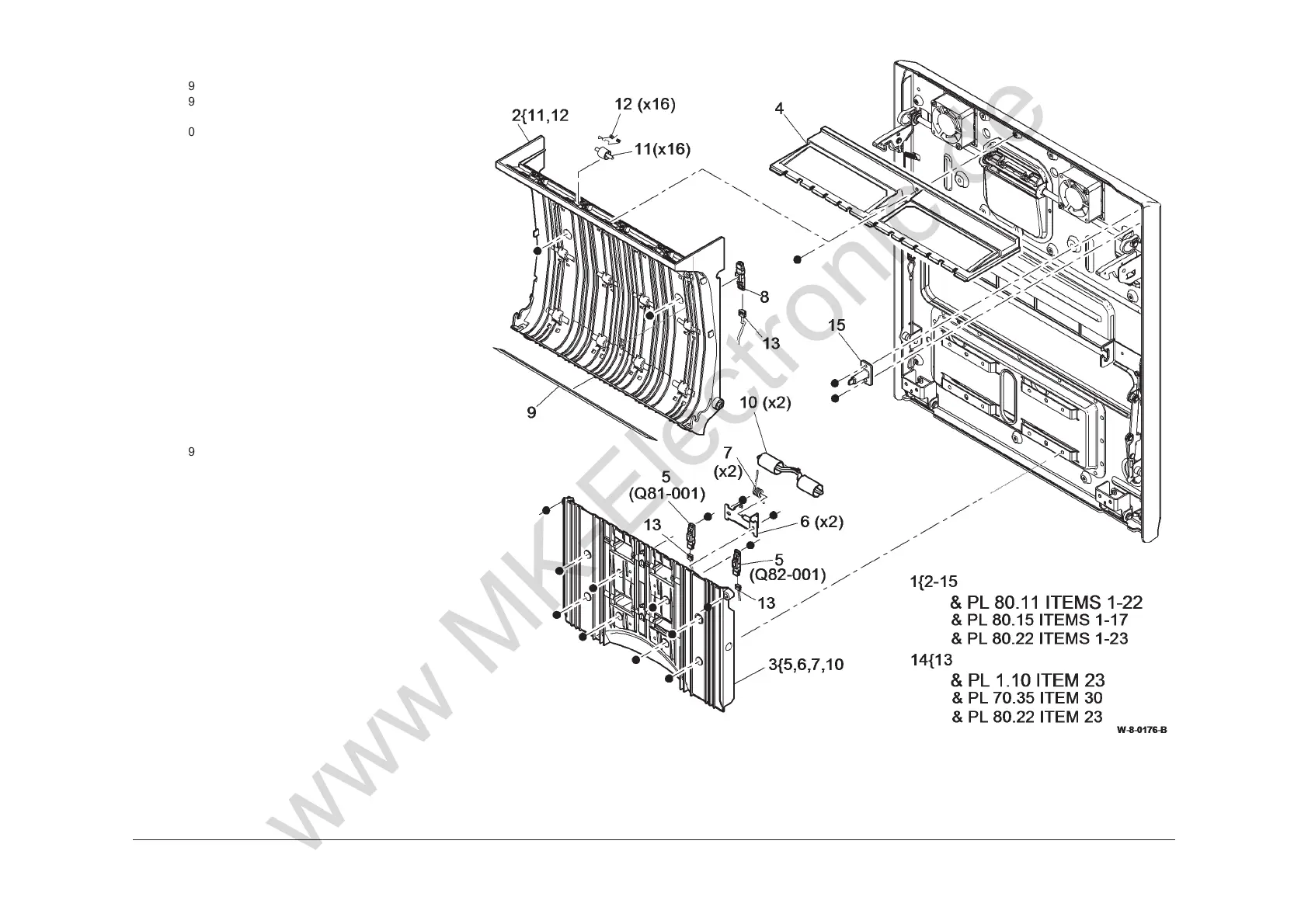

PL 80.10 Left Door Assembly (1 of 2)
Item Part Description
1
948K10174 Left door assembly (REP 80.7)
2 948K25910 Duplex outer guide assembly (REP
80.9)
3 038K24012 Lower left door paper guide (REP
80.2)
4 – Left door fan cover (P/O PL 80.10
Item 1)
5 – Tray 1 TAR sensor (Q81-001)/ Tray
2 TAR sensor (Q82-001) (P/O PL
80.10 Item 3) (REP 80.2)
6 – Bracket (P/O PL 80.10 Item 3)
7 – Tension spring (P/O PL 80.10 Item
3)
8 – Duplex sensor (Q83-160) (P/O PL
80.10 Item 2) (REP 80.9)
9 – Mylar (P/O PL 80.10 Item 2)
10 – Nip roll assembly (P/O PL 80.10
Item 3)
11 – Duplex roll idler (P/O PL 80.10 Item
2)
12 – Idler spring (P/O PL 80.10 Item 2)
13 – Left door sensor and fan harness
(P/O PL 80.10 Item 14) (REP
80.33)
14 952K37752 Left door harness set (REP 80.33)
15 – Left door interlock actuator (P/O PL
80.10 Item 1)
