Xerox WorkCentre 5945

February 2016
5-88
Xerox® WorkCentre® 5945 Family
PL 80.22
Parts Lists

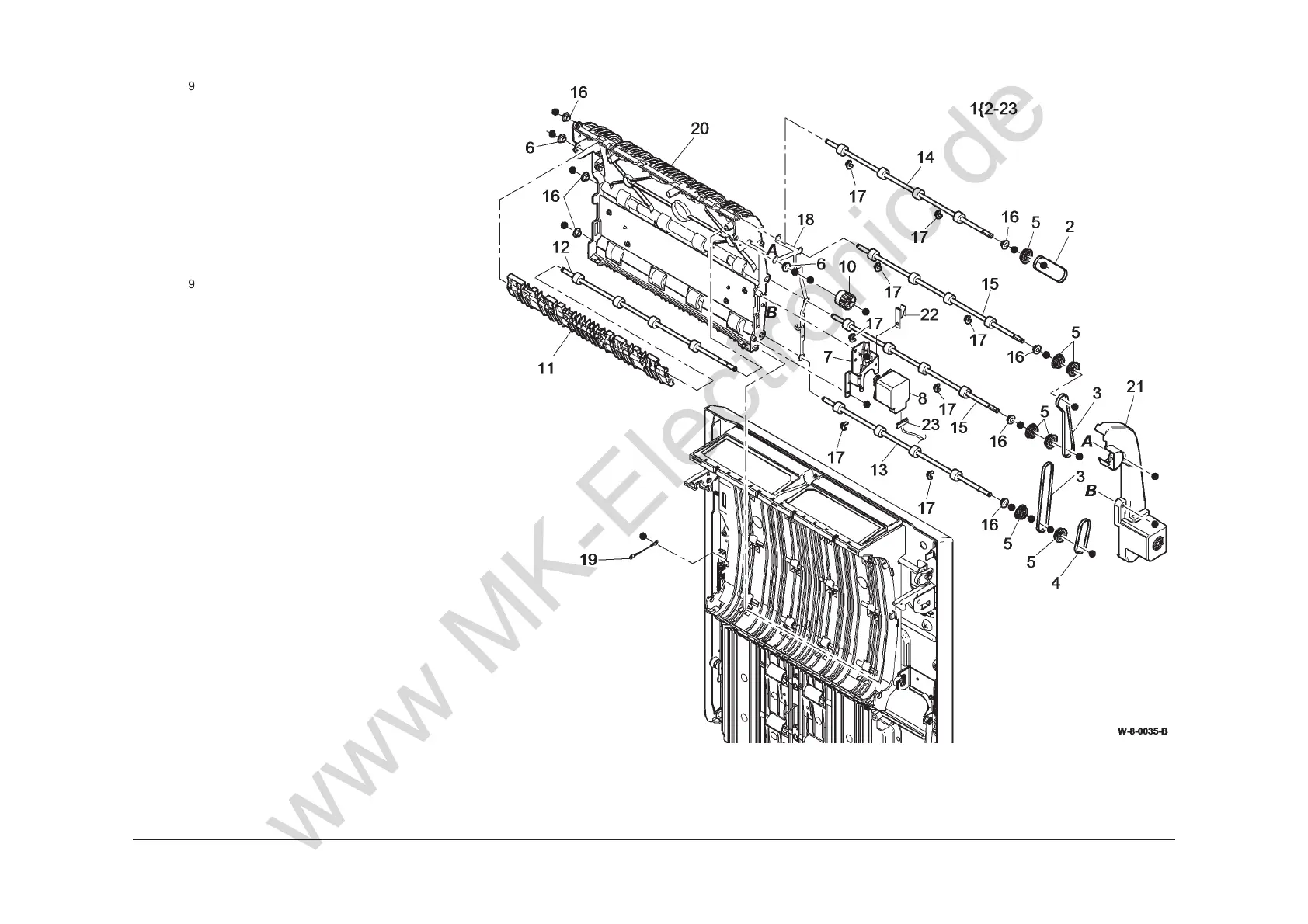

PL 80.22 Duplex Transport Assembly
Item Part Description
1
948K19001 Duplex transport assembly (REP
80.5)
2 – Drive belt (65T) (P/O PL 80.22
Item 1)
3 – Drive belt (89T) (P/O PL 80.22
Item 1)
4 – Drive belt (40T) (P/O PL 80.22
Item 1)
5 – Pulley (21T) (P/O PL 80.22 Item 1)
6 – Post fuser roll bearing (P/O PL
80.22 Item 1)
7 – Mounting bracket (Not Spared)
(REP 80.12)
8 927K02400 Duplex motor assembly (REP
80.12)
9 – Not used
10 – Gear (P/O PL 80.22 Item 1)
11 – Post fuser guide (P/O PL 80.22
Item 1)
12 – Post fuser roll (P/O PL 80.22 Item
1)
13 – Lower duplex roll (P/O PL 80.22
Item 1)
14 – Upper duplex roll (P/O PL 80.22
Item 1)
15 – Mid duplex roll (P/O PL 80.22 Item
1)
16 – Bearing (P/O PL 80.22 Item 1)
17 – Half bearing (P/O PL 80.22 Item 1)
18 – Ground strip (P/O PL 80.22 Item 1)
19 – Limiter (P/O PL 80.22 Item 1)
20 – Inner duplex door (P/O PL 80.22
Item 1)
21 – Duplex drives cover (P/O PL 80.10
Item 1)
22 – Ground contact strip (P/O PL 80.22
Item 1)
23 – Duplex motor harness (P/O PL
80.10 Item 14) (REP 80.33)
