Xerox® WorkCentre® 5945 Family
PL 28.10
Parts Lists

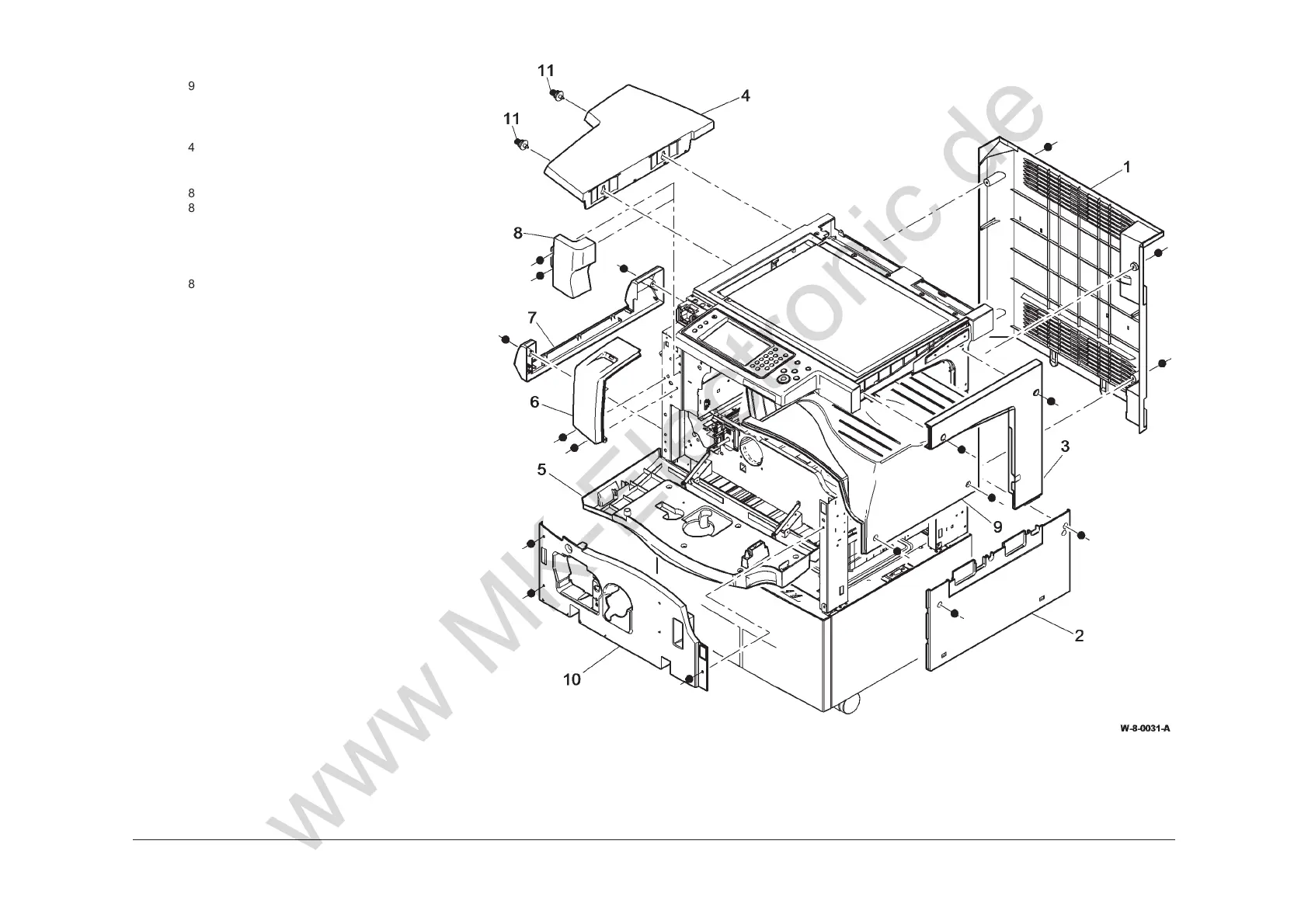

PL 28.10 Main Covers
Item Part Description
1
948K09122 Rear cover (REP 28.2)
2 – Right cover (Not Spared)
3 – Upper right cover (Not Spared)
(REP 28.1)
4 497K13840 Work shelf
5 – Front door assembly (REF: PL
28.11)
6 848E97367 Left frame cover (REP 28.1)
– 822E33500 Left frame cover (RFID)
7 – Bypass tray feedhead cover (P/O
PL 70.35 Item 1)
8 – Centre exit cover (Not Spared)
(REP 28.1)
9 848E97385 Centre output tray (REP 28.1)
– – Centre output tray (W/TAG 014) (P/
O PL 31.11 Item 9)
10 – Inner front cover (Not Spared)
11 – Thumbscrew (P/O PL 28.10 Item 4)
NOTE: Do not order 497/8K parts. 497/8K parts are customer
install kits and are shown for reference only.
