Xerox WorkCentre 5945

February 2016
5-79
Xerox® WorkCentre® 5945 Family
PL 70.18
Parts Lists

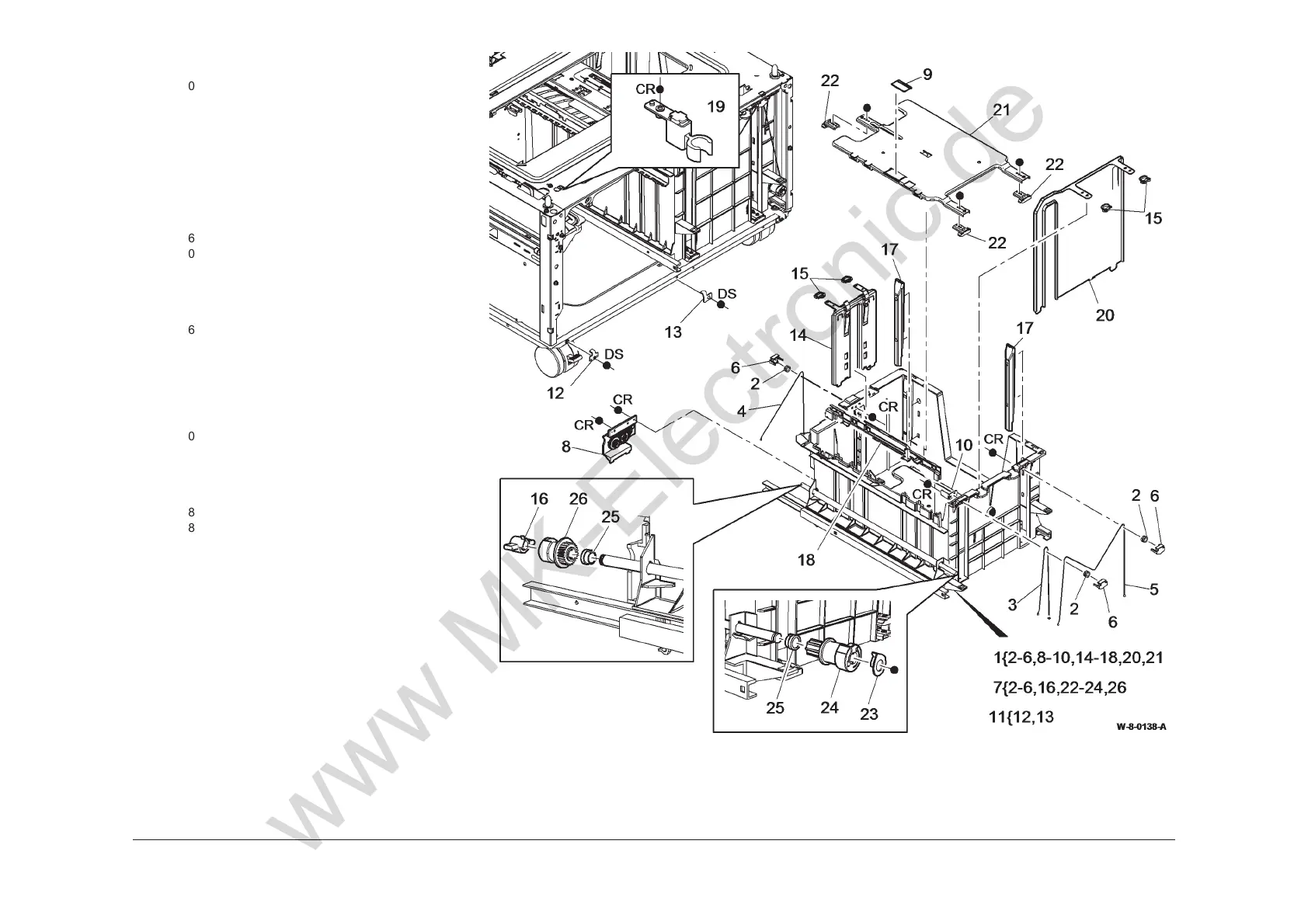

PL 70.18 Tray 3 Assembly
Item Part Description
1
050K77271 Tray 3 assembly (REP 70.5)
2 – Tray hoist pulley (P/O PL 70.18
Item 7)
3 – Front short elevator cable (P/O PL
70.18 Item 7)
4 – Rear elevator cable (P/O PL 70.18
Item 7)
5 – Front long elevator cable (P/O PL
70.18 Item 7)
6 – Pulley carrier (P/O PL 70.18 Item 7)
7 604K84091 Tray 3 elevator cable kit (REP 70.8)
8 004K07860 Tray 3 elevate damper assembly
(REP 70.11)
9 – Retard pad (Not Spared)
10 – Tray 3 skew bracket (P/O PL 31.14
Item 4) (See NOTE)
11 604K83671 Tray 3 and 4 clamp kit
12 – Side clamp (2 off) (P/O PL 70.18
Item 11)
13 – Centre clamp (P/O PL 70.18 Item
11)
14 – Rear paper guide (P/O PL 70.18
Item 1) (ADJ 70.1)
15 019E74532 Retaining clips
16 – Elevator drives gear coupling (P/O
PL 70.18 Item 7)
17 – Tray 3 paper guide (P/O PL 70.18
Item 1)
18 815E92301 Separation strip
19 819E20420 Front clip (ADJ 80.5)
20 – Front paper guide (P/O PL 70.18
Item 1) (ADJ 70.1)
21 – Lift plate (P/O PL 70.18 Item 1)
22 – Guide plate (P/O PL 70.18 Item 7)
23 – Spacer (P/O PL 70.18 Item 7)
24 – Elevator pulley (P/O PL 70.18 Item
7)
25 – Bearing (P/O PL 70.18 Item 1)
26 – Elevator gear (P/O PL 70.18 Item
7)
