Xerox WorkCentre 5945

February 2016
5-77
Xerox® WorkCentre® 5945 Family
PL 60.35
Parts Lists

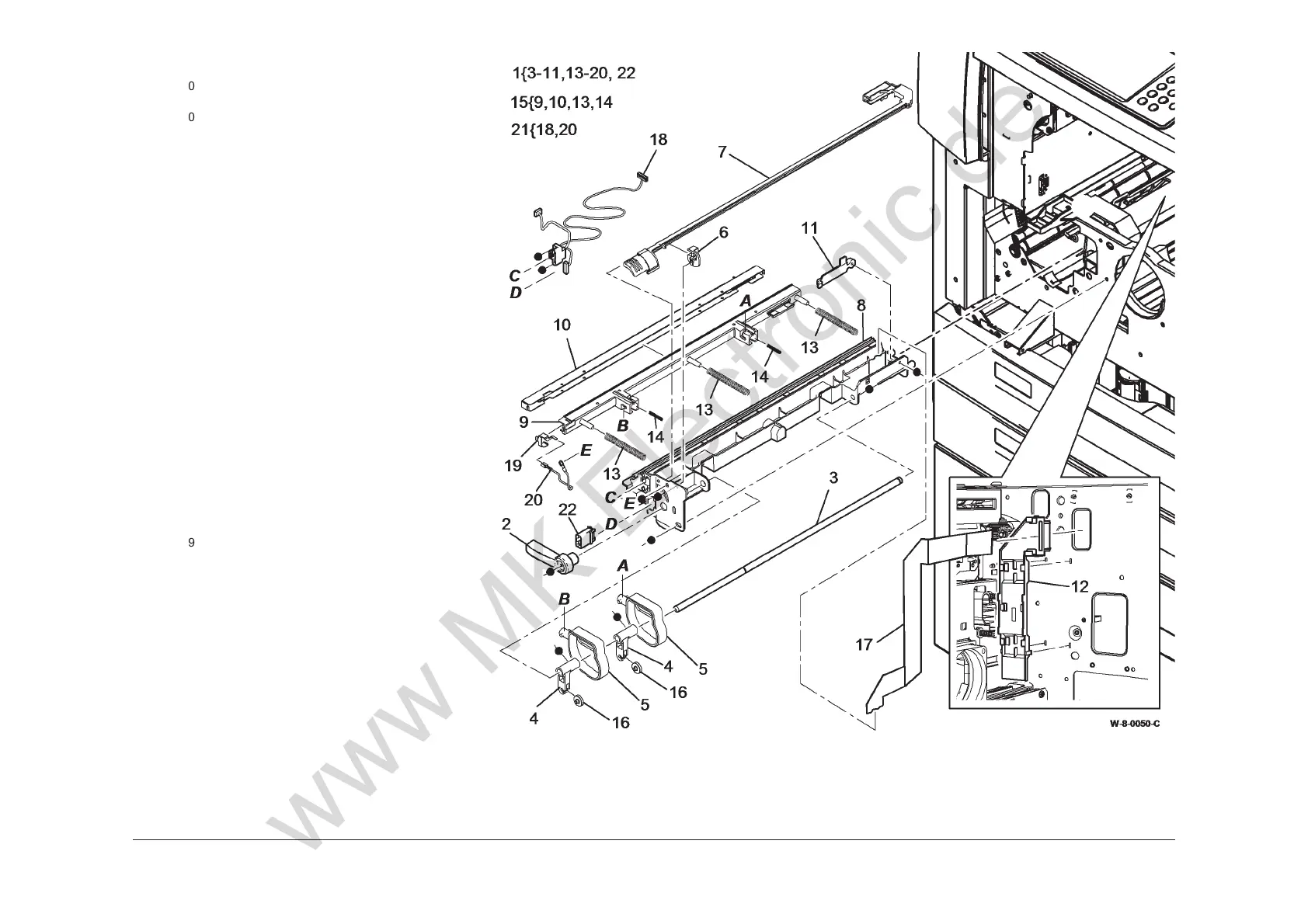

PL 60.35 LED Print Head Module
Item Part Description
1
008K02579 LED print head module (REP
60.15)
2 011E30932 Latch
3 – Cam shaft (P/O PL 60.35 Item 1)
4 – Cam (P/O PL 60.35 Item 1)
5 – Cam cover (P/O PL 60.35 Item 1)
6 – Locking bracket (P/O PL 60.35 Item
1)
7 – LED print head cleaner (P/O PL
60.35 Item 1)
8 – Housing (P/O PL 60.35 Item 1)
9 – LED carrier (P/O PL 60.35 Item 1)
10 – LED print head (P/O PL 60.35 Item
1)
11 – Cable clamp (P/O PL 60.35 Item 1)
12 – Ribbon cable support (Not Spared)
13 – LED spring (P/O PL 60.35 Item 1)
14 – Cam spring (P/O PL 60.35 Item 1)
15 – LED print head assembly (P/O PL
60.35 Item 1) (REP 60.15)
16 – Cam roller (P/O PL 60.35 Item 1)
17 – LED print head module to SBC
PWB ribbon cable (P/O PL 60.35
Item 1)
18 – CRUM connectors assembly (P/O
PL 60.35 Item 21) (REP 60.15)
19 – Retaining clip (P/O PL 60.35 Item
1)
20 – Grounding cable (P/O PL 60.35
Item 21)
21 952K37725 LED print head harness set
22 – Connector (P/O PL 60.35 Item 1)
NOTE: Refer to ADJ 60.4 for cleaning the LED print head.
