Xerox® WorkCentre® 5945 Family
PL 12.390
Parts Lists

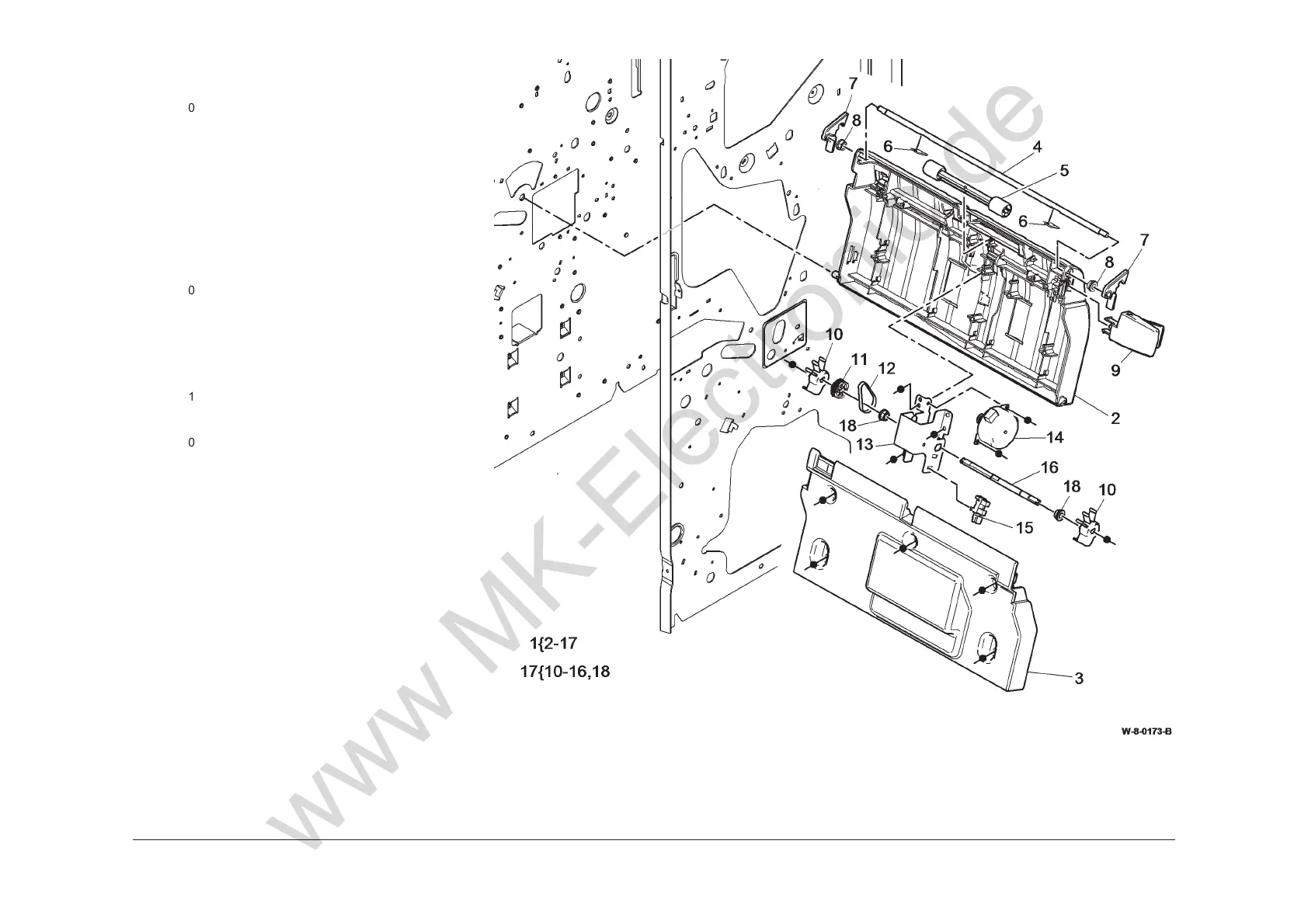

PL 12.390 LVF BM Compiler Guide
A
ssembly
Item Part Description
1
055K45240 BM compiler guide assembly (REP
12.30-150)
2 – Base (P/O PL 12.390 Item 1)
3 – Cover (P/O PL 12.390 Item 1)
4 – Shaft (P/O PL 12.390 Item 1)
5 – Idler roll assembly (P/O PL 12.390
Item 1)
6 – Static eliminator (P/O PL 12.390
Item 1)
7 – Latch (P/O PL 12.390 Item 1)
8 – Bearing (P/O PL 12.390 Item 1)
9 – Handle (P/O PL 12.390 Item 1)
10 033K05270 BM compiler flapper (REP 12.30-
150)
11 – Pulley (P/O PL 12.390 Item 1)
12 – Belt (P/O PL 12.390 Item 1)
13 – Bracket (P/O PL 12.390 Item 1)
14 – BM Flapper motor (MOT12-271)
(P/O PL 12.390 Item 1)
15 130E10360 BM Flapper home sensor (Q12-
207)
16 – Drive shaft (P/O PL 12.390 Item 1)
17 055K44530 BM Flapper motor assembly (REP
12.30-150)
18 – Bearing (P/O PL 12.390 Item 17)
