Xerox WorkCentre 5945 Service Manual

February 2016
5-37
Xerox® WorkCentre® 5945 Family
PL 12.320
Parts Lists

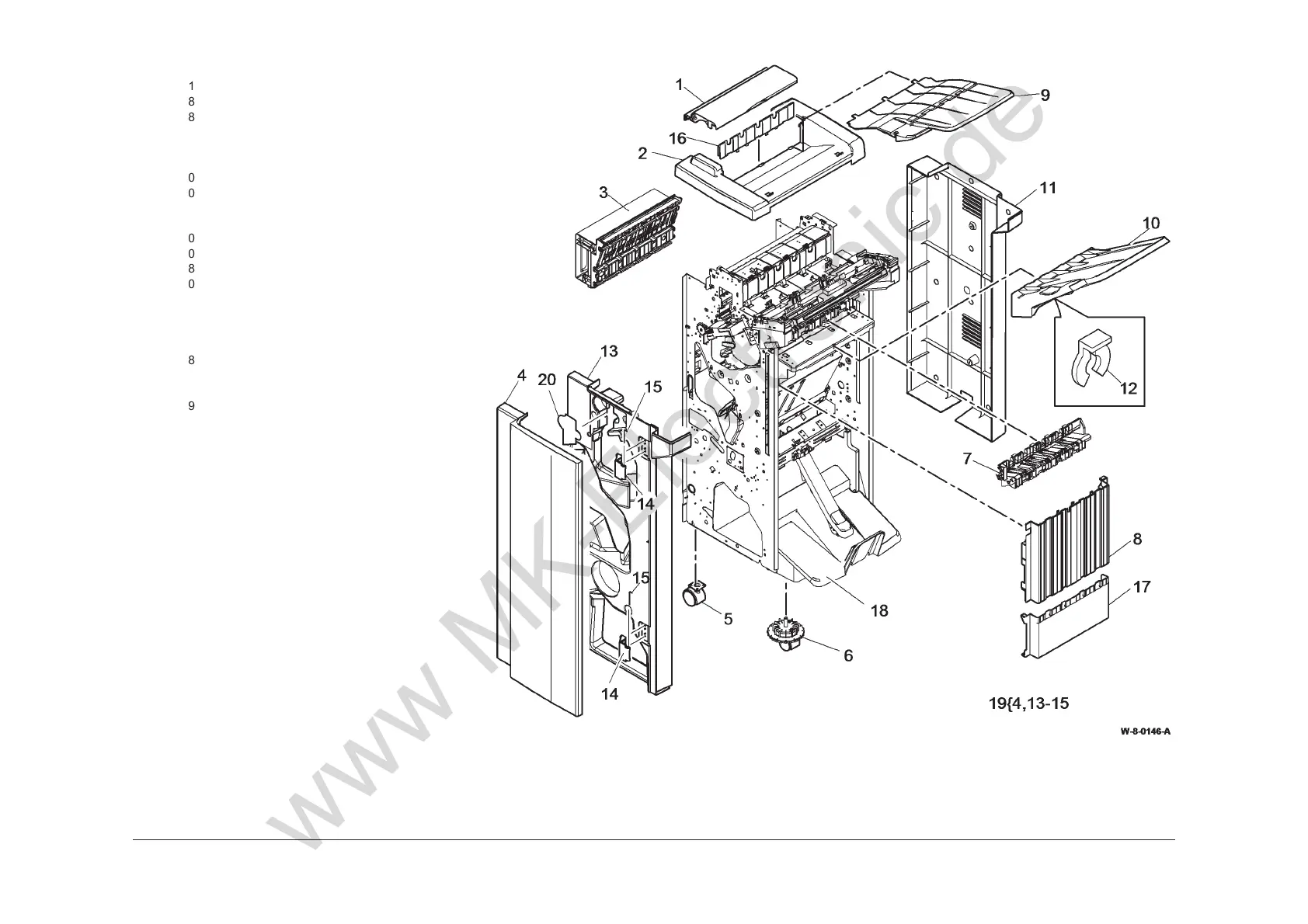

PL 12.320 LVF BM - Covers
Item Part Description
1
101E29920 Exit cover
2 848E97182 Top cover (REP 12.1-150)
3 848K83730 Entry guide cover assembly (REP
12.15-150)
4 – Front door (P/O PL 12.320 Item 19)
(REP 12.1-150)
5 017K03750 Fixed castor
6 017K04520 Adjustable castor
7 – Output cover (Not Spared)
8 – Right cover (Not Spared)
9 050K75970 Bin 0
10 050K75960 Bin 1 (ADJ 12.1-150)
11 848K98040 Rear cover (REP 12.1-150)
12 019K13380 Bin 1 alignment clip
13 – Front cover assembly (P/O PL
12.320 Item 19)
14 – Hinge (P/O PL 12.320 Item 19)
15 – Hinge pin (P/O PL 12.320 Item 19)
16 848E97200 Top centre cover
17 – Lower right cover (REP 12.45-150)
18 – Bin 2 (Not Spared)
19 948K08020 Front door cover assembly (REP
12.1-150)
20 – Hole punch assembly cover (Not
Spared)
NOTE: Refer to ADJ 12.2-150 to align the LVF BM to the
machine.
