Xerox WorkCentre 5945

February 2016
5-96
Xerox® WorkCentre® 5945 Family
PL 90.17
Parts Lists

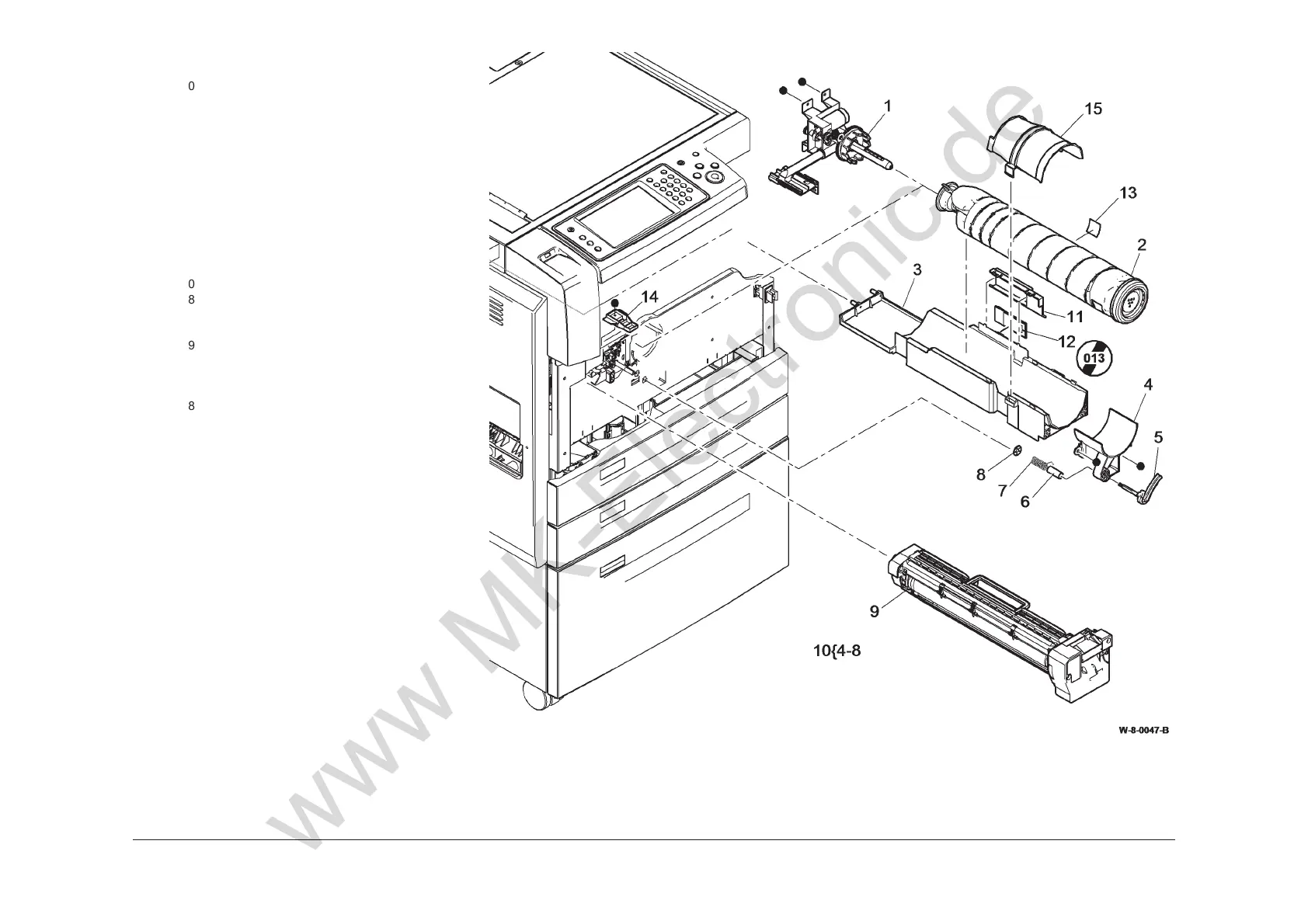

PL 90.17 Toner/Print Cartridges
Item Part Description
1
094K05506 Toner dispense module (REP 90.1)
2 – Toner cartridge (REF: PL 26.11
Item 3)
3 – Toner cartridge housing (Not
Spared)
4 – Latch housing (P/O PL 90.17 Item
10)
5 – Toner dispense latch (P/O PL 90.17
Item 10)
6 – Sleeve (P/O PL 90.17 Item 10)
7 – Spring (P/O PL 90.17 Item 10)
8 – Push on fastener (P/O PL 90.17
Item 10)
9 013R00669 Print cartridge
10 848K94673 Latch housing assembly (REP
90.2)
11 – Cover (Not Spared)
12 960K25380 Toner cartridge PWB (W/O TAG
013)
13 – Toner cartridge CRUM (Not
Spared)
14 869E05955 Latch bracket
15 – Toner cartridge guide (Not Spared)
NOTE: Refer to ADJ 90.1 for xerographics cleaning.
