Xerox® WorkCentre® 5945 Family
PL 12.415
Parts Lists

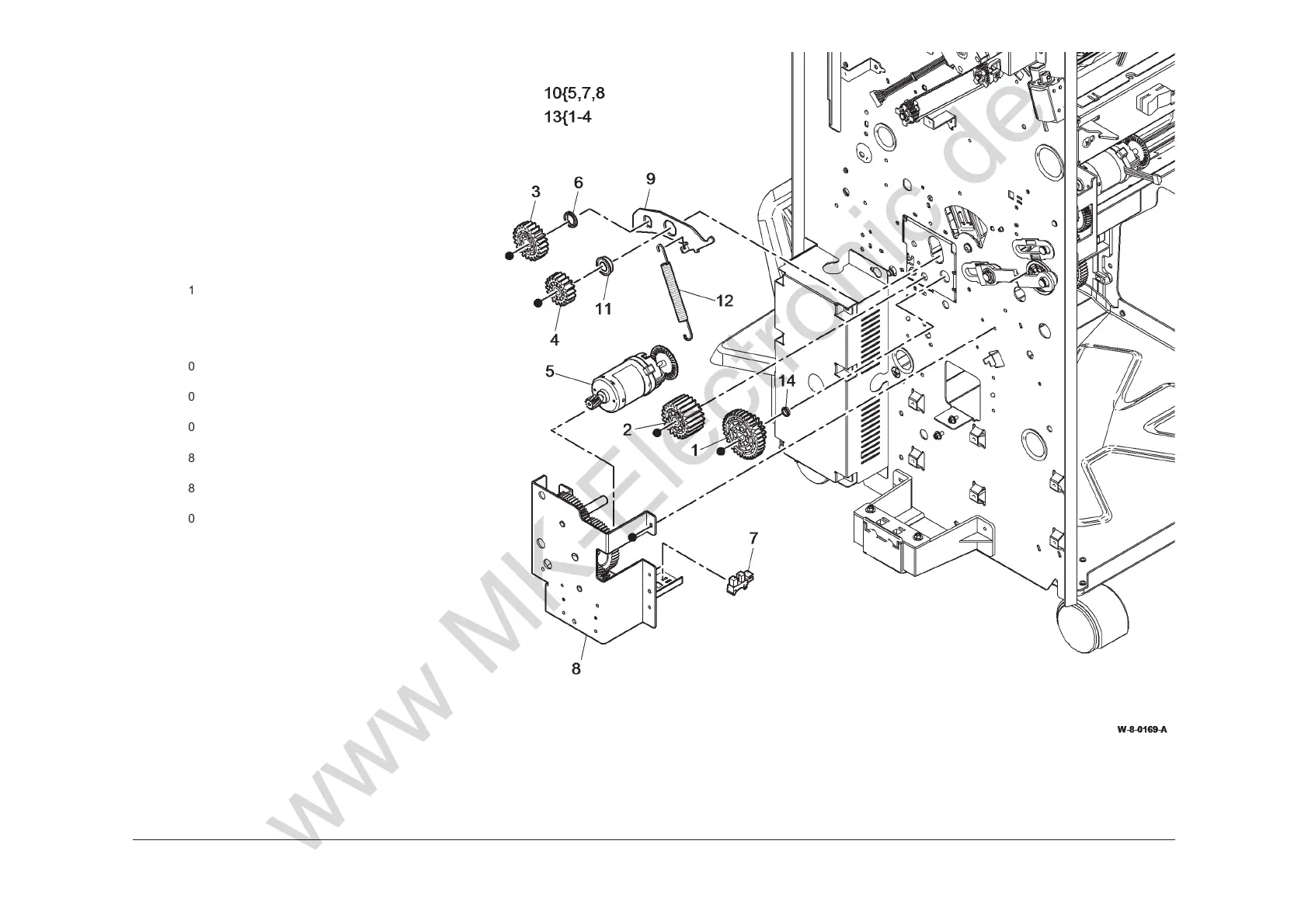

PL 12.415 LVF BM Crease Roll
A
ssembly (2 of 3)
Item Part Description
1
– Crease roll gear 1 (P/O PL 12.415
Item 13) (REP 12.26-150)
2 – Crease roll gear 2 (P/O PL 12.415
Item 13) (REP 12.26-150)
3 – Crease roll gear 3 (P/O PL 12.415
Item 13) (REP 12.26-150)
4 – Crease roll gear 4 (P/O PL 12.415
Item 13) (REP 12.26-150)
5 – BM Crease roll motor (MOT12-253)
(P/O PL 12.415 Item 10) (REP
12.25-150)
6 – Spacer (Not Spared)
7 130E10360 BM crease roll motor encoder
sensor (Q12-216) (REP 12.25-
150)
8 – Crease roll gearbox assembly (P/O
PL 12.415 Item 10)
9 031E16720 Rear crease roll lever (REP 12.24-
150)
10 007K20520 Crease roll motor and gearbox
assembly (REP 12.25-150)
11 013E43940 Crease roll bearing (REP 12.24-
150)
12 899E07760 Crease roll spring (x2) (REP 12.24-
150)
13 807E46770 Crease roll gear kit (REP 12.26-
150)
14 013E43930 Lower crease roll bearing
