Xerox WorkCentre 5945

February 2016
5-8
Xerox® WorkCentre® 5945 Family
PL 5.10
Parts Lists

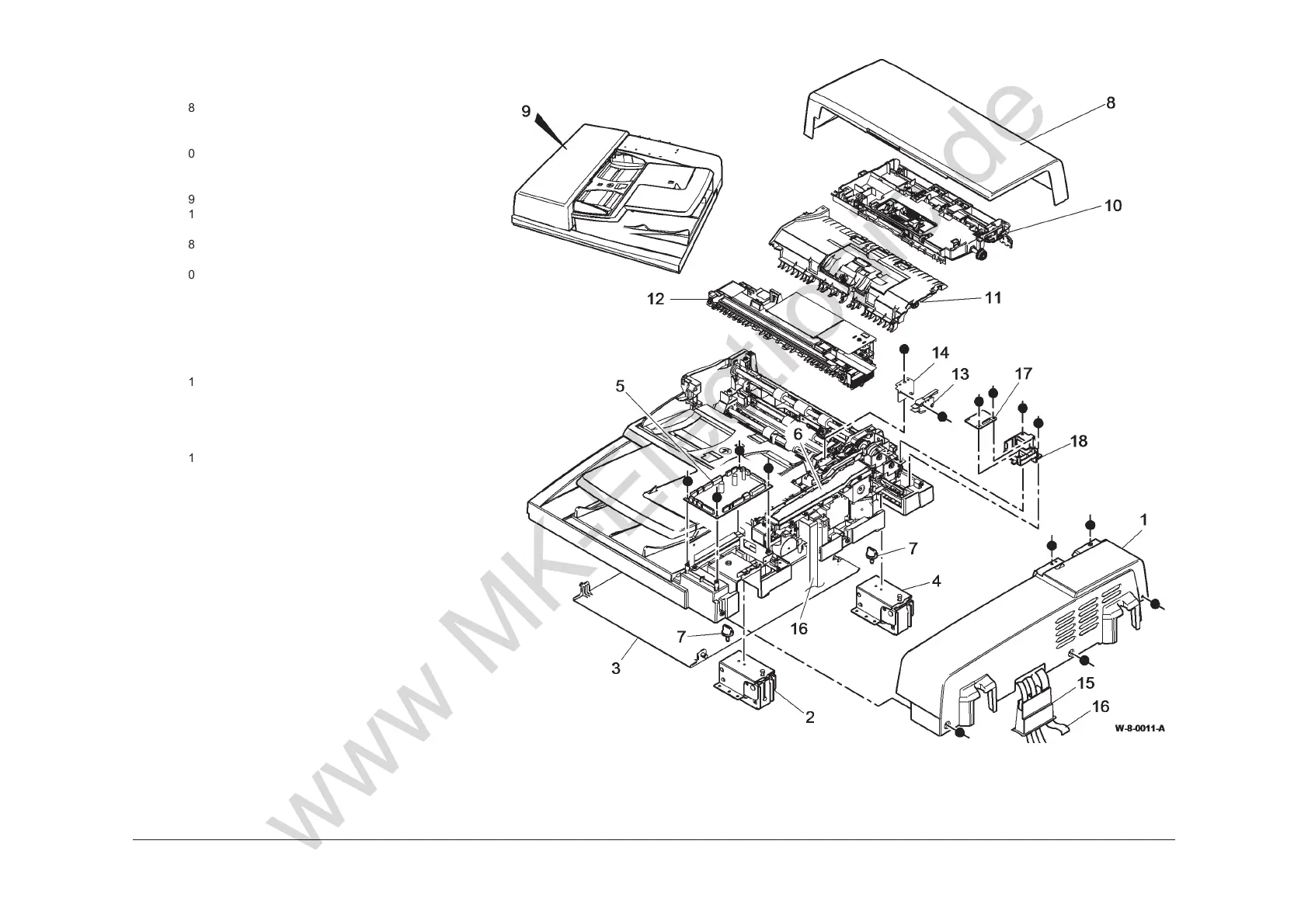

PL 5.10 SPDH (Complete), Covers,
S
PDH PWB
Item Part Description
1
848K83770 Rear cover
2 – Right counterbalance (Not Spared)
(ADJ 5.2, ADJ 5.3)
3 090K02600 Document pad (REP 5.23)
4 – Left counterbalance (Not Spared)
(ADJ 5.2, ADJ 5.3)
5 960K72570 SPDH PWB
6 117E43830 Side 2 scan assembly power ribbon
cable (REP 5.22)
7 826E66710 Thumbscrew
8 – Top cover (REF: PL 5.20)
9 084K42695 SPDH (complete) (REP 5.19)
10 – Feed assembly (REF: PL 5.20)
(ADJ 5.3)
11 – Separation assembly (REF: PL
5.25)
12 – Side 2 scan assembly (REF: PL
60.30)
13 110E21490 Top cover interlock switch (S05-
305)
14 – Mounting bracket (P/O PL 5.10
Item 13)
15 – Harness guide (REF: PL 60.15)
16 117E43800 Side 2 scan assembly data ribbon
cable (REP 5.22)
17 – Side 2 LED drive PWB (Not
Spared)
18 – Side 2 LED drive PWB support (P/
O PL 5.10 Item 9)
NOTE: To clean the SPDH, refer to ADJ 5.4.
