Xerox WorkCentre 5945

February 2016
5-81
Xerox® WorkCentre® 5945 Family
PL 70.21
Parts Lists

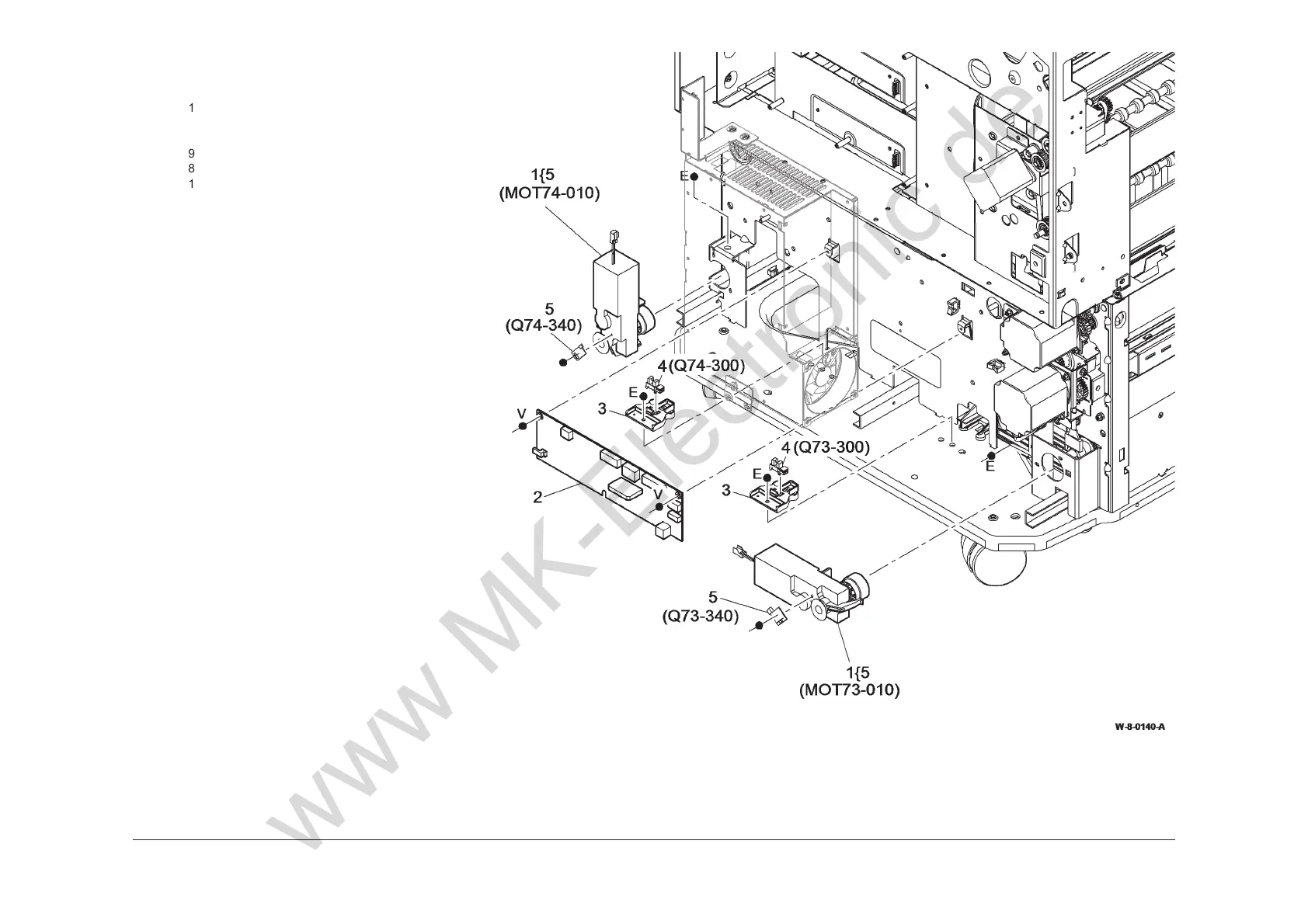

PL 70.21 Elevator Motor and Control
P
WB
Item Part Description
1
127K78351 Tray 3 elevator motor (MOT73-010)
(REP 70.6)/ Tray 4 elevator motor
(MOT74-010) (See NOTE)
2 960K80832 Tray 4 control PWB (REP 70.13)
3 819E21570 Sensor holder
4 130E18220 Tray 3 home sensor (Q73-300)/
Tray 4 home sensor (Q74-300)
(REP 70.10)
5 – Tray 3 level encoder sensor (Q73-
340)/ Tray 4 level encoder sensor
(Q74-340) (P/O PL 70.21 Item 1)
NOTE: To remove tray 4 elevator motor W/O TAG 009 refer
to REP 70.15. To remove tray 4 elevator motor W/TAG 009
refer to REP 70.19.
