Xerox WorkCentre 5945

February 2016
5-92
Xerox® WorkCentre® 5945 Family
PL 80.33
Parts Lists

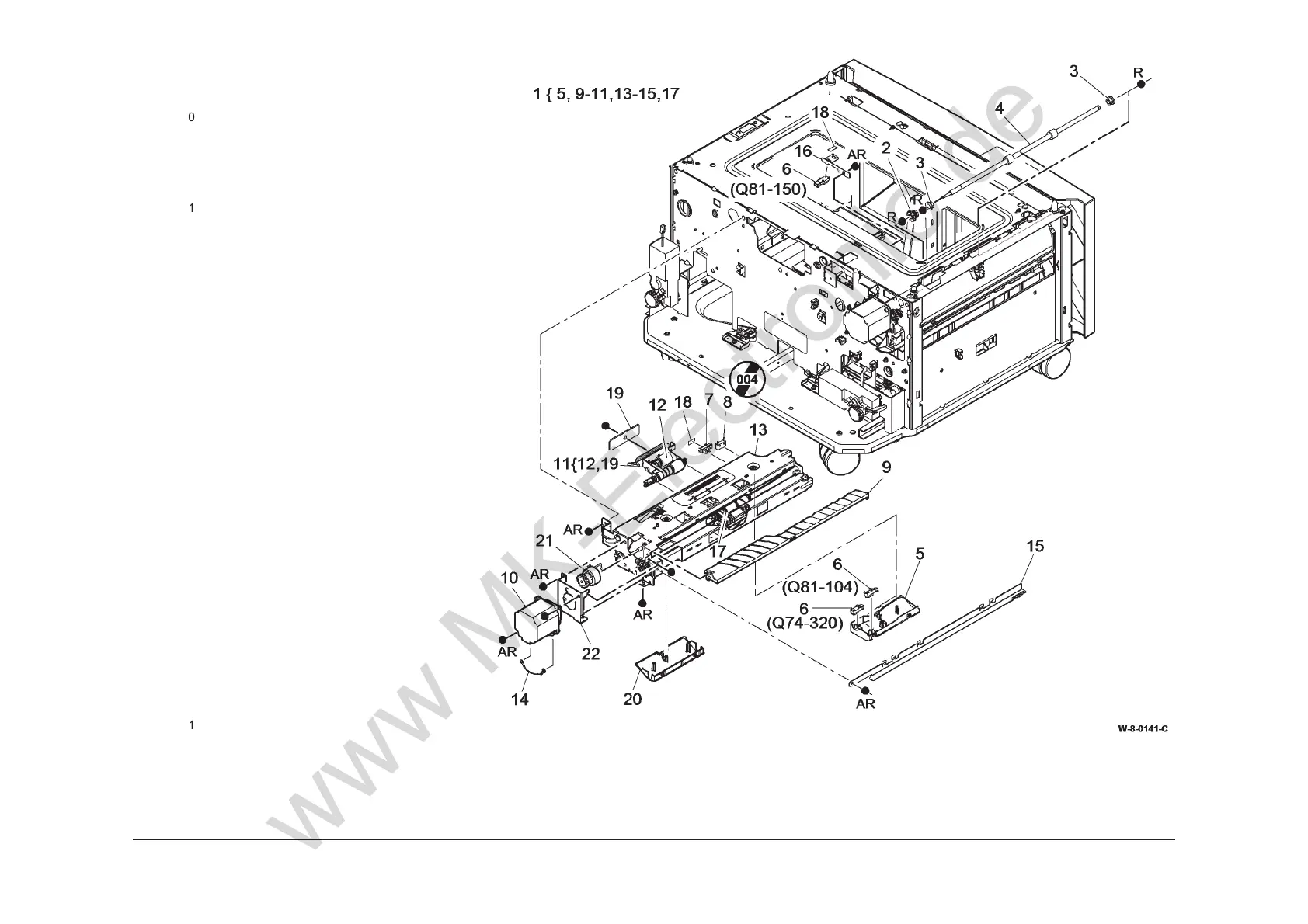

PL 80.33 Tray 4 Paper Feed Assembly
Item Part Description
1
– Tray 4 paper feed assembly (P/O
PL 31.12 Item 6) (REP 80.21)
2 007K20321 Gear (See NOTE 2) (REP 80.27)
3 – Bearing (P/O PL 31.11 Item 8)
4 – HCF transport roll (P/O PL 31.11
Item 8) (REP 80.27)
5 – Sensor mounting (P/O PL 80.33
Item 1)
6 130E11610 Tray 4 empty sensor (Q74-320)
(REP 70.17)/Tray 4 feed sensor
(Q81-104) (REP 80.14)/Tray 4 exit
sensor (Q81-150) (REP 80.25)
7 – Tray 4 stack height sensor (Q74-
330) (P/O PL 31.12 Item 16) (REP
70.9)
8 – Tray 4 over elevate switch (Not
Spared) (W/O TAG 004)
9 – Tray 4 paper guide (P/O PL 80.33
Item 1) (REP 80.29)
10 – Tray 4 feed motor (MOT81-040)
(P/O PL 80.33 Item 1)
11 – Feed roll assembly (P/O PL 31.12
Item 15) (See NOTE 1) (REP
80.17)
12 – Nudger roll (P/O PL 80.33 Item 11)
(REP 80.17, ADJ 80.1)
13 – Feed frame assembly (P/O PL
80.33 Item 1)
14 – Ground cable (P/O PL 80.33 Item
1)
15 – Support bracket (P/O PL 80.33 Item
1)
16 – Tray 4 exit sensor bracket (Not
Spared) (REP 80.25)
17 – Retard roll (P/O PL 31.12 Item 15)
(See NOTE 1) (REP 80.17, ADJ
80.3)
18 – Shim (P/O PL 31.12 Item 16)
19 – Nudger roll weight (P/O PL 80.33
Item 11) (ADJ 80.1)
20 – Gull wing cover (P/O PL 31.14 Item
4)
21 121E27552 Feed clutch (REP 80.32)
22 – Bracket (P/O PL 80.33 Item 1)
NOTE: 1. HFSI. To reset the HFSI count, refer to dC135
NOTE: 2. Also part of the Transport motor and drives kit, PL
80.36 Item 16.
