Xerox WorkCentre 5945 Service Manual

February 2016
5-7
Xerox® WorkCentre® 5945 Family
PL 3.22
Parts Lists

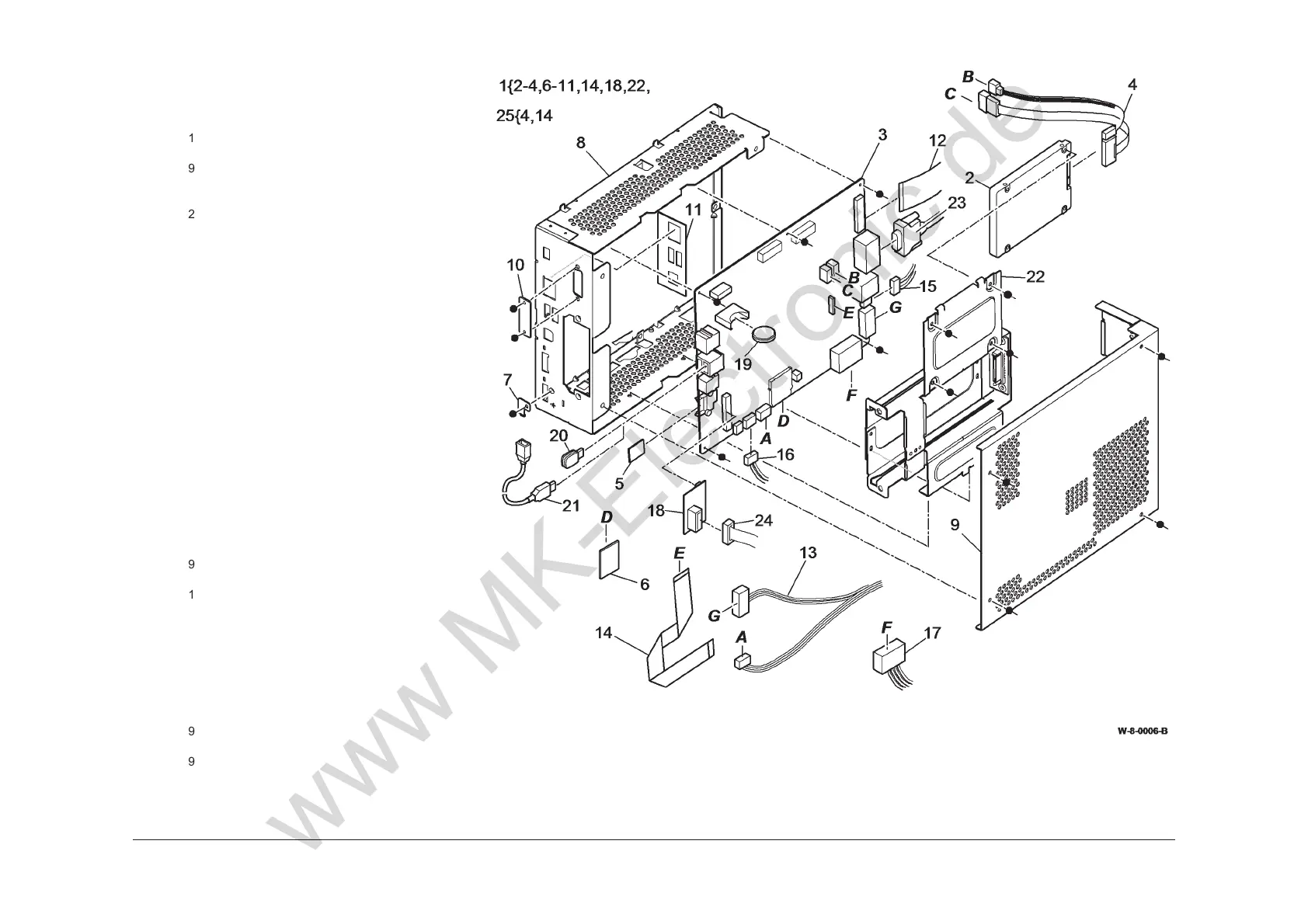

PL 3.22 Single Board Controller PWB
M
odule
Item Part Description
1
– Single board controller module (Not
Spared) (REP 3.6)
2 121E28131 Hard disk drive (250Gb) (See
NOTE 2) (REP 3.2)
3 960K85508 SBC PWB (REP 3.3)
4 – HDD cable (P/O PL 3.22 Item 25)
5 – SIM card (P/O PL 31.14 Item 2)
6 237E27477 SD card (See NOTE 2) (REP 3.4)
7 – Service connector cover (P/O PL
3.22 Item 1)
8 – SBC cage (P/O PL 3.22 Item 1)
9 – SBC cover (P/O PL 3.22 Item 1)
10 – Foreign interface device blanking
plate (P/O PL 3.22 Item 1)
11 – Gasket (P/O PL 3.22 Item 1)
12 – LED print head module to SBC
PWB ribbon cable (P/O PL 60.35
Item 1)
13 – SBC PWB to Scanner PWB power/
comms harness (REF: PL 60.20
Item 5)
14 – SBC PWB to Fax connector PWB
ribbon cable (P/O PL 3.22 Item 25)
15 – SBC PWB to UI control PWB
power/comms harness (Not
Spared)
16 – SBC PWB to IOT PWB harness
(Not Spared)
17 – SBC PWB to LVPS harness (P/O
PL 1.10 Item 24)
18 960K27451 Foreign device interface PWB (See
NOTE 1) (REP 3.5)
19 105K37230 Battery
20 – Wireless network adapter (P/O PL
31.12 Item 10)
21 – Extension cable (P/O PL 31.12 Item
10)
22 – Fax module support (P/O PL 3.22
Item 1)
23 – SBC PWB to Scanner PWB data
cable (REF: PL 60.20 Item 22)
24 952K40550 Foreign device interface ribbon
cable (REP 3.5)
25 952K37741 SBC harness set
NOTE: 1. Also supplied as part of PL 31.12 Item 11.
NOTE: 2. Refer to GP 41.
www MK-Electronic de

Xerox WorkCentre 5945 Specifications

General

Print Technology	Laser
Print Speed	Up to 45 ppm
Maximum Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Maximum Scan Resolution	600 x 600 dpi
Functions	Print, Copy, Scan, Fax
Copy Speed	Up to 45 cpm
Copy Resolution	600 x 600 dpi
Processor	1.2 GHz Dual-core
Memory	2 GB
Fax	Optional
Fax Transmission Speed	33.6 Kbps
Maximum Paper Size	A3
Connectivity	USB, Ethernet
Paper Size	A4, A5
PDL	PCL6, PDF, XPS, TIFF, JPEG
Mobile Printing	Apple AirPrint
Dimensions	640 x 700 x 1140 mm
Scanner Type	ADF, Flatbed
Weight	Approx. 172.0 lb / 78 kg
