Xerox WorkCentre 5945 Service Manual

February 2016
5-85
Xerox® WorkCentre® 5945 Family
PL 80.11
Parts Lists

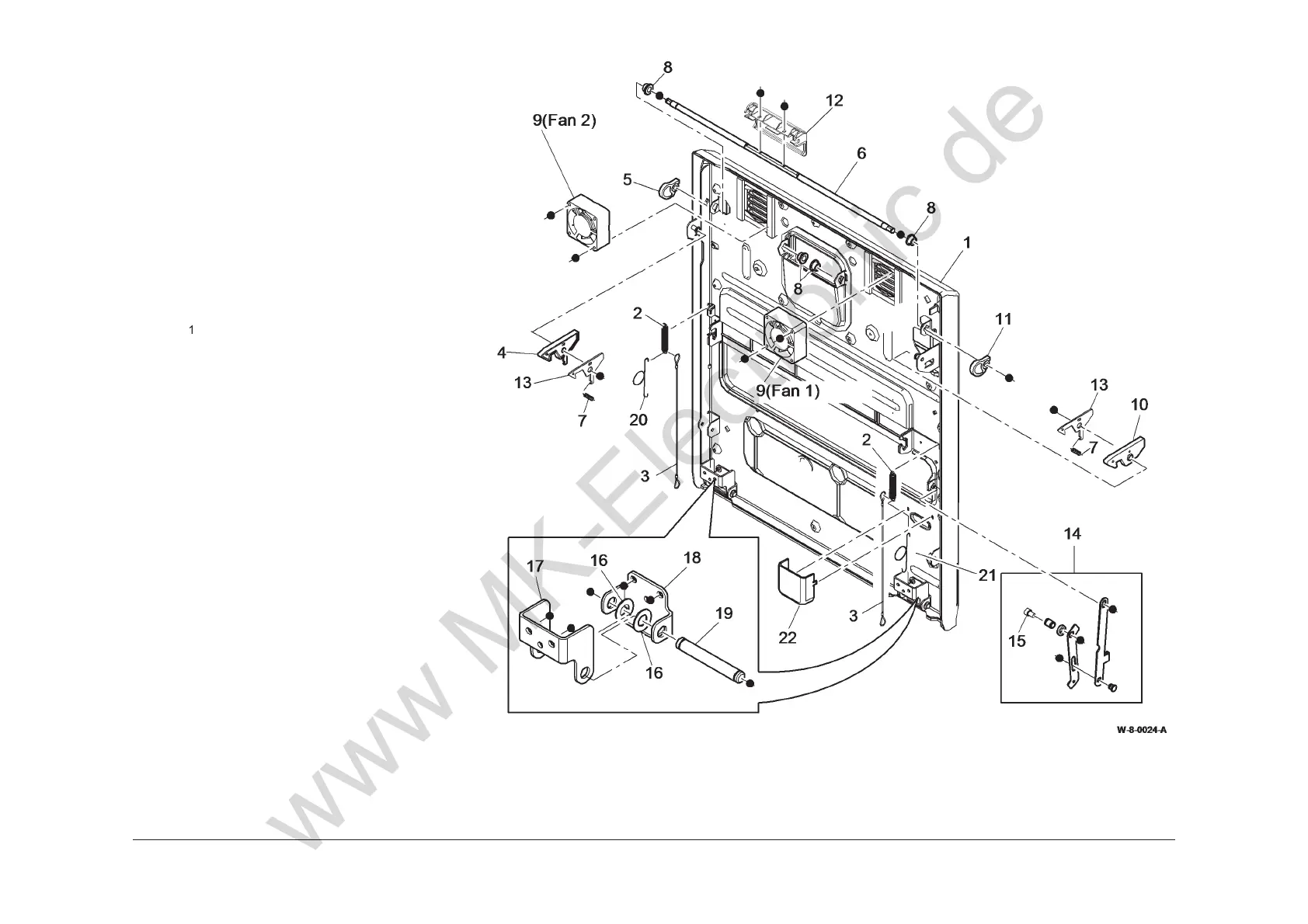

PL 80.11 Left Door Assembly (2 of 2)
Item Part Description
1
– Left door frame and cover
assembly (P/O PL 80.10 Item 1)
(REP 80.13)
2 – Damper spring (P/O PL 31.14 Item
3)
3 – Damper cable (P/O PL 31.14 Item
3)
4 – Front latch (P/O PL 80.10 Item 1)
(REP 80.11)
5 – Front latch cam (P/O PL 80.10 Item
1)
6 – Latch handle shaft (P/O PL 80.10
Item 1)
7 – Latch spring (P/O PL 80.10 Item 1)
(REP 80.11)
8 – Bearing (P/O PL 80.10 Item 1)
9 127E17991 Left door fan 1 / Left door fan 2
(MOT80-015) (REP 80.35)
10 – Rear latch (P/O PL 80.10 Item 1)
(REP 80.11)
11 – Rear latch cam (P/O PL 80.10 Item
1)
12 – Latch handle (P/O PL 80.10 Item 1)
13 – Door latch plate (P/O PL 80.10 Item
1) (REP 80.11)
14 – Door link assembly (P/O PL 31.14
Item 3)
15 – Door link locking screw (P/O PL
80.10 Item 1)
16 – Plastic washer (P/O PL 80.10 Item
1)
17 – Hinge support bracket (P/O PL
80.10 Item 1)
18 – Hinge bracket (P/O PL 80.10 Item
1)
19 – Hinge pin (P/O PL 80.10 Item 1)
20 – Front damper spring tensioner tool
(P/O PL 31.14 Item 7) (See NOTE)
21 – Rear damper spring tensioner tool
(P/O PL 31.14 Item 7) (See NOTE)
22 – Connector cover (P/O PL 80.10
Item 1)
NOTE: Refer to GP 37 for correct use of these tools when
removing left door assembly.
www MK-Electronic de

Xerox WorkCentre 5945 Specifications

General

Print Technology	Laser
Print Speed	Up to 45 ppm
Maximum Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Maximum Scan Resolution	600 x 600 dpi
Functions	Print, Copy, Scan, Fax
Copy Speed	Up to 45 cpm
Copy Resolution	600 x 600 dpi
Processor	1.2 GHz Dual-core
Memory	2 GB
Fax	Optional
Fax Transmission Speed	33.6 Kbps
Maximum Paper Size	A3
Connectivity	USB, Ethernet
Paper Size	A4, A5
PDL	PCL6, PDF, XPS, TIFF, JPEG
Mobile Printing	Apple AirPrint
Dimensions	640 x 700 x 1140 mm
Scanner Type	ADF, Flatbed
Weight	Approx. 172.0 lb / 78 kg
