Xerox WorkCentre 5945 Service Manual

February 2016
5-17
Xerox® WorkCentre® 5945 Family
PL 10.11
Parts Lists

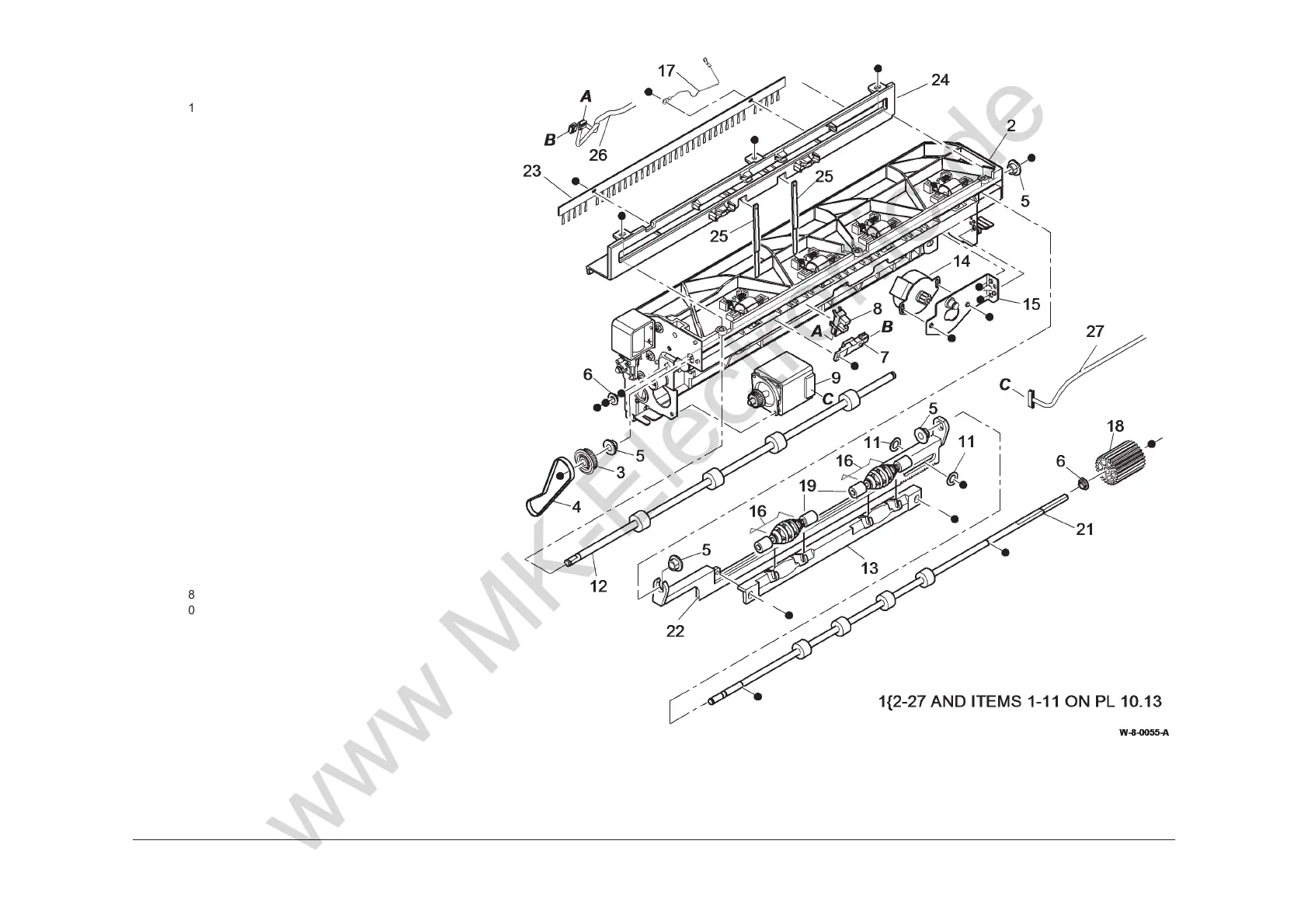

PL 10.11 Inverter Assembly (Centre
O
utput Tray) (2 of 4)
Item Part Description
1
112K01219 Inverter assembly (REP 10.1)
2 – Exit guide housing (P/O PL 10.11
Item 1)
3 – Pulley (21T) (P/O PL 10.11 Item 1)
4 – Drive belt (P/O PL 10.11 Item 1)
5 – Bearing (P/O PL 10.11 Item 1)
(REP 10.5)
6 – Shaft bearing (P/O PL 10.11 Item 1)
(REP 10.5)
7 – Post fuser sensor (Q10-120) (P/O
PL 10.11 Item 1)
8 – Offset sensor (Q10-300) (P/O PL
10.11 Item 1)
9 – Inverter motor (MOT10-030) (P/O
PL 10.11 Item 1) (REP 10.3)
10 – Not used
11 – Locking washer (P/O PL 10.11 Item
1)
12 – Drive roll (P/O PL 10.11 Item 1)
13 – Corrugator roll support (P/O PL
10.11 Item 1)
14 – Offset motor (MOT10-500) (P/O PL
10.11 Item 1) (REP 10.4)
15 – Offset motor bracket (P/O PL 10.11
Item 1)
16 – Nip spring (P/O PL 10.11 Item 1)
17 – Ground wire (P/O PL 10.11 Item 1)
18 – Exit drive gear (P/O PL 10.11 Item
1) (REP 10.5)
19 – Corrugator roll (P/O PL 10.11 Item
1) (REP 10.5)
20 – Not used
21 806E44797 Exit roll (REP 10.5)
22 059E12307 Shuttle (REP 10.5)
23 – Static eliminator (P/O PL 10.11 Item
1)
24 – Inverter cover (P/O PL 10.11 Item
1)
25 – Bail arm assembly (P/O PL 10.11
Item 1)
26 – Sensor harness (P/O PL 1.10 Item
24)
27 – Inverter motor harness (P/O PL
1.10 Item 24)
www MK-Electronic de

Xerox WorkCentre 5945 Specifications

General

Print Technology	Laser
Print Speed	Up to 45 ppm
Maximum Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Maximum Scan Resolution	600 x 600 dpi
Functions	Print, Copy, Scan, Fax
Copy Speed	Up to 45 cpm
Copy Resolution	600 x 600 dpi
Processor	1.2 GHz Dual-core
Memory	2 GB
Fax	Optional
Fax Transmission Speed	33.6 Kbps
Maximum Paper Size	A3
Connectivity	USB, Ethernet
Paper Size	A4, A5
PDL	PCL6, PDF, XPS, TIFF, JPEG
Mobile Printing	Apple AirPrint
Dimensions	640 x 700 x 1140 mm
Scanner Type	ADF, Flatbed
Weight	Approx. 172.0 lb / 78 kg
