Xerox WorkCentre 5945

February 2016
5-65
Xerox® WorkCentre® 5945 Family
PL 28.11
Parts Lists

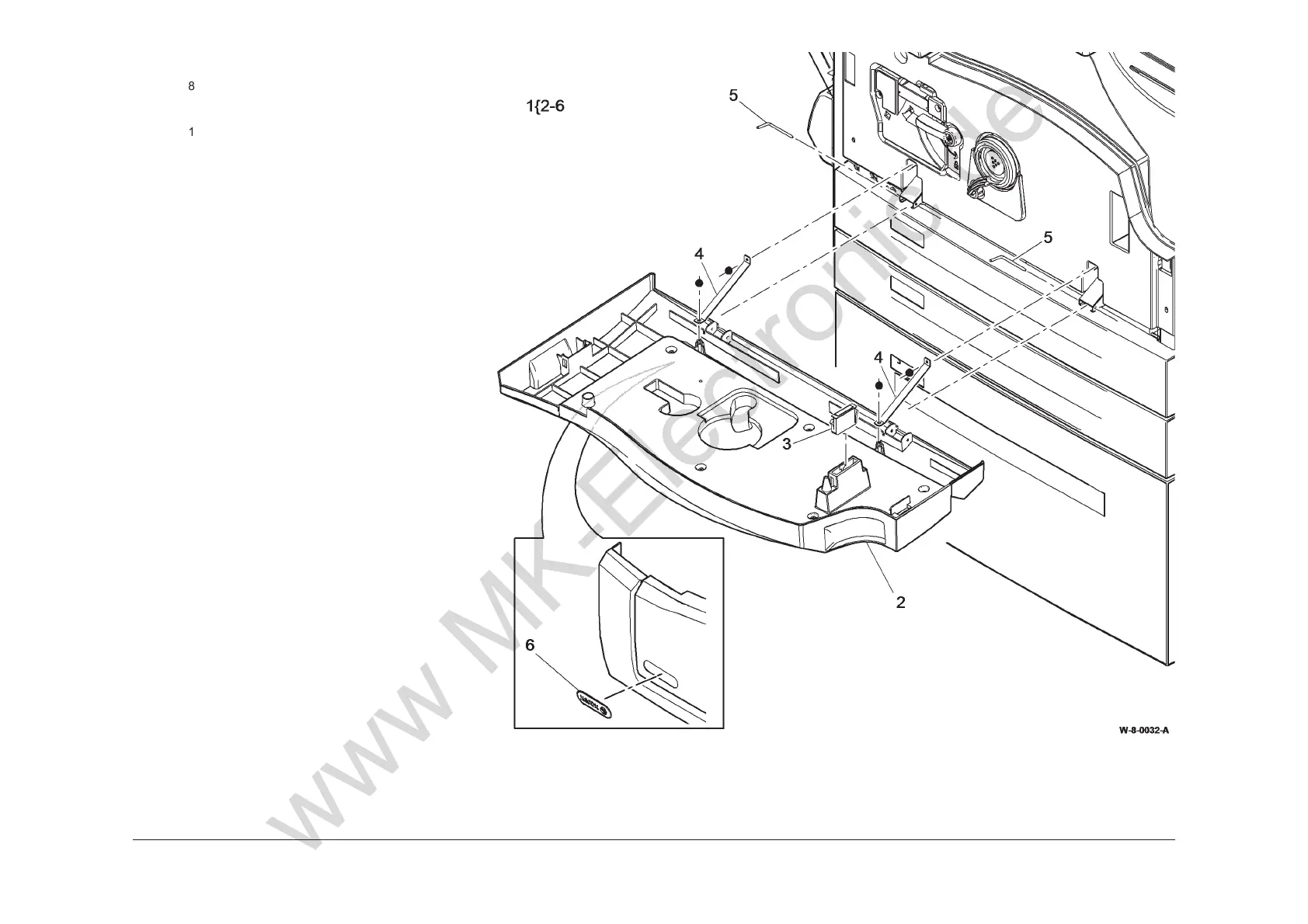

PL 28.11 Front Door Assembly
Item Part Description
1
848K94709 Front door assembly
2 – Front cover assembly (P/O PL
28.11 Item 1)
3 121E25720 Magnet
4 – Front door strap (P/O PL 28.11 Item
1)
5 – Door hinge pin (P/O PL 28.11 Item
1)
6 – Logo badge (P/O PL 28.11 Item 1)
