Xerox WorkCentre 5945 Service Manual

February 2016
5-39
Xerox® WorkCentre® 5945 Family
PL 12.330
Parts Lists

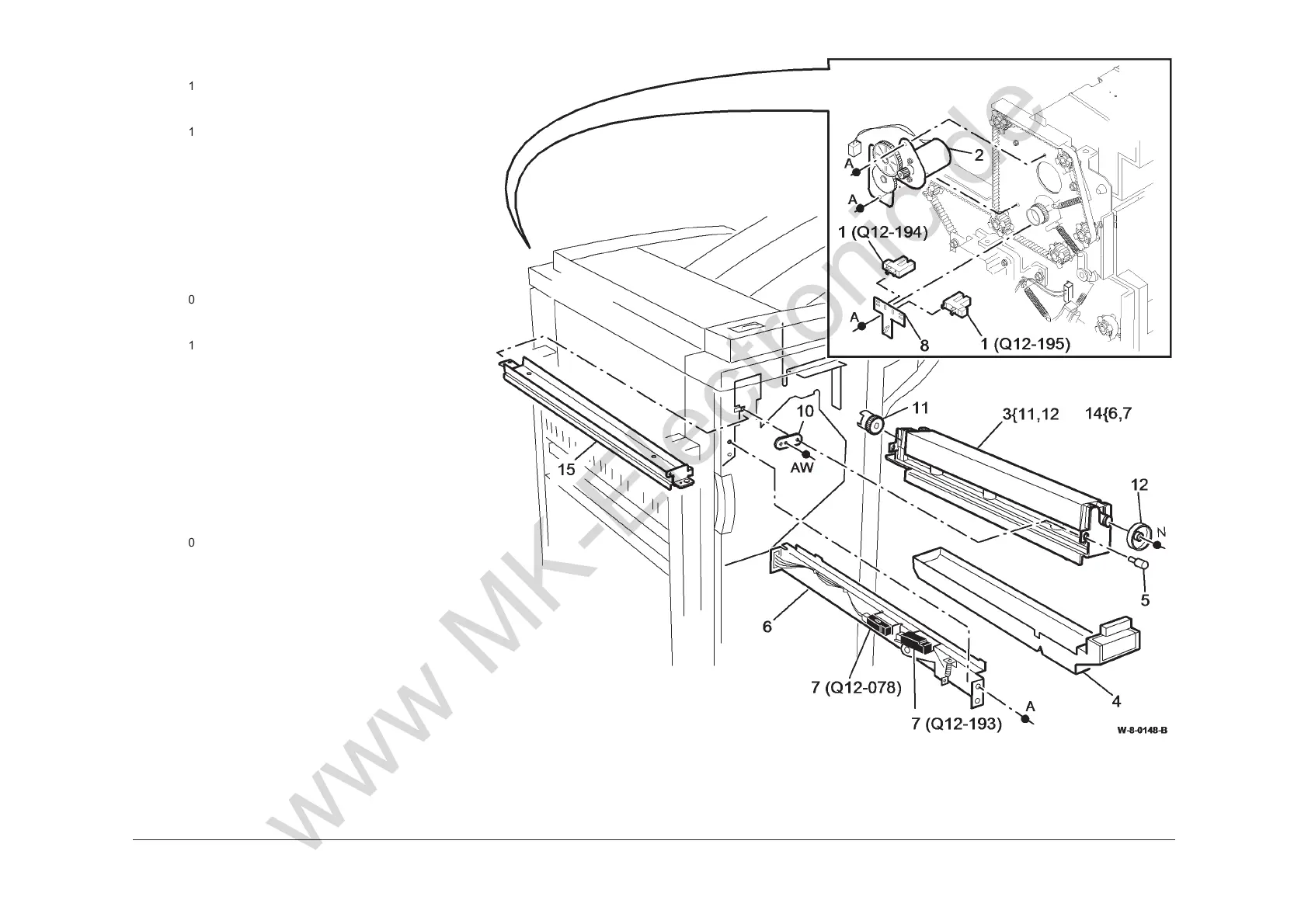

PL 12.330 LVF BM Hole Punch Unit
Item Part Description
1
130E10360 Punch head home sensor (Q12-
194), Punch head present sensor
(Q12-195) (REP 12.7-150)
2 127K55900 Punch head motor assembly
(MOT12-224) (REP 12.7-150)
3 – Hole punch unit (see below for
variants) (REP 12.7-150)
– – 2 Hole (P/O PL 31.11 Item 2) (XE)
– – 2 Hole legal (P/O PL 31.11 Item 2)
– – 3 Hole (P/O PL 31.11 Item 2)
(USSG/XCL)
– – 4 Hole (Sweden) (P/O PL 31.11
Item 2)
– – 4 Hole (P/O PL 31.11 Item 2) (XE)
4 093E03821 Chad bin
5 – Thumb screw (Not Spared)
6 – Bracket (P/O PL 12.330 Item 14)
7 130E10380 Punch sensor 1 (Q12-078), Chad
bin level sensor (Q12-193) (REP
12.7-150)
8 – Sensor bracket (Not Spared)
9 – Not used
10 – Bracket (Not Spared)
11 – Punch drive gear (P/O PL 12.330
Item 9) (W/TAG F-006)
12 – Punch cam (P/O PL 12.330 Item 3)
(W/O TAG F-014)
13 – Not used
14 – Punch sensor assembly (Not
Spared) (W/O TAG F-008)
15 014K10610 Hole punch guide assembly
www MK-Electronic de

Xerox WorkCentre 5945 Specifications

General

Print Technology	Laser
Print Speed	Up to 45 ppm
Maximum Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Maximum Scan Resolution	600 x 600 dpi
Functions	Print, Copy, Scan, Fax
Copy Speed	Up to 45 cpm
Copy Resolution	600 x 600 dpi
Processor	1.2 GHz Dual-core
Memory	2 GB
Fax	Optional
Fax Transmission Speed	33.6 Kbps
Maximum Paper Size	A3
Connectivity	USB, Ethernet
Paper Size	A4, A5
PDL	PCL6, PDF, XPS, TIFF, JPEG
Mobile Printing	Apple AirPrint
Dimensions	640 x 700 x 1140 mm
Scanner Type	ADF, Flatbed
Weight	Approx. 172.0 lb / 78 kg
