Xerox WorkCentre 5945

February 2016
5-91
Xerox® WorkCentre® 5945 Family
PL 80.32
Parts Lists

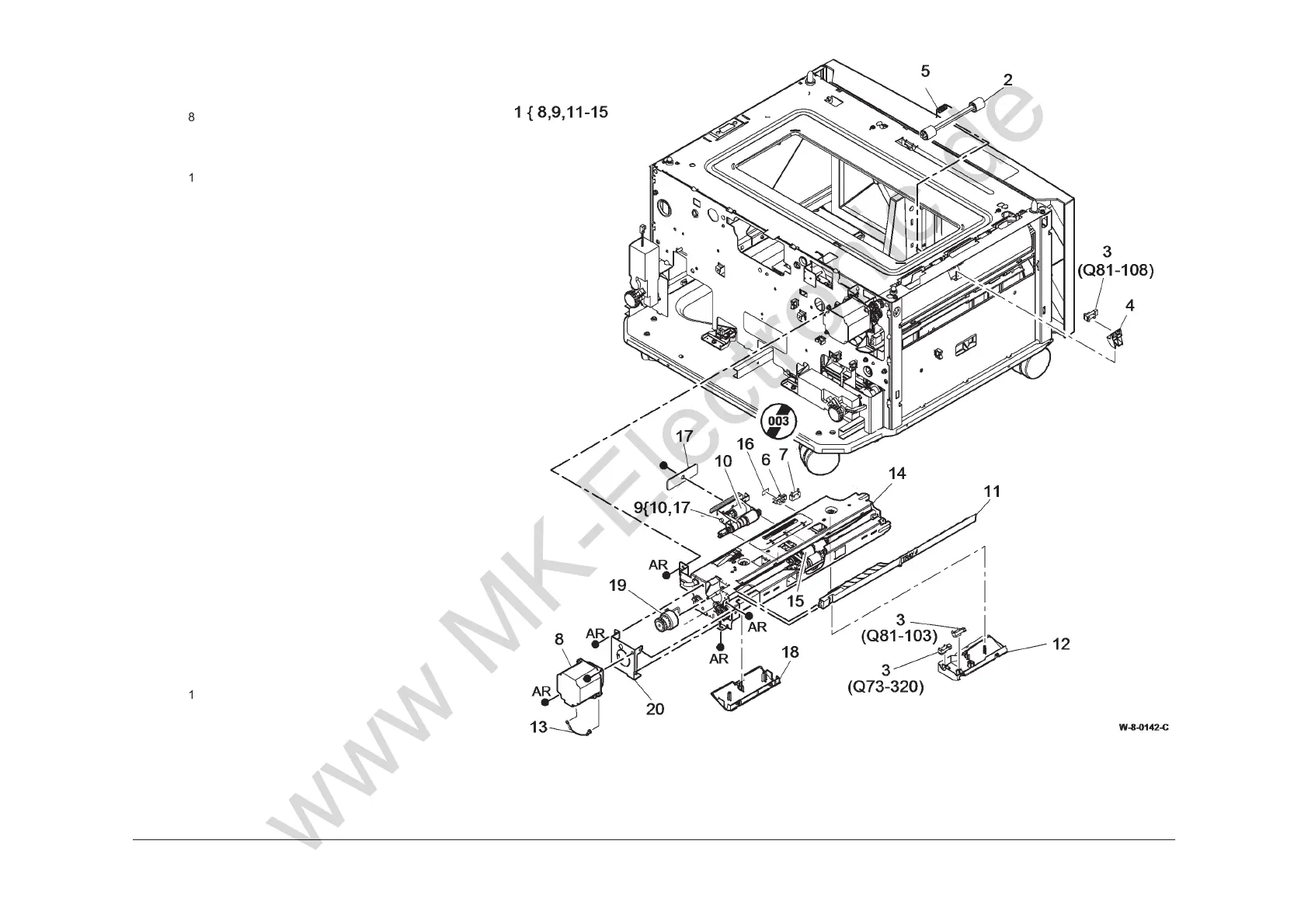

PL 80.32 Tray 3 Paper Feed Assembly
Item Part Description
1
– Tray 3 paper feed assembly (P/O
PL 31.12 Item 6) (REP 80.20)
2 859K04280 Idler roll assembly (metal shaft)
(REP 80.27)
– – Idler roll assembly (plastic shaft)
(Not Spared)
3 130E11610 Tray 3 empty sensor (Q73-320)
(REP 70.16) / Tray 3 feed sensor
(Q81-103) (REP 80.30)/ HCF exit
sensor (Q81-108)
4 – HCF exit sensor bracket (Not
Spared)
5 – Spring (Not Spared)
6 – Tray 3 stack height sensor (Q73-
330) (P/O PL 31.12 Item 16) (REP
70.9)
7 – Tray 3 over elevate switch (Not
Spared) (W/O TAG 003)
8 – Tray 3 feed motor (MOT81-030)
(P/O PL 80.32 Item 1)
9 – Feed roll assembly (P/O PL 31.12
Item 15) (See NOTE) (REP 80.17)
10 – Nudger roll (P/O PL 80.32 Item 9)
(REP 80.17, ADJ 80.1)
11 – Tray 3 paper guide (P/O PL 80.32
Item 1) (REP 80.28)
12 – Sensor mounting (P/O PL 80.32
Item 1)
13 – Ground cable (P/O PL 80.32 Item
1)
14 – Feed frame assembly (P/O PL
80.32 Item 1)
15 – Retard roll (P/O PL 31.12 Item 15)
(See NOTE) (REP 80.17, ADJ
80.3)
16 – Shim (P/O PL 31.12 Item 16)
17 – Nudger roll weight (P/O PL 80.32
Item 9) (ADJ 80.1)
18 – Gull wing cover (P/O PL 31.14 Item
4)
19 121E27552 Feed clutch (REP 80.32)
20 – Bracket (P/O PL 80.32 Item 1)
NOTE: HFSI. To reset the HFSI count, refer to dC135.
