Xerox WorkCentre 5945 Service Manual

February 2016
5-46
Xerox® WorkCentre® 5945 Family
PL 12.365
Parts Lists

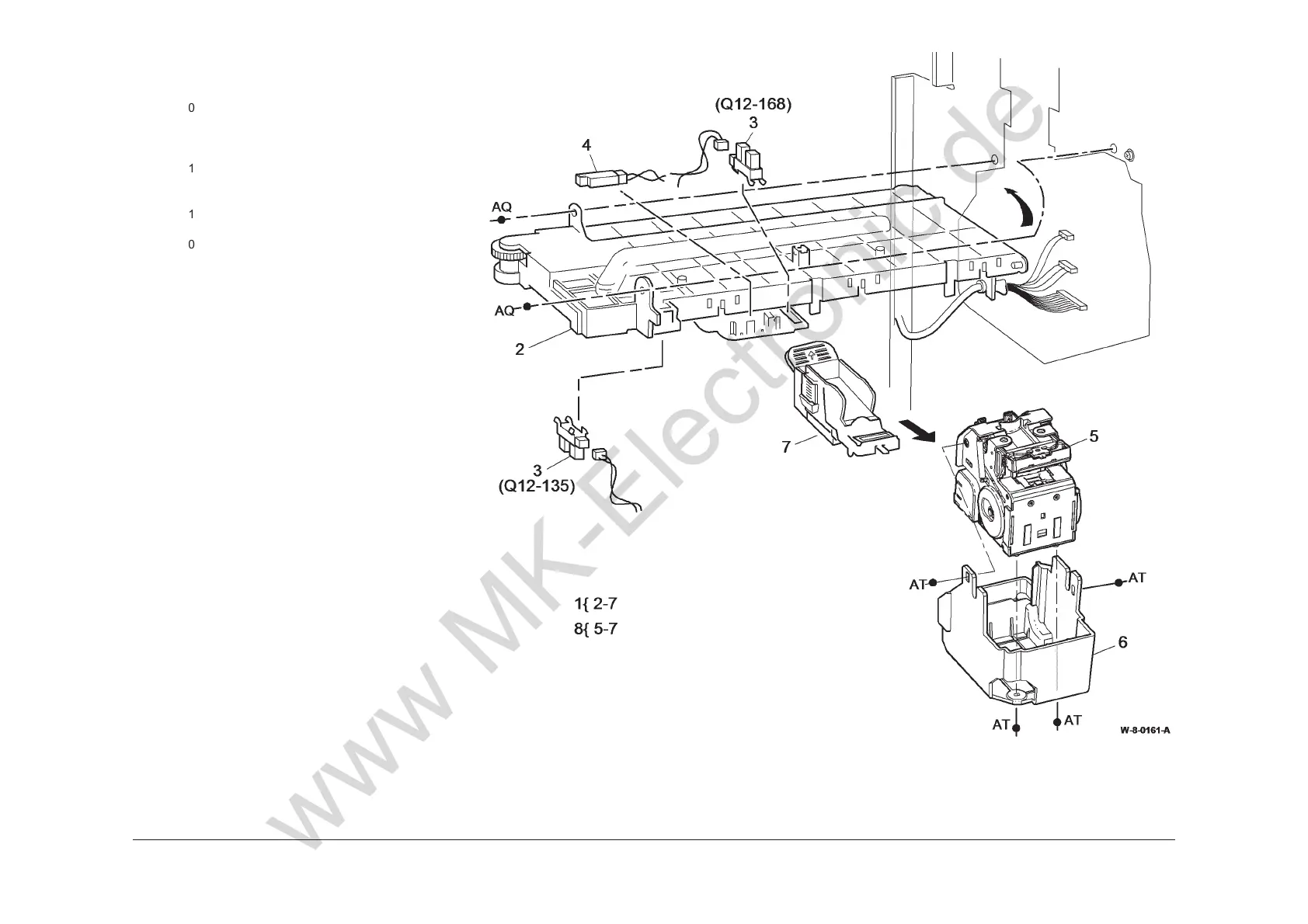

PL 12.365 LVF BM Staple Head Unit/
T
raverse Assembly
Item Part Description
1
014K11543 Stapler traverse assembly (REP
12.8-150)
2 – Head traverse unit (P/O PL 12.365
Item 1)
3 130E10360 Staple home sensor (Q12-135),
Stapler index sensor (Q12-168)
(REP 12.8-150)
4 130E10380 SH1 Paper sensor (Q12-196)
(REP 12.8-150)
5 029K04691 Staple head unit (REP 12.9-150)
6 – Stapler cover (P/O PL 12.365 Item
1)
7 – Staple cartridge (REF: PL 26.10
Item 11) (See NOTE)
8 – Staple head assembly (P/O PL
12.365 Item 1)
NOTE: To replace staples only, order PL 26.11 Item 4.
