Xerox WorkCentre 5945

February 2016
5-27
Xerox® WorkCentre® 5945 Family
PL 12.30
Parts Lists

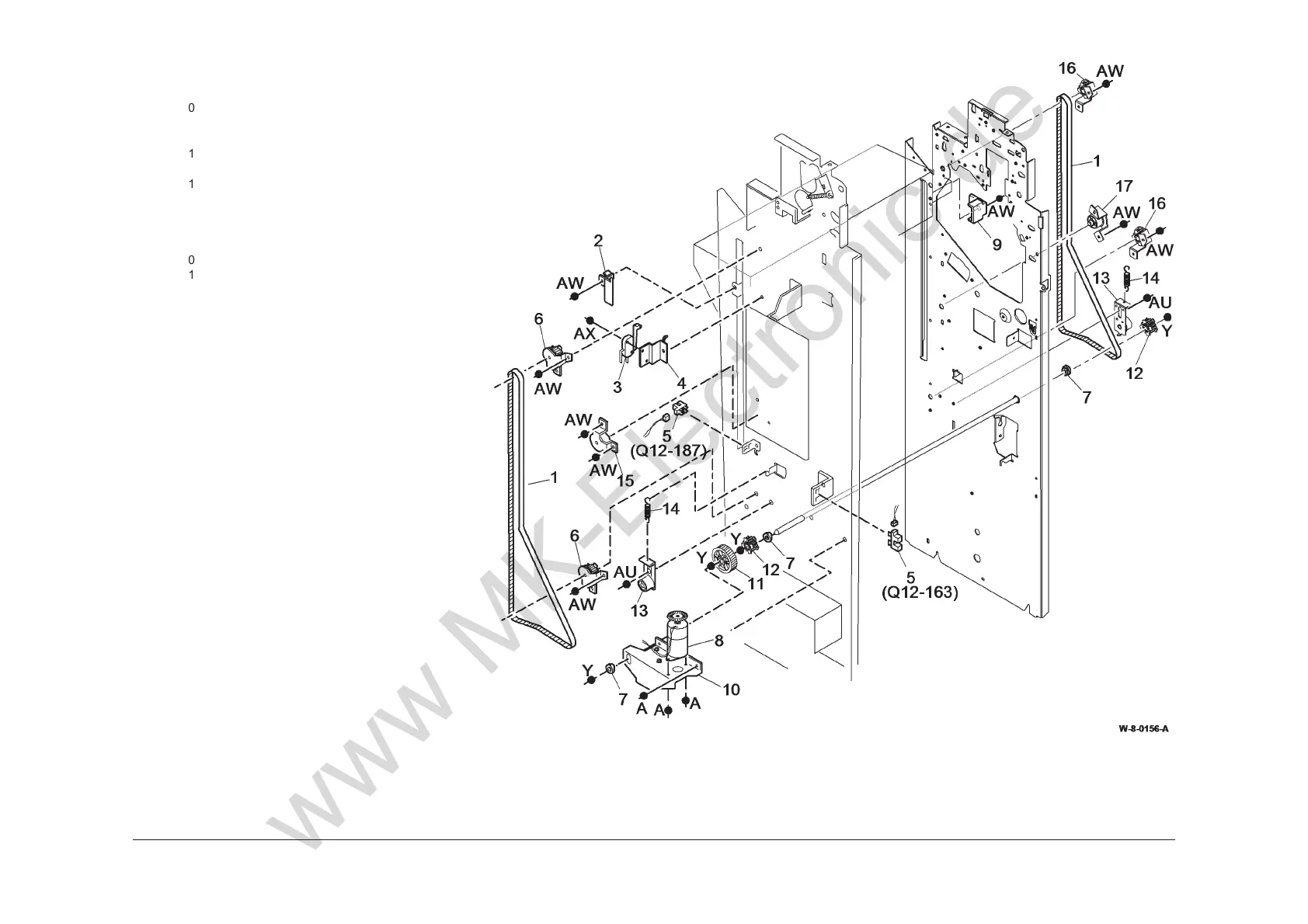

PL 12.30 2K LCSS Bin 1 Control
C
omponents (1 of 2)
Item Part Description
1
023E24320 Bin 1 drive belt (REP 12.5-110)
2 – Rear belt clamp (Not Spared) (ADJ
12.1-110)
3 110E20180 Bin 1 upper limit switch (S12-190)
4 – Sensor bracket (Not Spared)
5 130E10360 Bin 1 90% full sensor (Q12-187)/
Bin 1 motor encoder sensor (Q12-
163)
6 – Rear pulley (Not Spared) (ADJ
40.1)
7 013E37470 Bearing
8 127K55891 Bin 1 elevator motor (MOT12-241)
9 – Front belt clamp (Not Spared) (ADJ
12.1-110)
10 – Motor bracket (Not Spared)
11 – Drive gear (Not Spared)
12 – Drive pulley assembly (Not Spared)
13 – Belt tensioner (Not Spared) (ADJ
40.1)
14 – Spring (Not Spared)
15 – Rear idler (Not Spared) (ADJ 40.1)
16 – Front pulley (Not Spared) (ADJ
40.1)
17 – Front idler (Not Spared) (ADJ 40.1)
