Xerox WorkCentre 5945 Service Manual

February 2016
5-90
Xerox® WorkCentre® 5945 Family
PL 80.26
Parts Lists

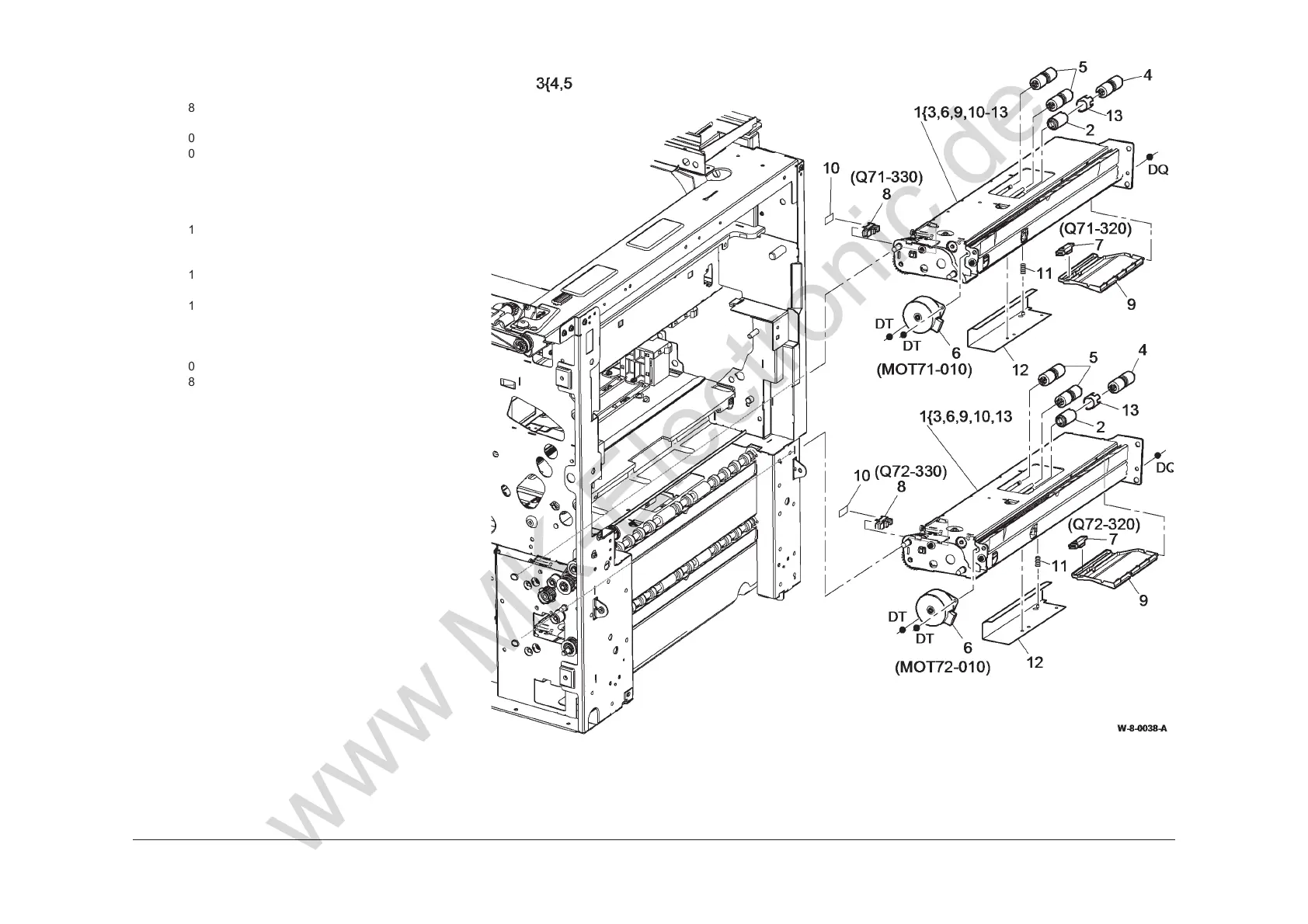

PL 80.26 Tray 1 and 2 Paper Feed
A
ssembly (2 of 2)
Item Part Description
1
859K04212 Tray 1 or Tray 2 paper feed
assembly (REP 80.1, ADJ 40.1)
2 005K12242 Friction clutch (REP 80.19)
3 059K69800 Roll assembly (3 rolls) (See NOTE)
(REP 80.18)
4 – Retard roll (P/O PL 80.26 Item 3)
5 – Feed/Nudger roll assembly (P/O PL
80.26 Item 3)
6 127K61850 Tray 1 elevate/feed motor (MOT71-
010)/Tray 2 elevate/feed motor
(MOT72-010)
7 130E12770 Tray 1 empty sensor (Q71-320)/
Tray 2 empty sensor (Q72-320)
8 130E19350 Tray 1 stack height sensor (Q71-
330)/Tray 2 stack height sensor
(Q72-330)
9 – Guide (P/O PL 80.26 Item 1)
10 014E67650 Shim
11 809E84180 Retard roll gate spring
12 – Retard roll gate (P/O PL 80.26 Item
1)
13 – Clutch coupling (P/O PL 80.26 Item
1) (REP 80.19)
NOTE: HFSI. To reset the HFSI count, refer to dC135.
