Xerox WorkCentre 5945 Service Manual

February 2016
5-47
Xerox® WorkCentre® 5945 Family
PL 12.370
Parts Lists

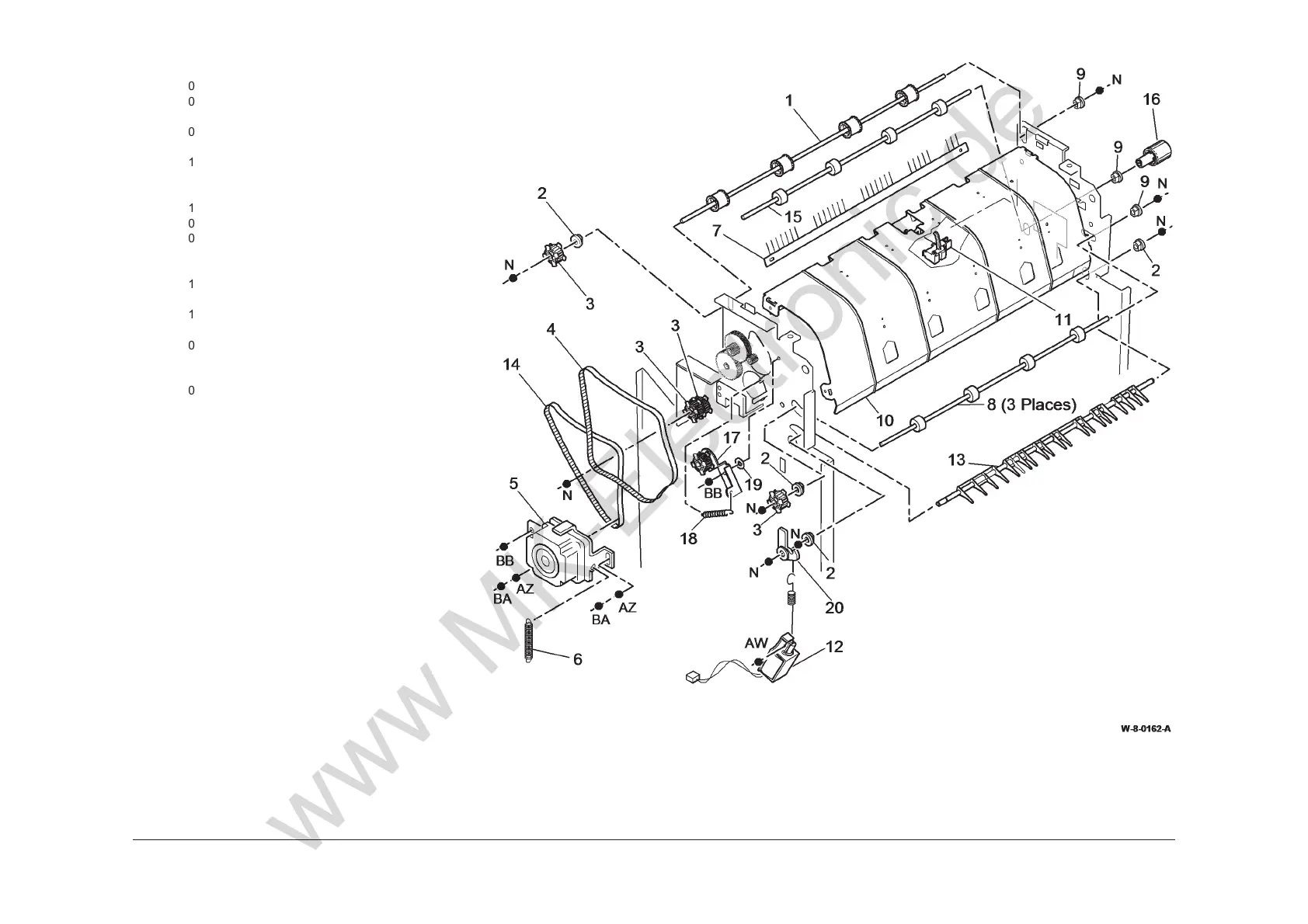

PL 12.370 LVF BM Bin 0 Entry
Item Part Description
1
006K32810 Top tray exit shaft
2 013E25790 Nylon bearing
3 – Pulley (Not Spared)
4 023E24330 Intermediate paper drive belt (REP
12.3-150)
5 127K55870 Transport motor 2 (MOT12-224)
(REP 12.4-150, ADJ 12.4-150)
6 – Spring (Not Spared)
7 115E13440 Static eliminator
8 006K32840 Feed roll shaft (short)
9 013E37460 Bearing
10 – Paper guide (Not Spared) (REP
12.46-150)
11 130E11440 Top tray exit sensor (Q12-107)
(REP 12.46-150)
12 121K45010 Exit diverter solenoid (SOL12-225)
13 – Exit diverter gate (Not Spared)
14 023E24340 Paper output drive belt (REP 12.4-
150)
15 – Drive shaft assembly (Not Spared)
16 006K33960 Jam clearance knob
17 – Belt tensioner (Not Spared) (ADJ
40.1)
18 – Spring (Not Spared)
19 – Washer (Not Spared)
20 – Actuator (Not Spared)
