Xerox WorkCentre 5945

February 2016
5-93
Xerox® WorkCentre® 5945 Family
PL 80.36
Parts Lists

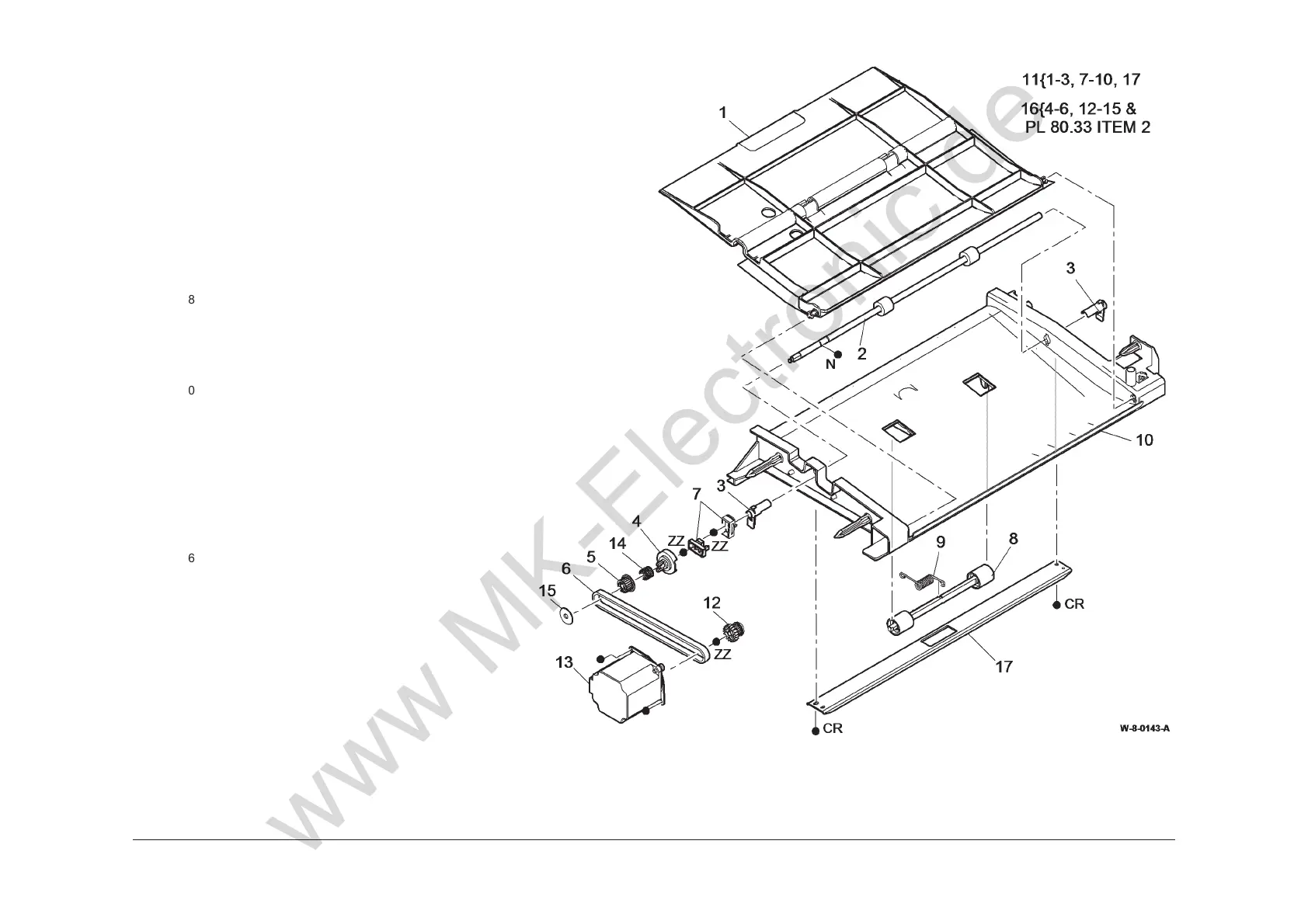

PL 80.36 Tray 4 Transport Assembly
Item Part Description
1
– Jam clearance door (P/O PL 80.36
Item 11)
2 – Takeaway roll assembly (P/O PL
31.12 Item 8) (REP 80.26)
3 – Takeaway roll bearing (P/O PL
31.12 Item 8) (REP 80.26)
4 – Clutch drive (P/O PL 80.36 Item 16)
(REP 80.31)
5 – Pulley (P/O PL 80.36 Item 16)
(REP 80.31)
6 – Drive belt (P/O PL 80.36 Item 16)
(REP 80.31)
7 – Drive coupling (P/O PL 31.12 Item
8)
8 859K04280 Idler roll assembly (metal shaft)
(REP 80.26)
– – Idler roll assembly (plastic shaft)
(Not Spared) (REP 80.26)
9 – Spring (P/O PL 80.36 Item 11)
10 – Base (P/O PL 80.36 Item 11)
11 038K24380 Tray 4 transport assembly (REP
80.24)
12 – Transport gear pulley (P/O PL
80.36 Item 16) (REP 80.23)
13 – HCF transport motor (MOT81-045)
(P/O PL 80.36 Item 16) (REP
80.22)
14 – Spring (P/O PL 80.36 Item 16)
(REP 80.31)
15 – Pulley flange (P/O PL 80.36 Item
16) (REP 80.31)
16 604K97740 Transport motor and drives kit
17 – Tray 4 transport brace (P/O PL
80.36 Item 11)
