Xerox WorkCentre 5945 Service Manual

February 2016
5-89
Xerox® WorkCentre® 5945 Family
PL 80.25
Parts Lists

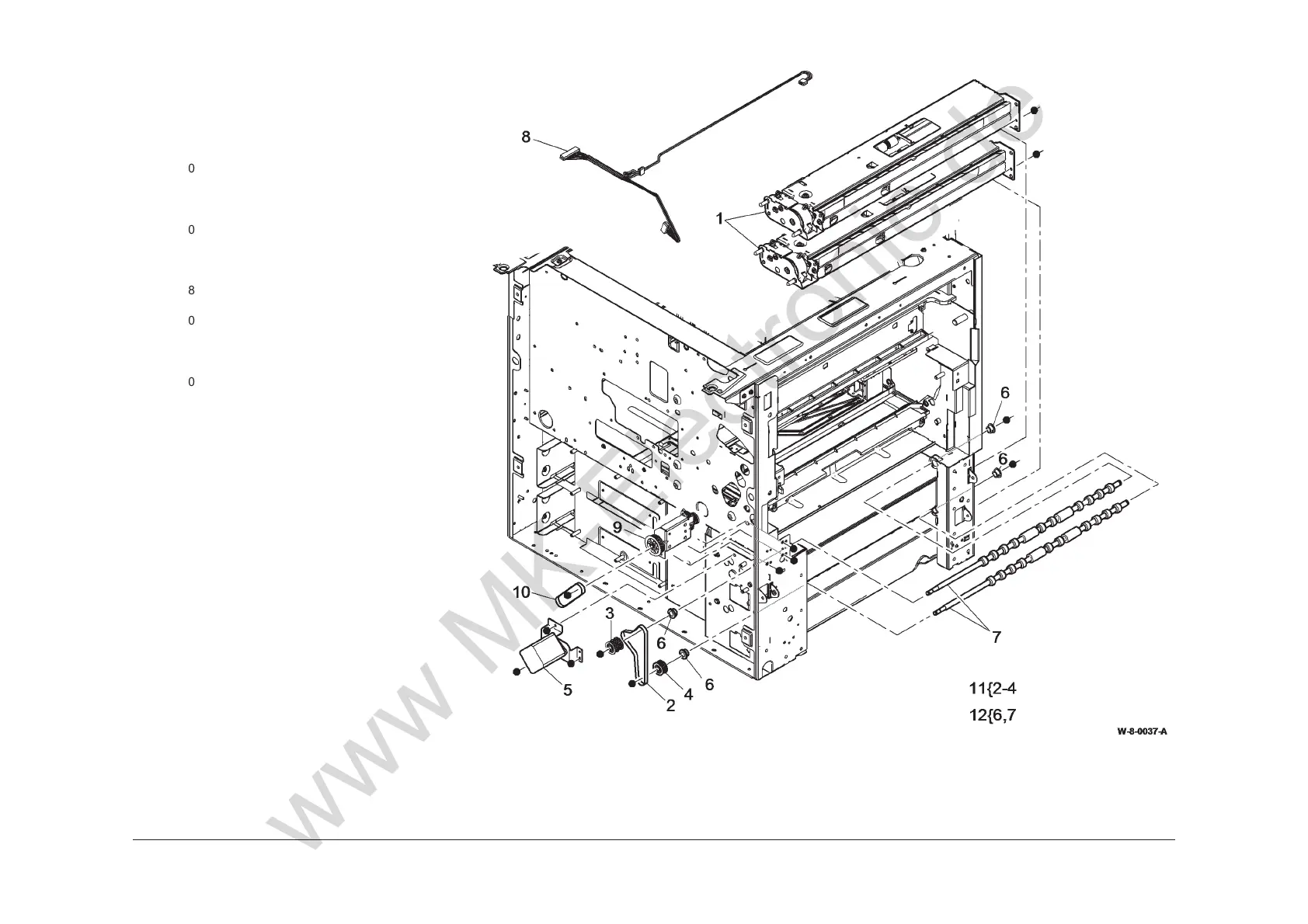

PL 80.25 Tray 1 and 2 Paper Feed
A
ssembly (1 of 2)
Item Part Description
1
– Tray 1 or 2 paper feed assembly
(REF: PL 80.26 Item 1)
2 – Transport roll drive belt (P/O PL
80.25 Item 11) (REP 80.8)
3 020K21561 Drive pulley (See NOTE) (REP
80.10)
4 – Pulley (P/O PL 80.25 Item 11)
(REP 80.10)
5 007K21820 TAR/Bypass tray motor (MOT80-
006) (REP 80.8)
6 – Transport roll bearing (P/O PL
80.25 Item 12) (REP 80.10)
7 807E47174 Transport roll (REP 80.10)
8 – Power harness (Not Spared)
9 007K20748 Bypass tray drive assembly (REP
80.4)
10 – Bypass tray drive belt (Not Spared)
(REP 80.6)
11 020K21640 Transport drive belt kit (REP 80.8)
12 – Transport roll assembly (Not
Spared)
NOTE: Also part of PL 80.25 Item 11.
