PERIODIC MAINTENANCE
3-14
ECA13490
After adjusting the brake lever position,
make sure there is no brake drag.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲▲▲▲
EAS21240

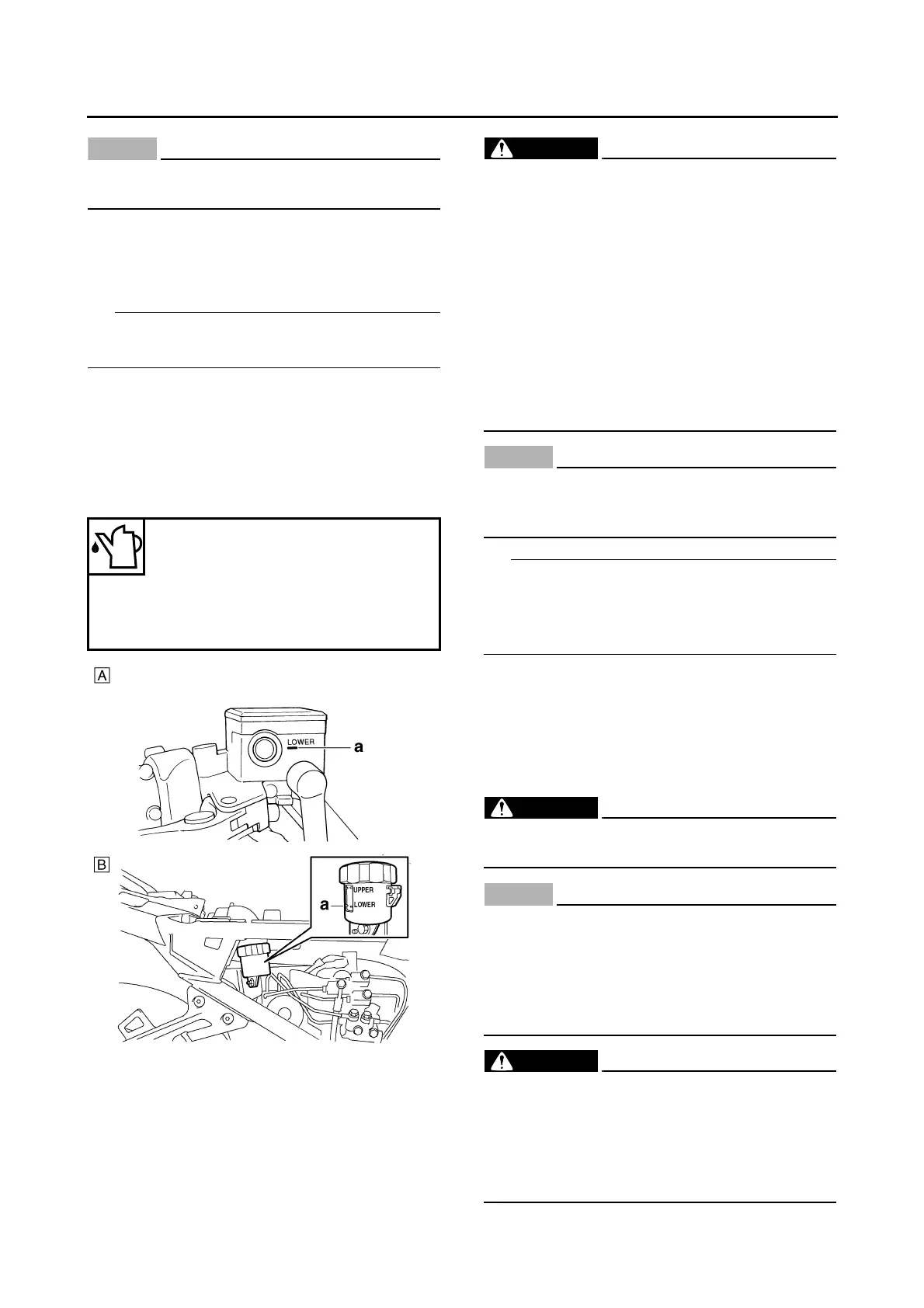

CHECKING THE BRAKE FLUID LEVEL
1. Stand the vehicle on a level surface.
• Place the vehicle on the centerstand.
• Make sure the vehicle is upright.
2. Remove:
• Right side cover
Refer to “GENERAL CHASSIS” on page 4-1.
3. Check:
• Brake fluid level
Below the minimum level mark “a” → Add the
specified brake fluid to the proper level.
EWA1MC1023
• Use only the designated brake fluid. Other
brake fluids may cause the rubber seals to
deteriorate, causing leakage and poor
brake performance.
• Refill with the same type of brake fluid that
is already in the system. Mixing brake fluids
may result in a harmful chemical reaction,
leading to poor brake performance.
• When refilling, be careful that water does
not enter the brake master cylinder reser-
voir or brake fluid reservoir. Water will sig-
nificantly lower the boiling point of the
brake fluid and could cause vapor lock.
ECA13540
Brake fluid may damage painted surfaces
and plastic parts. Therefore, always clean up
any spilt brake fluid immediately.
In order to ensure a correct reading of the brake
fluid level, make sure the top of the brake master
cylinder reservoir and brake fluid reservoir are
horizontal.
4. Install:
• Right side cover
Refer to “GENERAL CHASSIS” on page 4-1.
EAS22780
BLEEDING THE HYDRAULIC BRAKE
SYSTEM (ABS)
EWA14000
Always bleed the brake system when the
brake related parts are removed.
EC3P61012
• Bleed the brake system in the following or-
der.
• 1st step: Front brake calipers
• 2nd step: Right front brake caliper (unified
brake system)
• 3rd step: Rear brake caliper
EW3P61010
Bleed the ABS whenever:
• the system is disassembled.
• a brake hose is loosened, disconnected, or
replaced.
• the brake fluid level is very low.
• brake operation is faulty.
Front brake
Specified brake fluid
DOT 4
Rear brake
Specified brake fluid
DOT 4
A. Front brake
B. Unified brake system
