Yamaha FJR1300A(D) - Installing the Windshield Drive Unit

GENERAL CHASSIS
4-16
EAS1MC1079
INSTALLING THE WINDSHIELD DRIVE UNIT
1. Check:
• Windshield drive unit operation
TIP
After installing the windshield drive unit to the
windshield drive unit bracket, check the opera-
tion of the drive unit.
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼▼▼▼

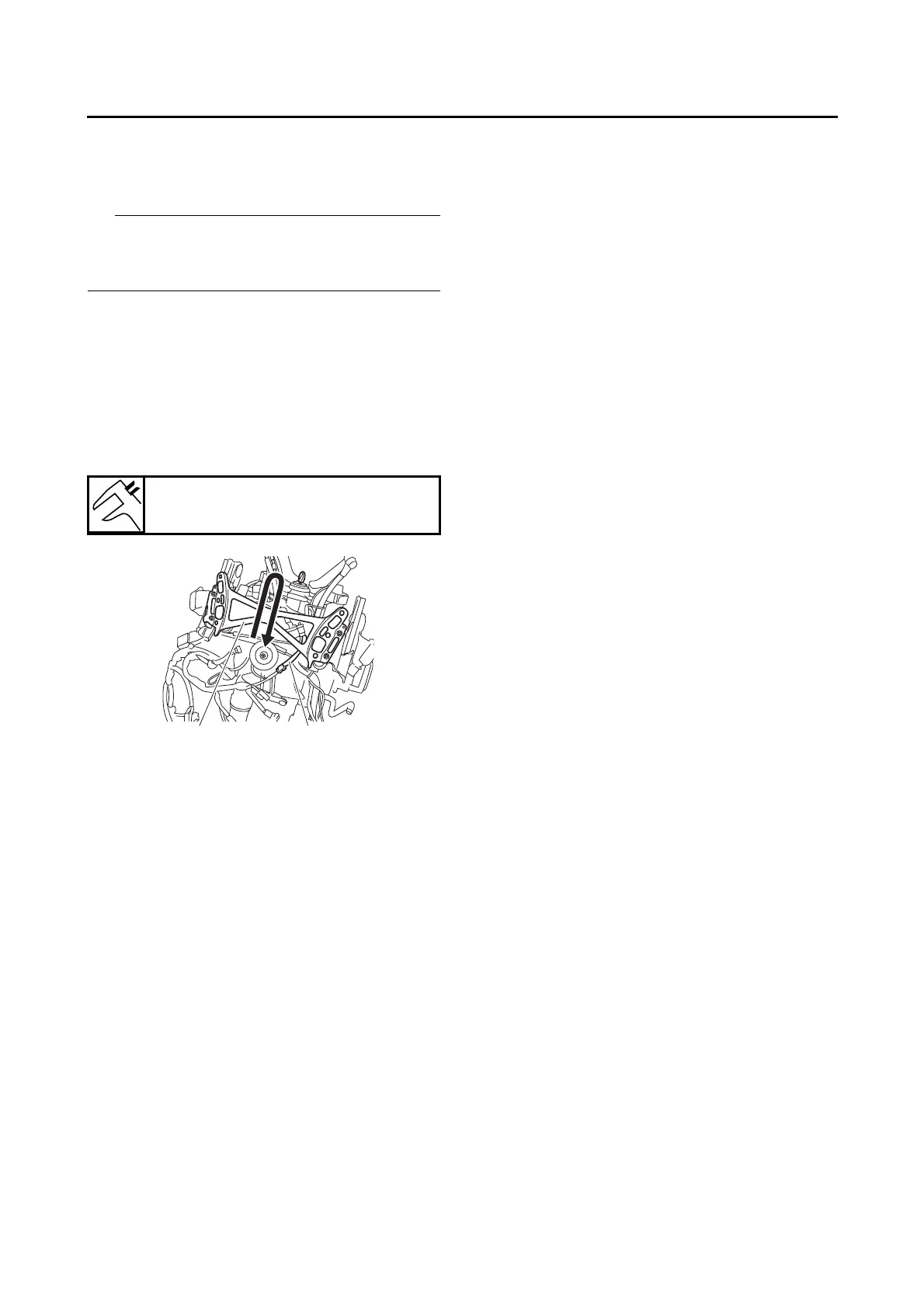

a. Install the windshield drive unit sub-lead “1”,
and then connect the windshield drive unit
sub-lead to the wire harness.
b. Install the windshield bracket “2”.
c. Operate the windshield drive unit and check
that the windshield drive unit arms can be
moved fully up and down within the specified
operation time.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲▲▲▲
Specified operation time
1.9–3.8 seconds
2
1
