FRONT WHEEL
4-26
2. Check:
•Tire
• Front wheel
Damage/wear → Replace.
Refer to “CHECKING THE TIRES” on page
3-17 and “CHECKING THE WHEELS” on
page 3-17.

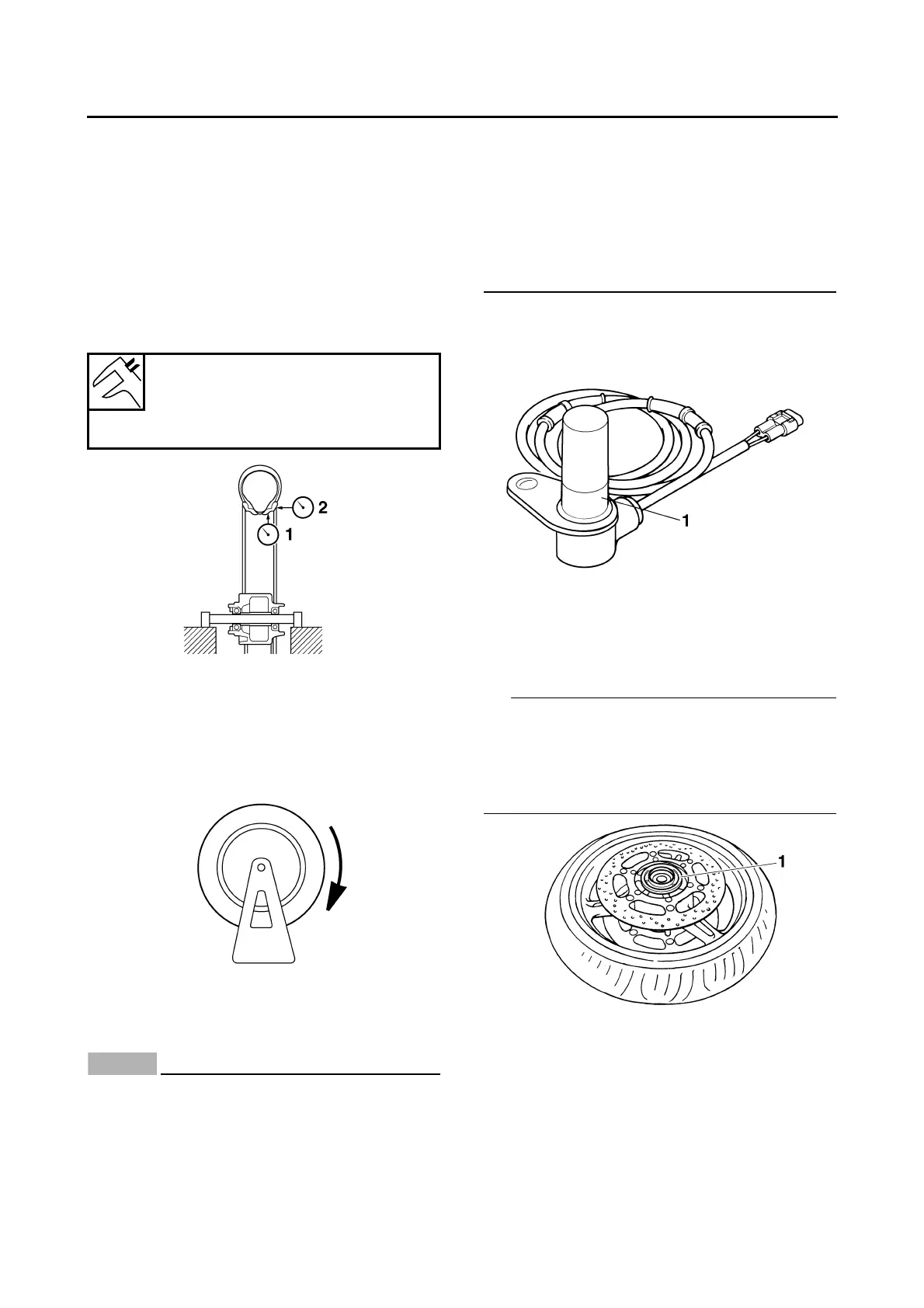

3. Measure:
• Radial wheel runout “1”
• Lateral wheel runout “2”
Over the specified limits → Replace.
4. Check:
• Wheel bearings
Front wheel turns roughly or is loose → Re-
place the wheel bearings.
• Oil seals
Damage/wear → Replace.
EAS22010
MAINTENANCE OF THE FRONT WHEEL
SENSOR AND SENSOR ROTOR
NOTICE
ECA3P6D004
• Handle the ABS components with care
since they have been accurately adjusted.
Keep them away from dirt and do not sub-
ject them to shocks.
• The front wheel sensor cannot be disas-
sembled. Do not attempt to disassemble it.
If faulty, replace with a new one.
• Keep magnets (including magnetic pick-up
tools, magnetic screwdrivers, etc.) away
from the wheel sensor rotor.
• Do not drop or shock the wheel sensor or
the wheel sensor rotor.
1. Check:
• Front wheel sensor “1”
Cracks/bends/distortion → Replace.
Iron powder/dust → Clean.
2. Check:
• Front wheel sensor rotor “1”
Cracks/damage/scratches → Replace the
front wheel sensor rotor.
Iron powder/dust/solvent → Clean.
TIP
• The wheel sensor rotor is installed on the inner
side of the wheel hub.
• When cleaning the wheel sensor rotor, be
careful not to damage the surface of the rotor
magnet.
3. Measure:
• Wheel sensor rotor deflection
Out of specification → Clean the installation
surface of the wheel sensor rotor and correct
the wheel sensor rotor deflection, or replace
the wheel sensor rotor.
Radial wheel runout limit
1.0 mm (0.04 in)
Lateral wheel runout limit
0.5 mm (0.02 in)
