c. Tighten the bearing retainer to specification.
d. Lock the threads with a drift punch.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲▲▲▲
2. Tighten:
• Middle driven pinion gear nut
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼▼▼▼
a. Tighten the middle driven pinion gear nut to
specification.
TIP
Secure the middle driven shaft in a vise, making
sure to tighten the vise jaws onto the flat sec-
tions of the shaft.
b. Lock the threads with a drift punch.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS25860

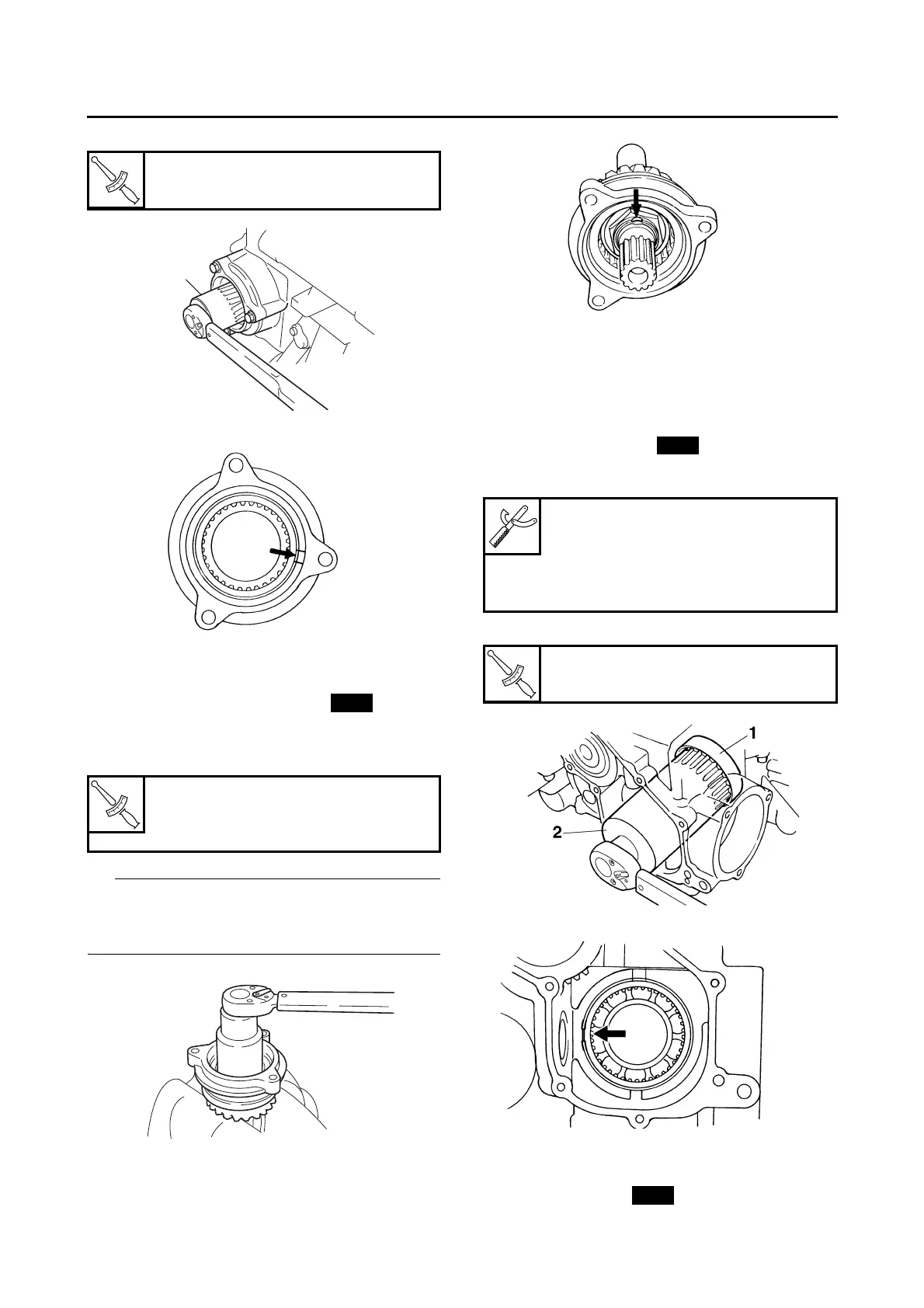

INSTALLING THE MIDDLE DRIVE SHAFT
ASSEMBLY
1. Tighten:
• Bearing retainer “1”
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Attach the bearing retainer wrench “2”.
b. Tighten the bearing retainer to specification.
c. Lock the threads with a drift punch.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
2. Install:
• Lock washer “1”
T
R
.
.
Bearing retainer
110 Nm (11.0 m·kg, 80 ft·lb)
T
R
.
.
Middle driven pinion gear nut
180 Nm (18.0 m·kg, 130 ft·lb)
LOCTITE®
1
New
Bearing retainer wrench
90890-04137
Middle drive shaft bearing retain-
er wrench
YM-04137
T
R
.
.
Bearing retainer
110 Nm (11.0 m·kg, 80 ft·lb)
New
New
