TRANSMISSION
5-97
EAS26240
TRANSMISSION

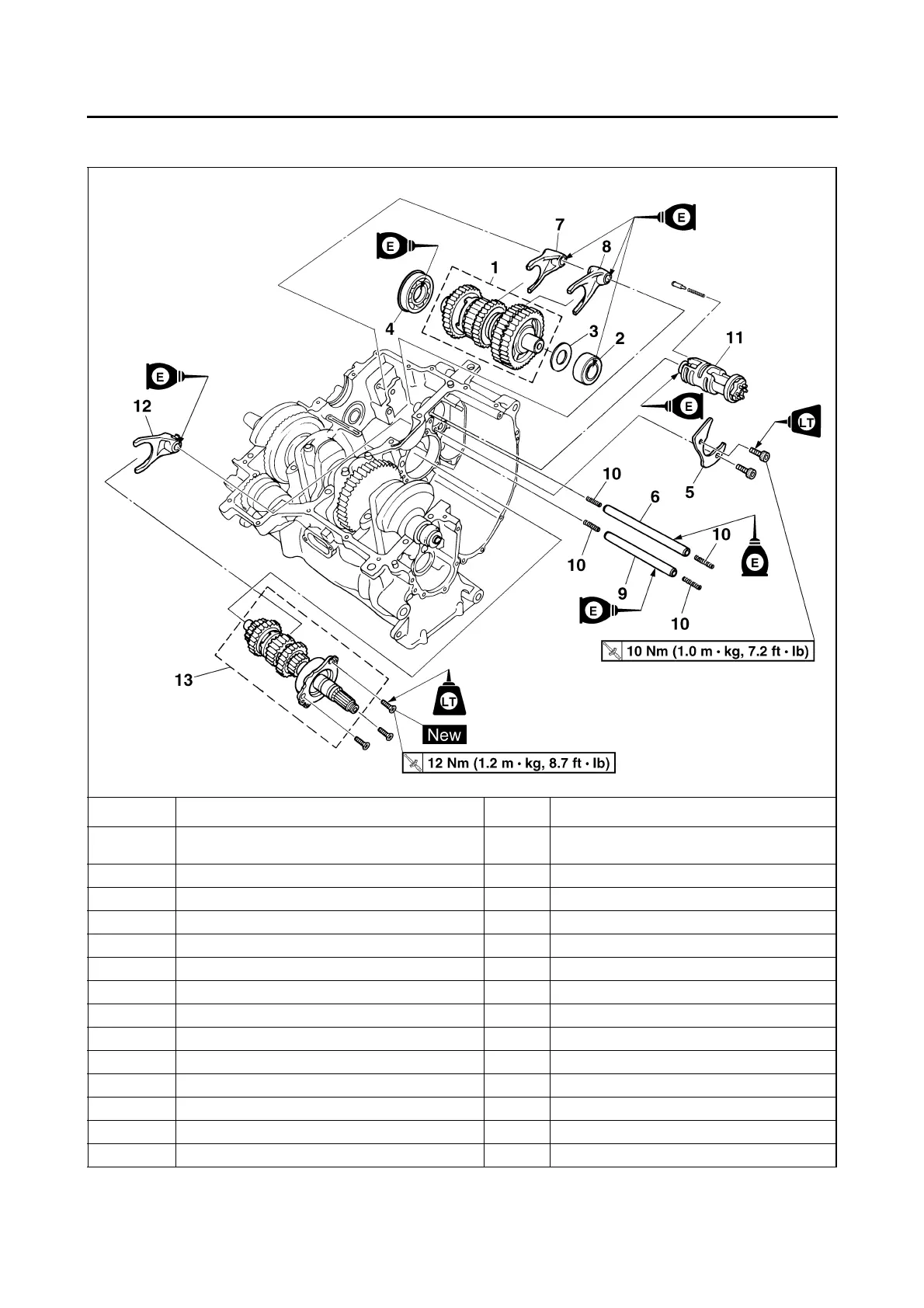

Removing the transmission, shift drum assembly, and shift forks
Order Job/Parts to remove Q’ty Remarks
Crankcase
Separate.
Refer to “CRANKCASE” on page 5-77.
Stopper lever Refer to “SHIFT SHAFT” on page 5-57.
1 Drive axle assembly 1
2 Bearing 1
3Washer 1
4 Bearing 1
5 Shift drum retainer 1
6 Long shift fork guide bar 1
7 Shift fork-L 1
8 Shift fork-R 1
9 Short shift fork guide bar 1
10 Spring 4
11 Shift drum assembly 1
12 Shift fork-C 1
To Next Page
