FRONT BRAKE
4-46
WARNING
EWA13560
• Cover the brake caliper pistons with a rag.
Be careful not to get injured when the pis-
tons are expelled from the brake caliper.
• Never try to pry out the brake caliper pis-
tons.
b. Remove the brake caliper piston dust seals
and brake caliper piston seals.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲▲▲▲
EAS22390

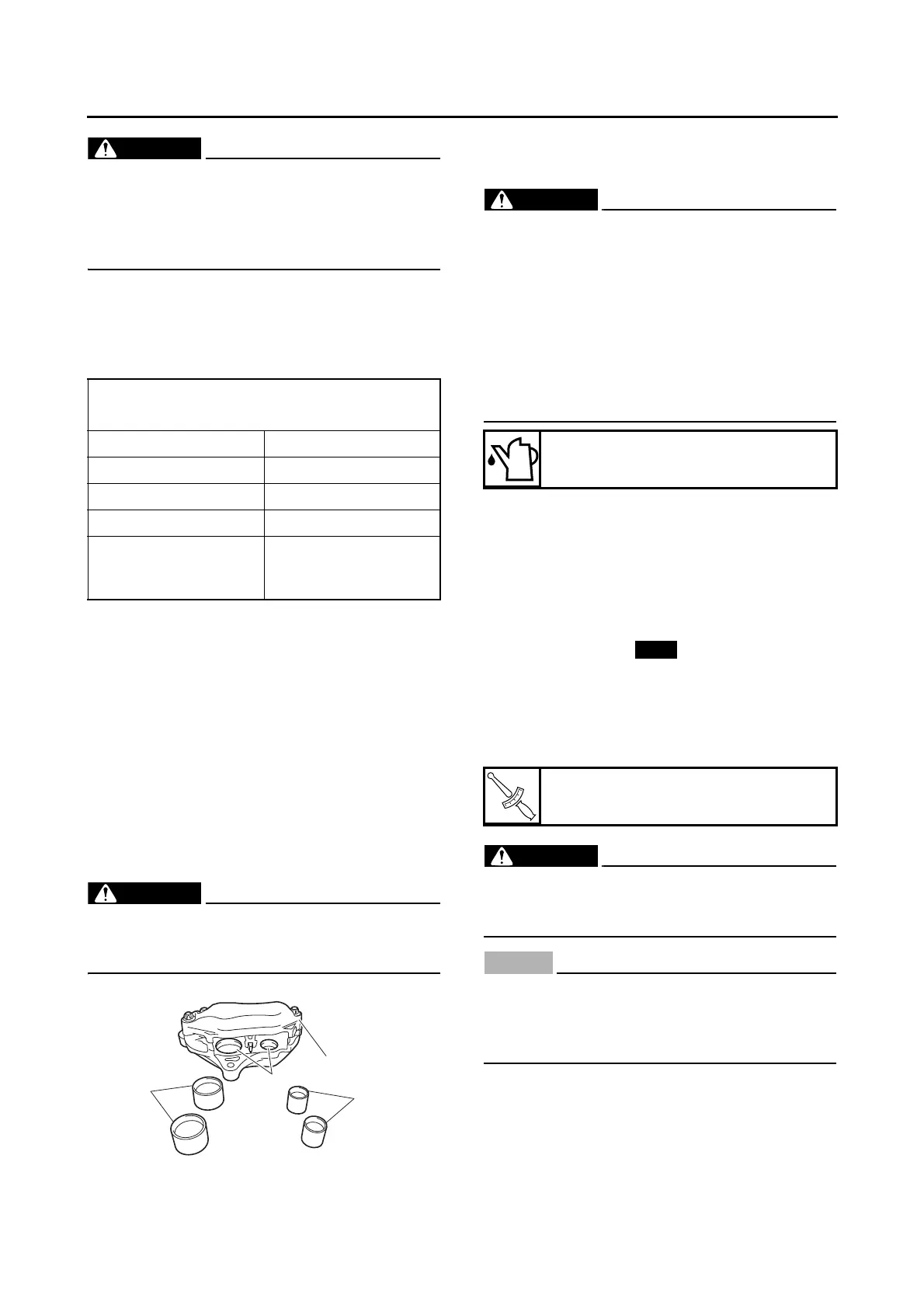

CHECKING THE FRONT BRAKE CALIPERS
1. Check:
• Brake caliper pistons “1”
Rust/scratches/wear → Replace the brake
caliper pistons.
• Brake caliper cylinders “2”
Scratches/wear → Replace the brake caliper
assembly.
• Brake caliper body “3”
Cracks/damage → Replace the brake caliper
assembly.
• Brake fluid delivery passages
(brake caliper body)
Obstruction → Blow out with compressed air.
WARNING
EWA3P6D001
Whenever a brake caliper is disassembled,
replace the brake caliper piston dust seals
and brake caliper piston seals.
EAS22410
ASSEMBLING THE FRONT BRAKE
CALIPERS
WARNING
EWA3P6D002
• Before installation, all internal brake com-
ponents should be cleaned and lubricated
with clean or new brake fluid.
• Never use solvents on internal brake com-
ponents as they will cause the brake caliper
piston dust seals and brake caliper piston
seals to swell and distort.
• Whenever a brake caliper is disassembled,
replace the brake caliper piston dust seals
and brake caliper piston seals.
EAS22440
INSTALLING THE FRONT BRAKE CALIPERS
The following procedure applies to both of the
brake calipers.
1. Install:
• Front brake caliper “1”
(temporarily)
• Copper washers
• Brake hose (brake pipe/upper joint assembly
to right front brake caliper) “2”
• Brake hose (metering valve to right front
brake caliper) “3”
• Brake hose union bolts “4”
WARNING
EWA1MC1014
Proper brake hose routing is essential to in-
sure safe vehicle operation. Refer to “CABLE
ROUTING” on page 2-47.
NOTICE
ECA14170
When installing the brake hose onto the
brake caliper “1”, make sure the brake pipe
“a” touches the projection “b” on the brake
caliper.
Recommended brake component replace-
ment schedule
Brake pads If necessary
Piston dust seals Every two years
Piston seals Every two years
Brake hoses Every four years
Brake fluid
Every two years and
whenever the brake
is disassembled
1
1
2
3
Specified brake fluid
DOT 4
T
R
.
.
Brake hose union bolt
30 Nm (3.0 m·kg, 22 ft·lb)
New
