THROTTLE BODIES
7-4
EAS26970
THROTTLE BODIES

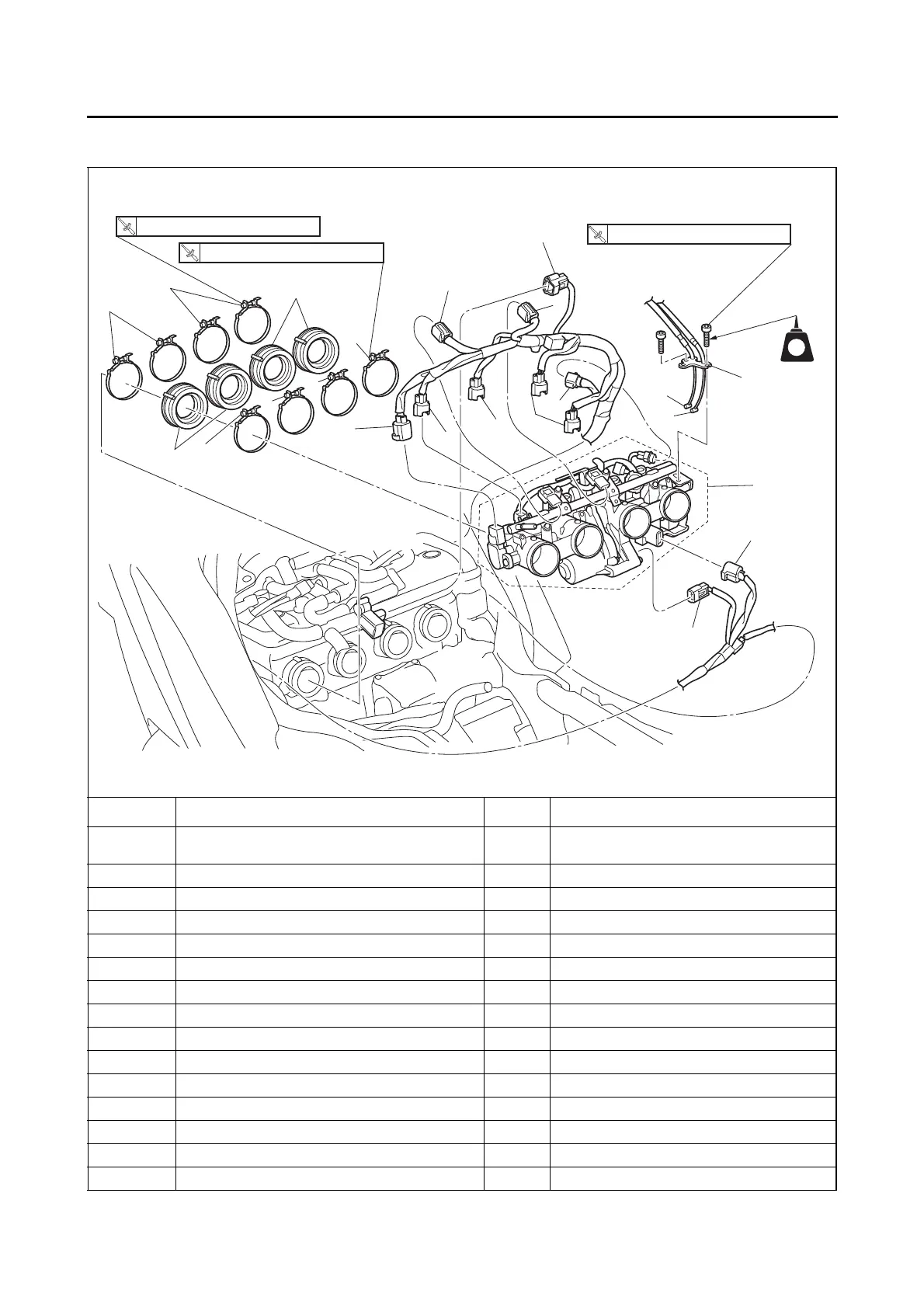

Removing the throttle bodies
Order Job/Parts to remove Q’ty Remarks
Rider seat/T-bar/Air filter case
Refer to “GENERAL CHASSIS” on page
4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
1 Throttle position sensor coupler 1 Disconnect.
2 Injector coupler 4 Disconnect.
3 Atmospheric pressure sensor coupler 1 Disconnect.
4 Intake air pressure sensor coupler 1 Disconnect.
5 Air cut-off valve coupler 1 Disconnect.
6 Grip cancel switch coupler 1 Disconnect.
7 Throttle servo motor coupler 1 Disconnect.
8 Accelerator position sensor coupler 1 Disconnect.
9 Throttle body joint clamp screw 8 Loosen.
10 Throttle bodies 1
11 Throttle cable holder 1
12 Throttle cable (decelerator cable) 1 Disconnect.
13 Throttle cable (accelerator cable) 1 Disconnect.
LT
9
9
9
9
9
14
9
10
1
2
2
2
3
4
5
8
6
7
11
13
12
14
4 Nm (0.4 m
•
kg, 2.9 ft
•
Ib)
T
.R
.
3 Nm (0.3 m
•
kg, 2.2 ft
•
Ib)
T
.R.
3 Nm (0.3 m
•
kg, 2.2 ft
•
Ib)
T
.R.
