Yamaha FJR1300A(D) - Swingarm

SWINGARM
4-102
EAS23330
SWINGARM

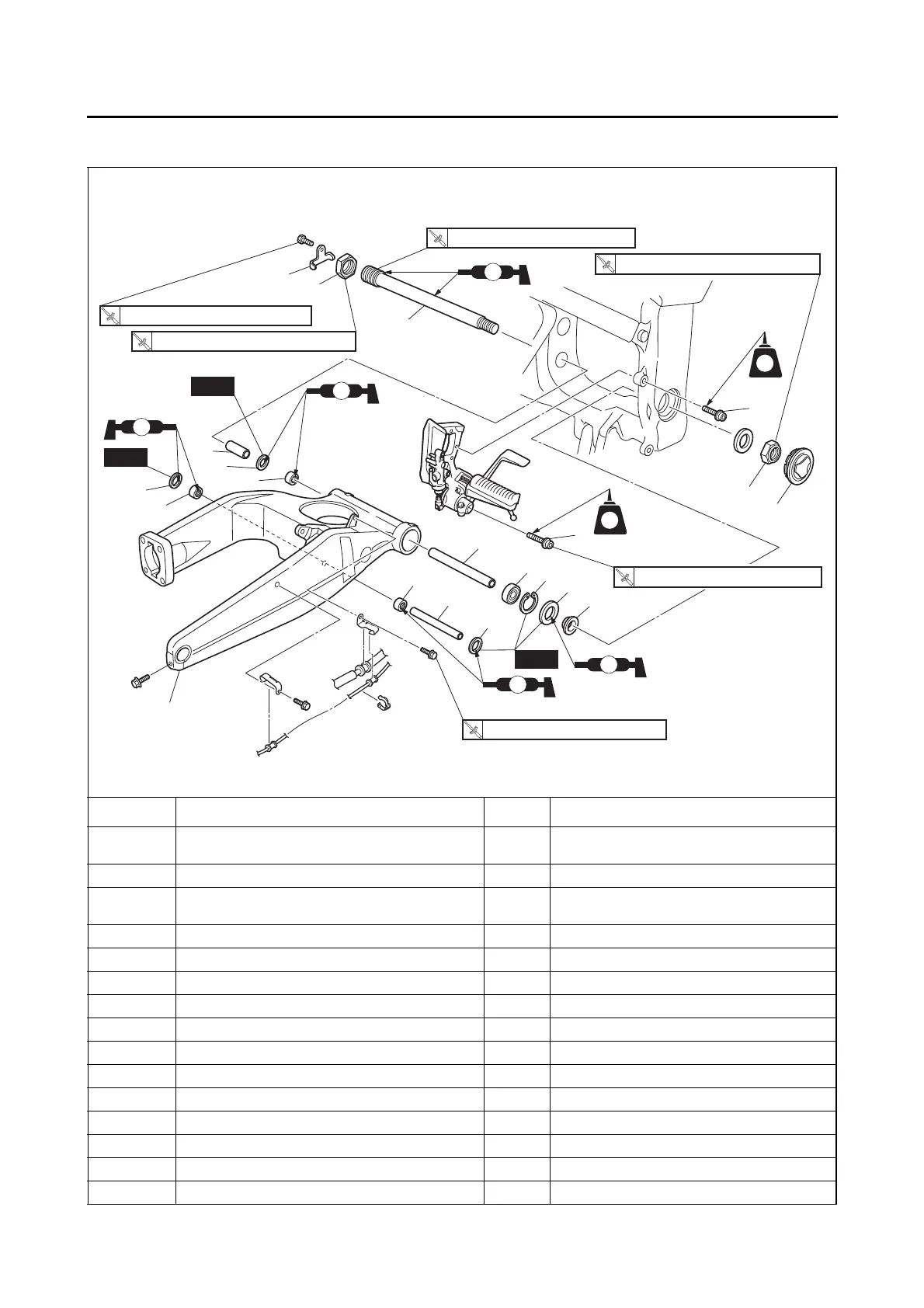

Removing the swingarm
Order Job/Parts to remove Q’ty Remarks
Left side cover/Air filter case
Refer to “GENERAL CHASSIS” on page
4-1.
Rear wheel Refer to “REAR WHEEL” on page 4-31.
Rear shock absorber assembly/Connecting
arms
Refer to “REAR SHOCK ABSORBER AS-
SEMBLY” on page 4-98.
Final drive assembly/Universal joint Refer to “SHAFT DRIVE” on page 4-106.
1 Right footrest assembly bolt 2
2 Pivot shaft end cover 1
3 Pivot shaft nut retainer 1
4 Pivot shaft self-lock nut 1
5 Pivot shaft nut 1
6 Pivot shaft 1
7 Swingarm 1
8 Spacer 1
9 Oil seal 2
10 Bearing 2
11 Collar 1
LT
LT
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
28 Nm (2.8 m
•
kg, 20 ft
•
Ib)
T
R
.
.
23 Nm (2.3 m
•
kg, 17 ft
•
Ib)
T
R
.
.
125 Nm (12.5 m
•
kg, 90 ft
•
lb)
T
R
.
.
115 Nm (11.5 m
•
kg, 85 ft
•
lb)
New
LS
LS
LS
New
LS
New
3
5
6
1
4
2
LS
1
17
16
15
12
11
10
8
9
18
14
13
9
10
7
