Yamaha FJR1300A(D) - Steering Head

STEERING HEAD
4-94
EAS23090

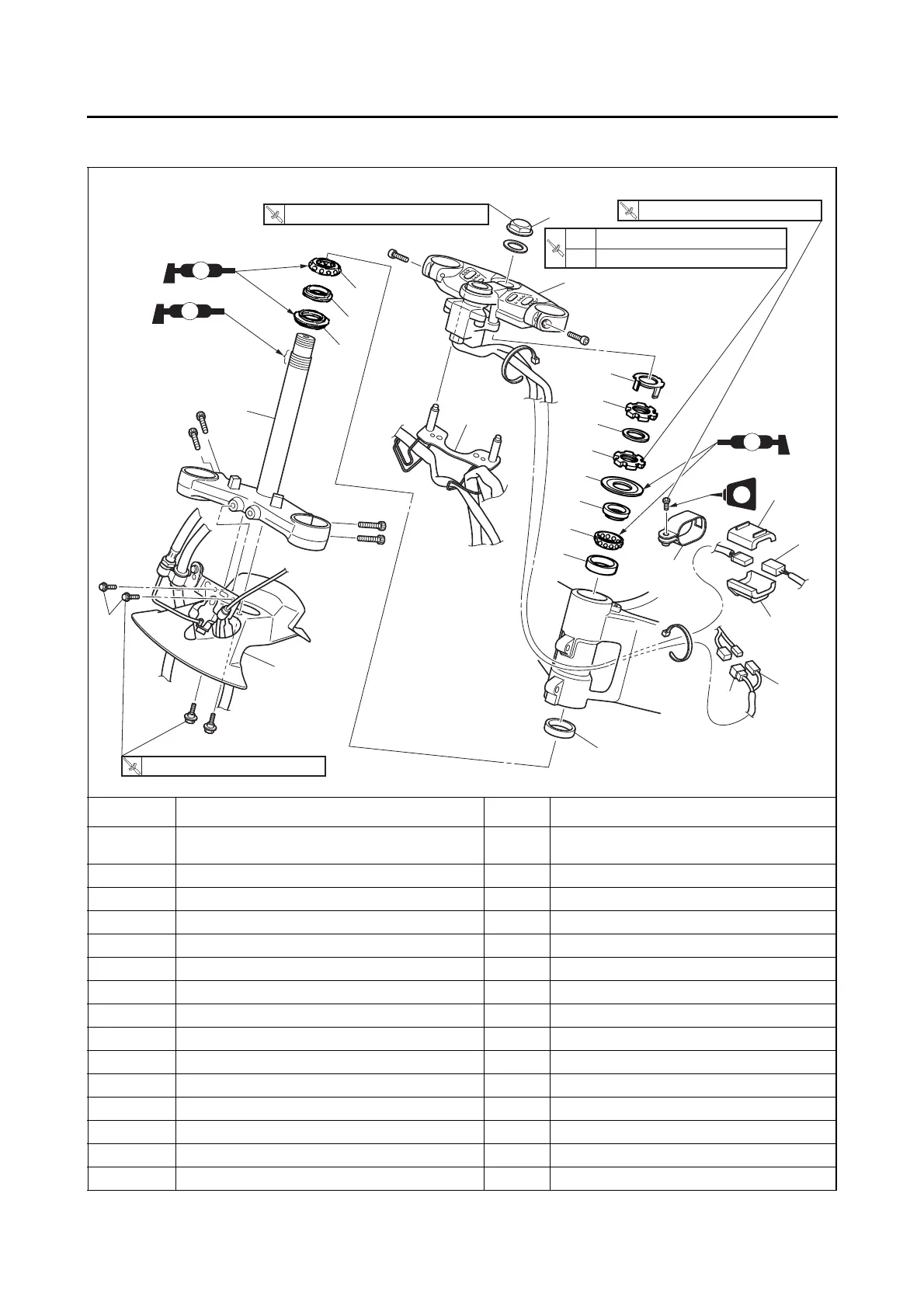

STEERING HEAD
Removing the lower bracket
Order Job/Parts to remove Q’ty Remarks
Rider seat/T-bar
Refer to “GENERAL CHASSIS” on page
4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Handlebars Refer to “HANDLEBARS” on page 4-76.
Front wheel Refer to “FRONT WHEEL” on page 4-22.
Front fork legs Refer to “FRONT FORK” on page 4-82.
1 Immobilizer unit coupler cover holder 1
2 Immobilizer unit coupler cover 2
3 Immobilizer unit coupler 1 Disconnect.
4 Main switch coupler 2 Disconnect.
5 Lower bracket cover 1
6 Brake hose joint bracket bolt 2
7 Steering stem nut 1
8 Upper bracket 1
9 Handlebar bracket 1
10 Lock washer 1
LS
LS
14
18
6
5
12
LS
LTLT
LT
7
8
9
22
21
3
1
2
2
17
16
15
13
11
10
4
4
19
20
T
R
.
.
1st 52 Nm (5.2 m
•
kg, 37 ft
•
lb)
2nd 18 Nm (1.8 m
•
kg, 13 ft
•
lb)
T
R
.
.
115 Nm (11.5 m
•
kg, 85 ft
•
lb)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
.R.
