SHIFT SHAFT
5-58
EAS25420
CHECKING THE SHIFT SHAFT
1. Check:
• Shift shaft
Bends/damage/wear → Replace.
• Shift shaft spring
Damage/wear → Replace.
EAS25430
CHECKING THE STOPPER LEVER
1. Check:
• Stopper lever
Bends/damage → Replace.
Roller turns roughly → Replace the stopper
lever.
• Shift lever spring
Damage/wear → Replace.
EAS25450

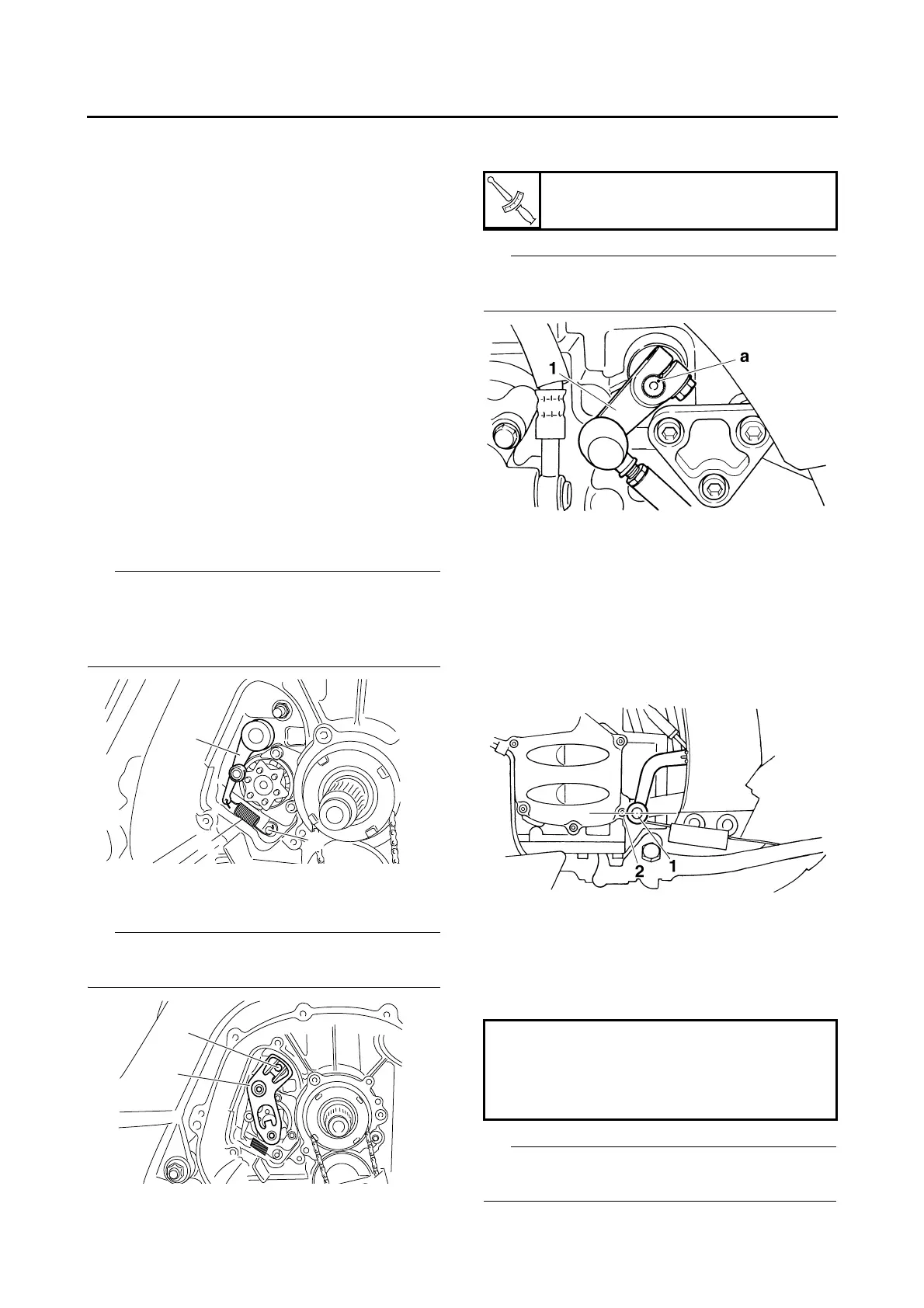

INSTALLING THE SHIFT SHAFT
1. Install:
• Stopper lever “1”
• Stopper lever spring “2”
TIP
• Hook the ends of the stopper lever spring onto
the stopper lever and the crankcase boss “3”.
• Mesh the stopper lever with the shift drum seg-
ment assembly.
2. Install:
• Shift shaft “1”
TIP
Hook the end of the shift shaft spring onto the
shift shaft spring stopper “2”.
3. Install:
• Shift arm “1”
TIP
Align the punch mark “a” in the shift shaft with
the slot in the shift arm.
EAS21380
ADJUSTING THE SHIFT PEDAL
1. Check:
• Shift pedal position
Check that the center of the shift pedal end
“1” is aligned with the center of the middle
gear case cover bolt “2” as shown in the illus-
tration when viewed directly from the side.
Incorrect → Adjust.
2. Adjust:
• Shift pedal position
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Loosen both locknuts “1”.
b. Turn the shift rod “2” in direction “a” or “b” to
obtain the correct shift pedal position.
TIP
Check that the groove “c” in the shift pedal is be-
tween the projections “d” on the frame.
1
2
3
2
1
T
R
.
.
Shift arm pinch bolt
10 Nm (1.0 m·kg, 7.2 ft·lb)
Direction “a”
Shift pedal is raised.
Direction “b”
Shift pedal is lowered.
