GENERAL CHASSIS
4-7
EAS1MC1056

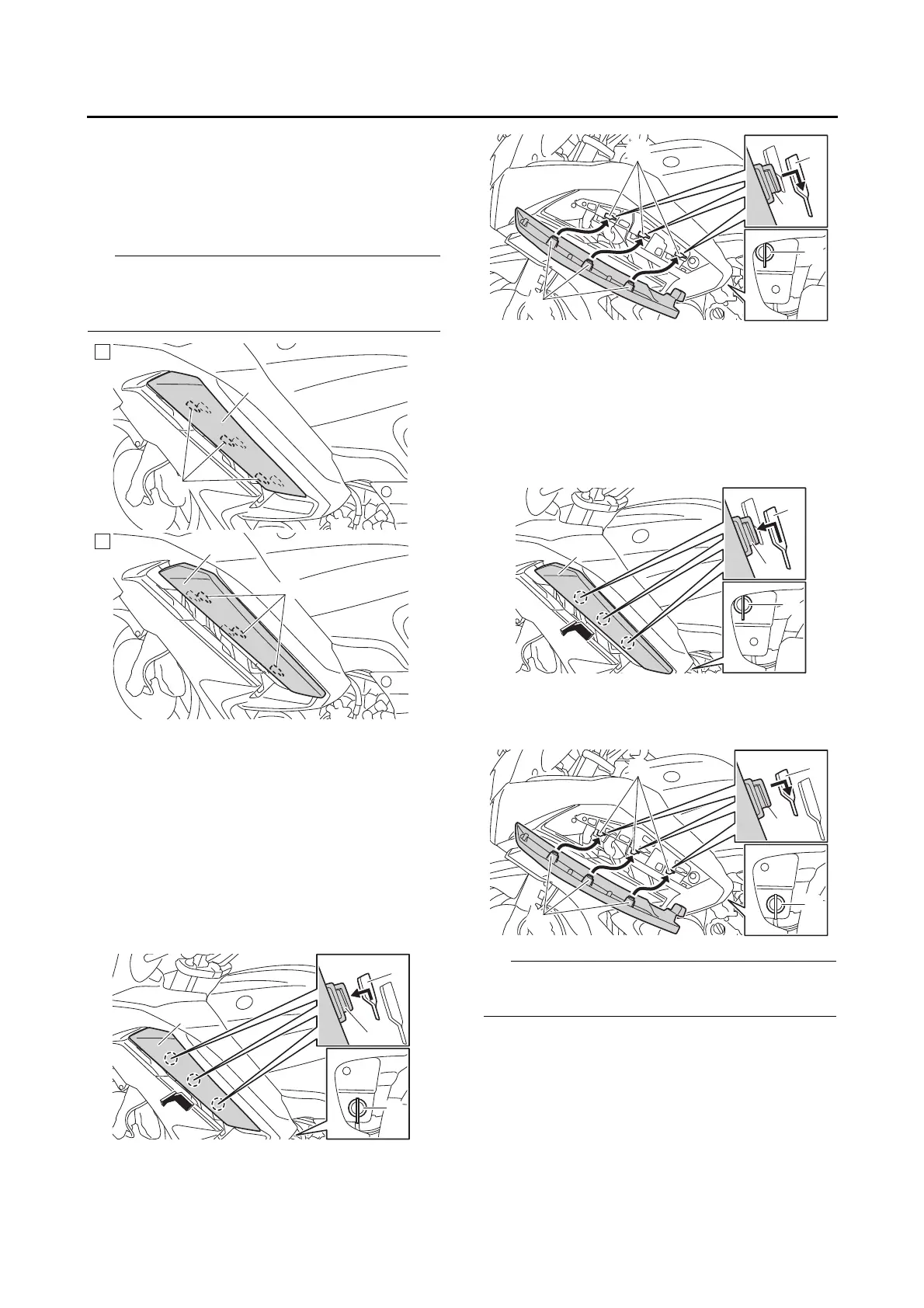

ADJUSTING THE SIDE PANELS
The following procedure applies to both of the
side panels.
1. Adjust:
• Side panel position
TIP
The side panel “1” can be opened 20 mm (0.79
in) for added ventilation to suit the riding condi-
tions.
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼▼▼▼
To open a side panel
a. Remove the quick fastener “1”.
b. Slide the side panel “2” forward to unhook its
projections “a” from the lower slots “b”, and
then pull the panel off.
c. Insert the projections “a” into the upper slots
“c”, and then slide the panel backward.
d. Install the quick fastener “1”.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
To close a side panel
a. Remove the quick fastener “1”.
b. Slide the side panel “2” forward to unhook its
projections “a” from the upper slots “b”, and
then pull the panel off.
c. Insert the projections “a” into the lower slots
“c”, and then slide the panel backward.
d. Install the quick fastener “1”.
TIP
Make sure that the side panel is properly in-
stalled.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS1MC1057
REMOVING THE FRONT COWLING INNER
PANEL
1. Remove:
• Headlight beam adjusting knob “1”
A. Closed position
B. Open position
a. Lower slots
b. Upper slots
1
A
a
1
B
b
2
1
a
b
1
c
a
c
a
1
b
a
2
c
a
1
c
a
