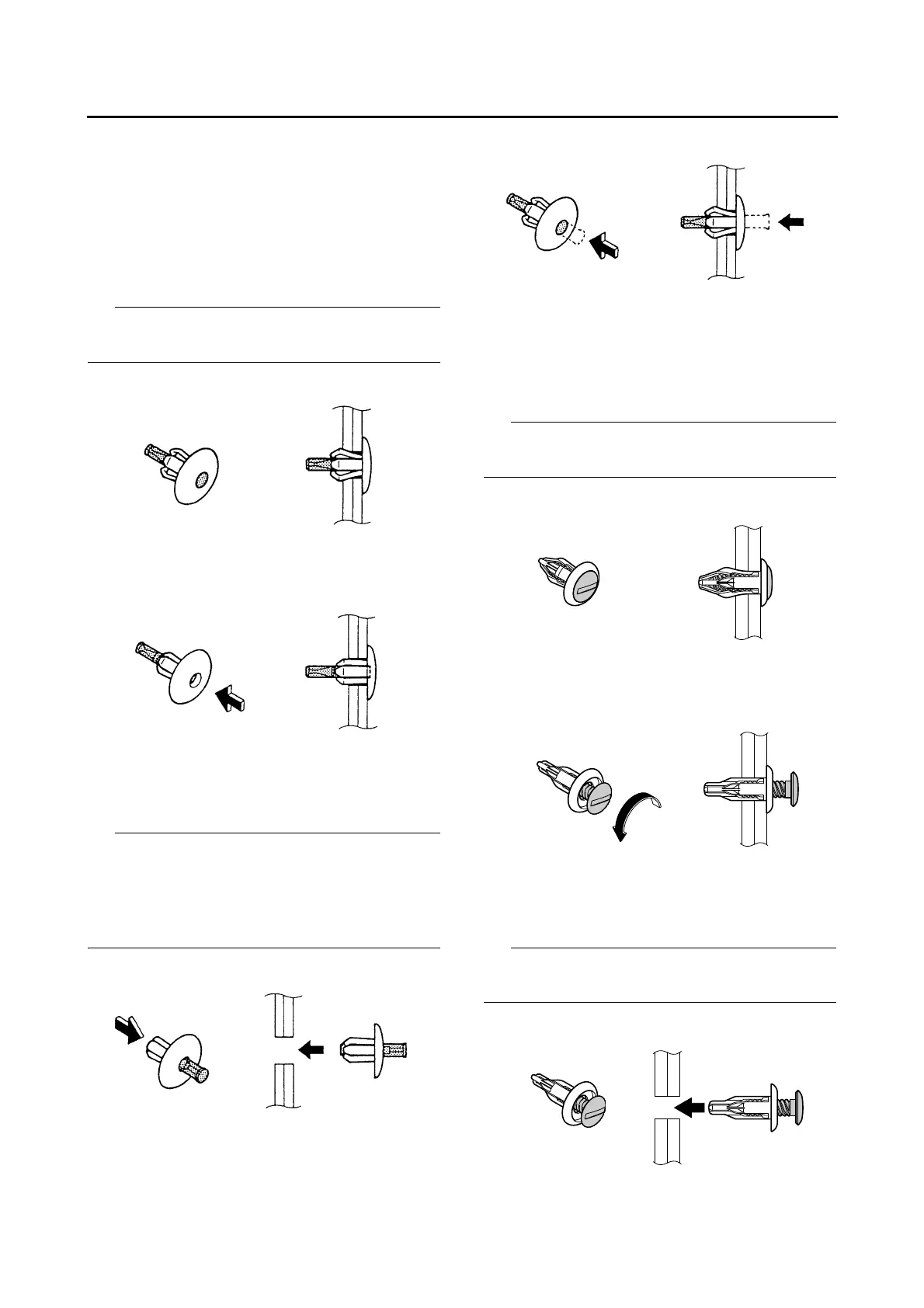

QUICK FASTENERS
Rivet type
1. Remove:
• Quick fastener
TIP
To remove the quick fastener, push its pin with a
screwdriver, then pull the fastener out.
2. Install:
• Quick fastener
TIP
To install the quick fastener, push its pin so that
it protrudes from the fastener head, then insert
the fastener into the part to be secured and push
the pin in with a screwdriver. Make sure that the
pin is flush with the fastener’s head.
Screw type
1. Remove:
• Quick fastener
TIP
To remove the quick fastener, loosen the screw
with a screwdriver, then pull the fastener out.
2. Install:
• Quick fastener
TIP
To install the quick fastener, insert the fastener
into the part to be secured and tighten the screw.
