Yamaha FJR1300A(D) - Front Fork

FRONT FORK
4-82
EAS22950
FRONT FORK

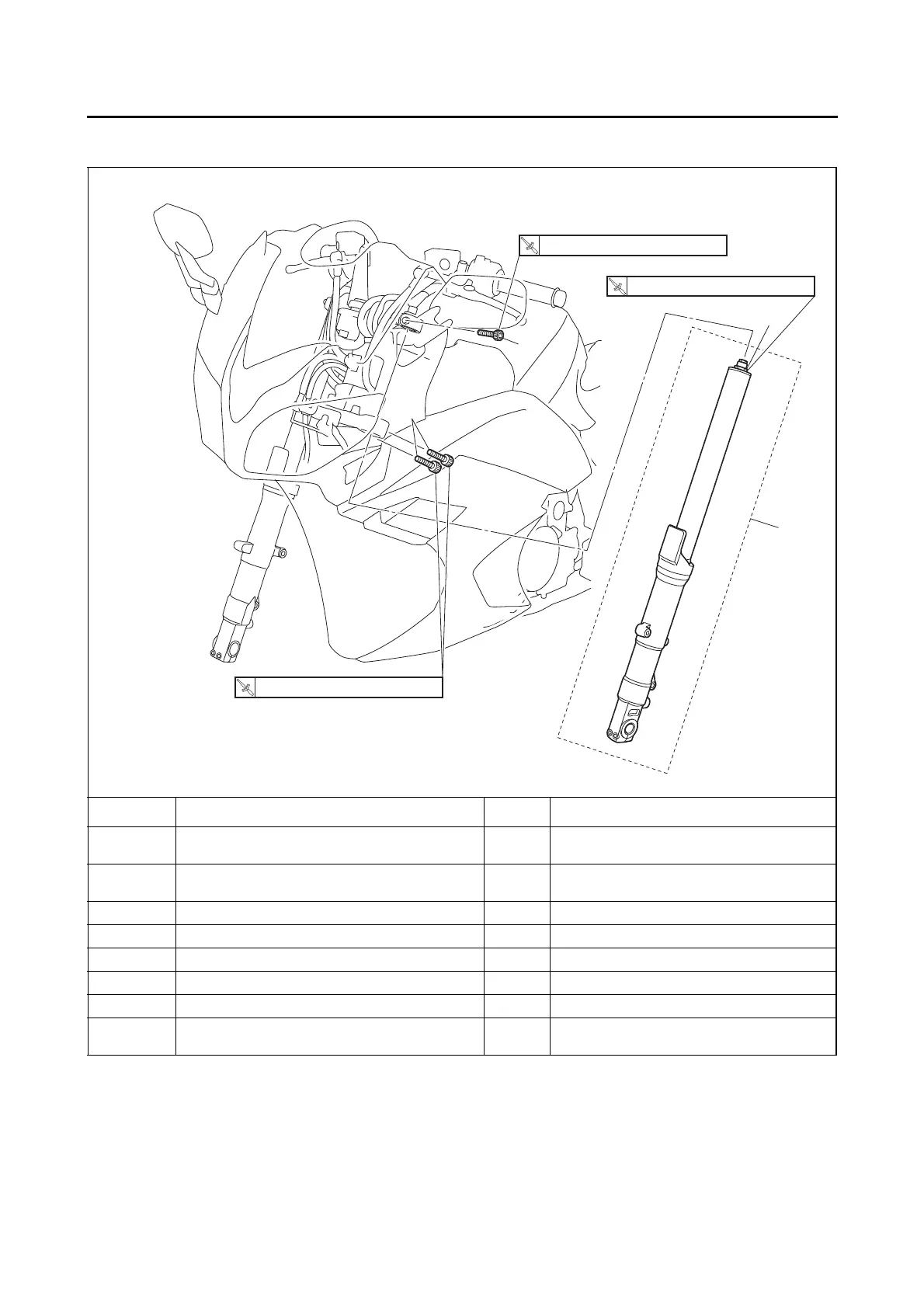

Removing the front fork legs
Order Job/Parts to remove Q’ty Remarks
The following procedure applies to both of
the front fork legs.
Lower inner panels
Refer to “GENERAL CHASSIS” on page
4-1.
Front wheel Refer to “FRONT WHEEL” on page 4-22.
1 Upper bracket pinch bolt 1 Loosen.
2 Cap bolt 1 Loosen.
3 Lower bracket pinch bolt 2 Loosen.
4Front fork leg 1
For installation, reverse the removal proce-
dure.
1
3
2
4
23 Nm (2.3 m
•
kg, 17 ft
•
Ib)
T
.R.
25 Nm (2.5 m
•
kg, 18 ft
•
Ib)
T
.R.
26 Nm (2.6 m
•
kg, 19 ft
•
Ib)
T
.R.
