Yamaha FJR1300A(D) - Pickup Rotor

PICKUP ROTOR
5-36
EAS24520

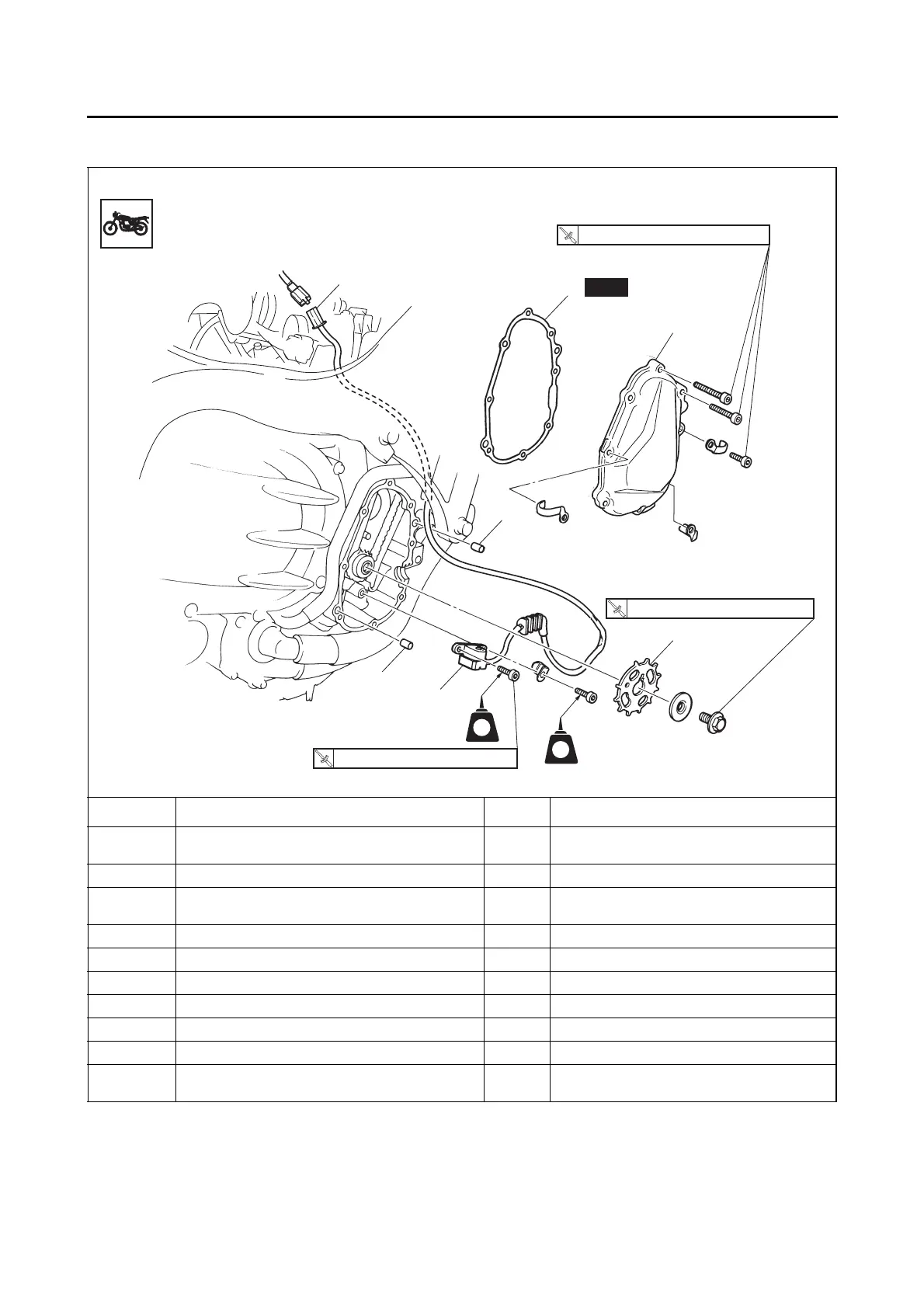

PICKUP ROTOR
Removing the pickup rotor
Order Job/Parts to remove Q’ty Remarks
Side cowlings/Air filter case
Refer to “GENERAL CHASSIS” on page
4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Generator cover
Refer to “GENERATOR AND STARTER
CLUTCH” on page 5-31.
1Pickup rotor cover 1
2 Pickup rotor cover gasket 1
3 Dowel pin 2
4 Crankshaft position sensor coupler 1 Disconnect.
5 Crankshaft position sensor 1
6Pickup rotor 1
For installation, reverse the removal proce-
dure.
