PERIODIC MAINTENANCE
3-26
EAS20820
MEASURING THE ENGINE OIL PRESSURE
1. Check:
• Engine oil level
Below the minimum level mark → Add the
recommended engine oil to the proper level.
2. Start the engine, warm it up for several min-
utes, and then turn it off.
ECA13410
When the engine is cold, the engine oil will
have a higher viscosity, causing the engine
oil pressure to increase. Therefore, be sure
to measure the engine oil pressure after
warming up the engine.
3. Remove:
• Right side cowling
Refer to “GENERAL CHASSIS” on page 4-1.
4. Remove:
• Main gallery bolt
EWA12980
The engine, muffler and engine oil are ex-
tremely hot.

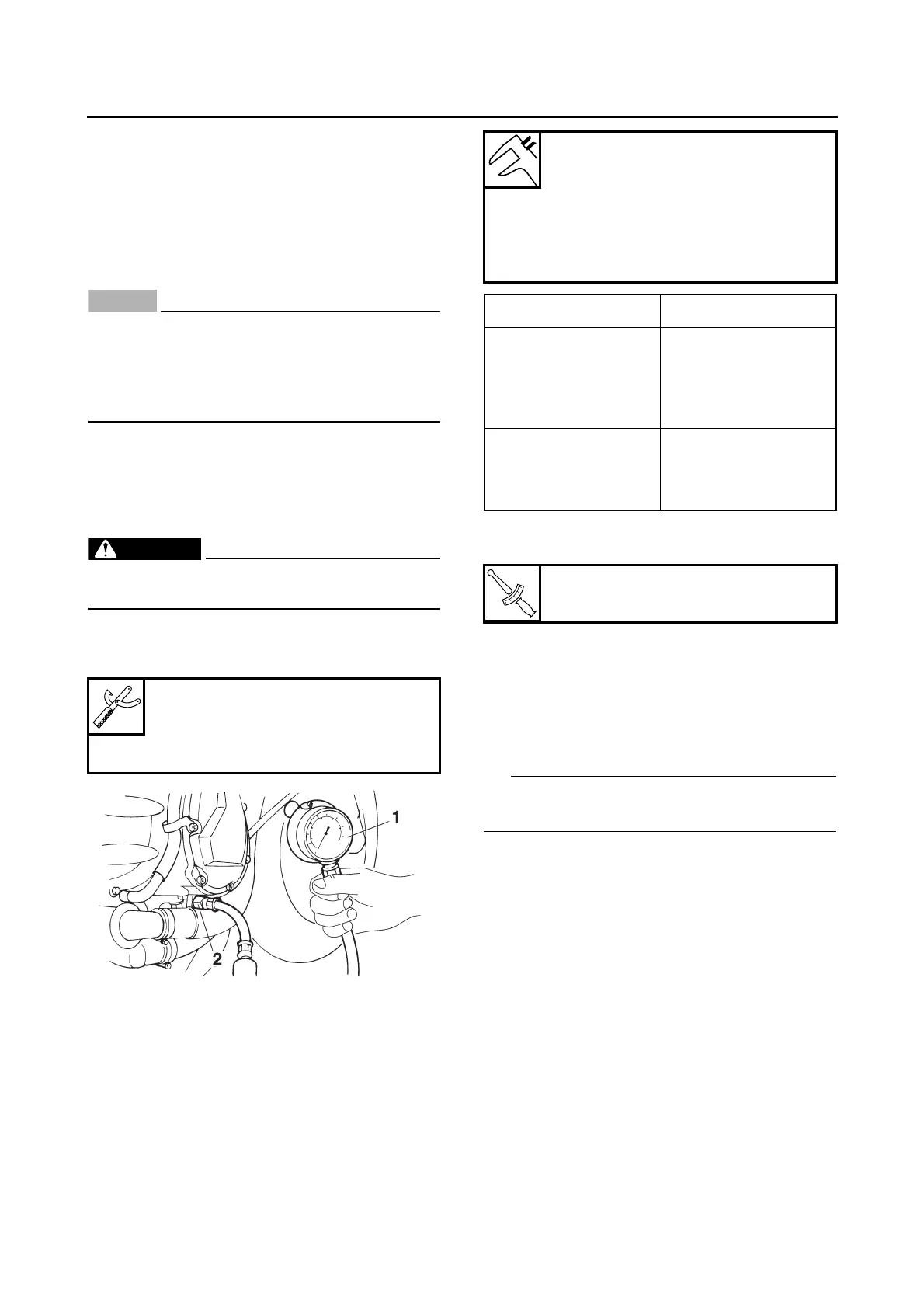

5. Install:
• Oil pressure gauge set “1”
• Oil pressure adapter B “2”
6. Measure:
• Engine oil pressure
(at the following conditions)
Out of specification → Adjust.
7. Install:
• Main gallery bolt
8. Install:
• Right side cowling
Refer to “GENERAL CHASSIS” on page 4-1.
EAS21110
CHECKING THE COOLANT LEVEL
1. Stand the vehicle on a level surface.
• Place the vehicle on the centerstand.
• Make sure the vehicle is upright.
2. Remove:
• Left side panel
Refer to “GENERAL CHASSIS” on page 4-1.
3. Check:
• Coolant level
The coolant level should be between the min-
imum level mark “a” and maximum level mark
“b”.
Below the minimum level mark → Add the
recommended coolant to the proper level.
Oil pressure gauge set
90890-03120
Oil pressure adapter B
90890-03124
Oil pressure
30.0 kPa/1050 r/min (0.30
kgf/cm²/1050 r/min, 4.4 psi/1050
r/min) at oil temperature of 85.0
°C (185.0 °F)
Oil temperature
75.0–95.0 °C (167.0–203.0 °F)
Engine oil pressure Possible causes
Below specification
• Faulty oil pump
• Clogged oil filter
• Leaking oil passage
• Broken or dam-
aged oil seal
Above specification
• Leaking oil passage
• Faulty oil filter
• Oil viscosity too
high
Main gallery bolt
8 Nm (0.8 m·kg, 5.8 ft·lb)
