Yamaha FJR1300A(D) - Rear Wheel

REAR WHEEL
4-31
EAS22030
REAR WHEEL

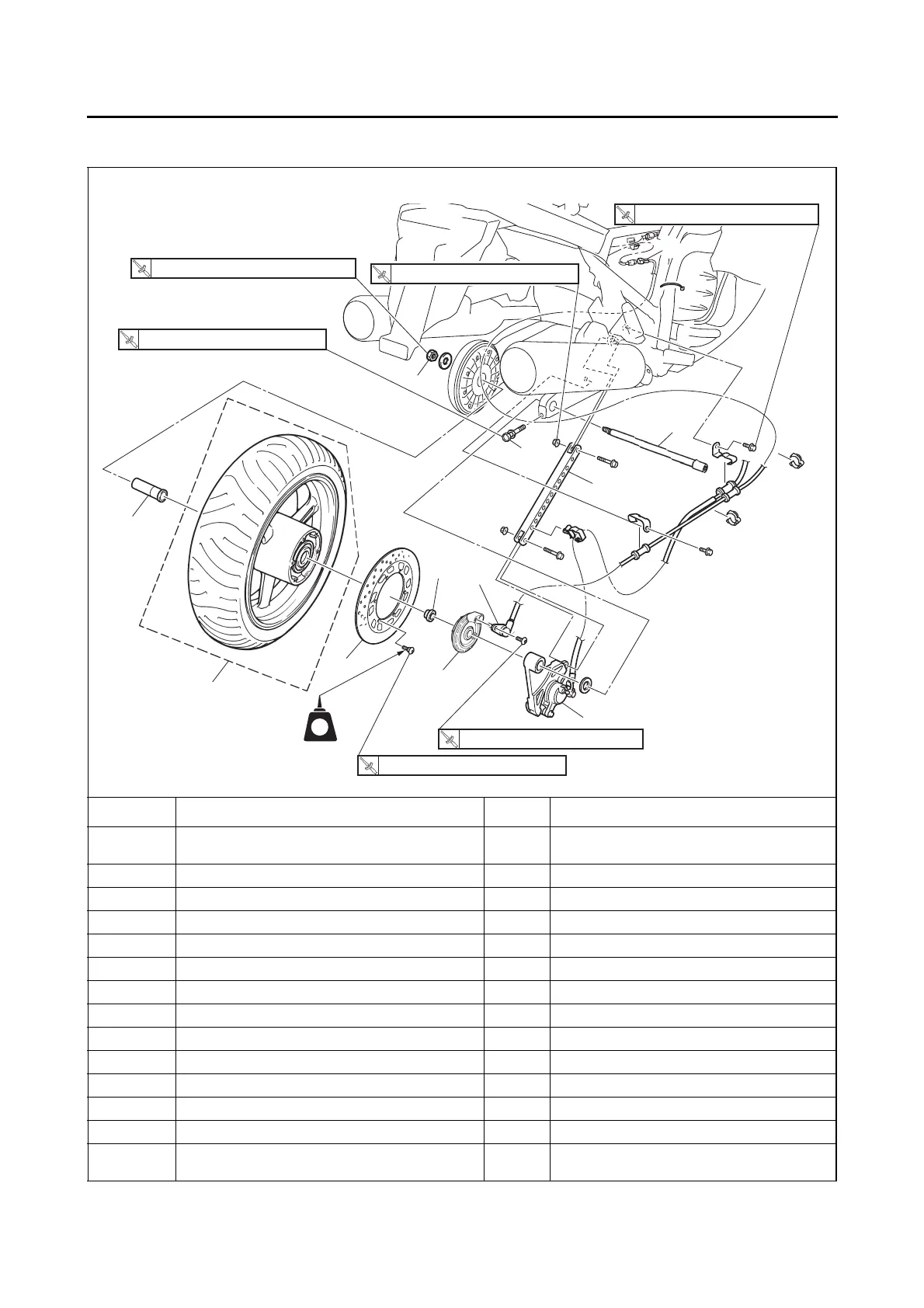

Removing the rear wheel, brake disc, wheel sensor, and sensor housing
Order Job/Parts to remove Q’ty Remarks
Right side cover
Refer to “GENERAL CHASSIS” on page
4-1.
1 Rear wheel sensor coupler 1 Disconnect.
2 Rear wheel sensor 1
3 Rear wheel axle pinch bolt 1 Loosen.
4 Rear wheel axle nut 1
5 Brake torque rod 1
6 Rear wheel axle 1
7 Rear brake caliper 1
8 Rear wheel 1
9 Rear wheel sensor housing 1
10 Collar 1
11 Collar 1
12 Rear brake disc 1
For installation, reverse the removal proce-
dure.
T
R
.
.
23 Nm (2.3 m
•
kg, 17 ft
•
Ib)
T
R
.
.
125 Nm (12.5 m
•
kg, 90 ft
•
lb)
T
R
.
.
30 Nm (3.0 m
•
kg, 22 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
1
4
3
5
7
9
12
6
T
R
.
.
18 Nm (1.8 m
•
kg, 13 ft
•
Ib)
2
8
11
10
(6)
LT
