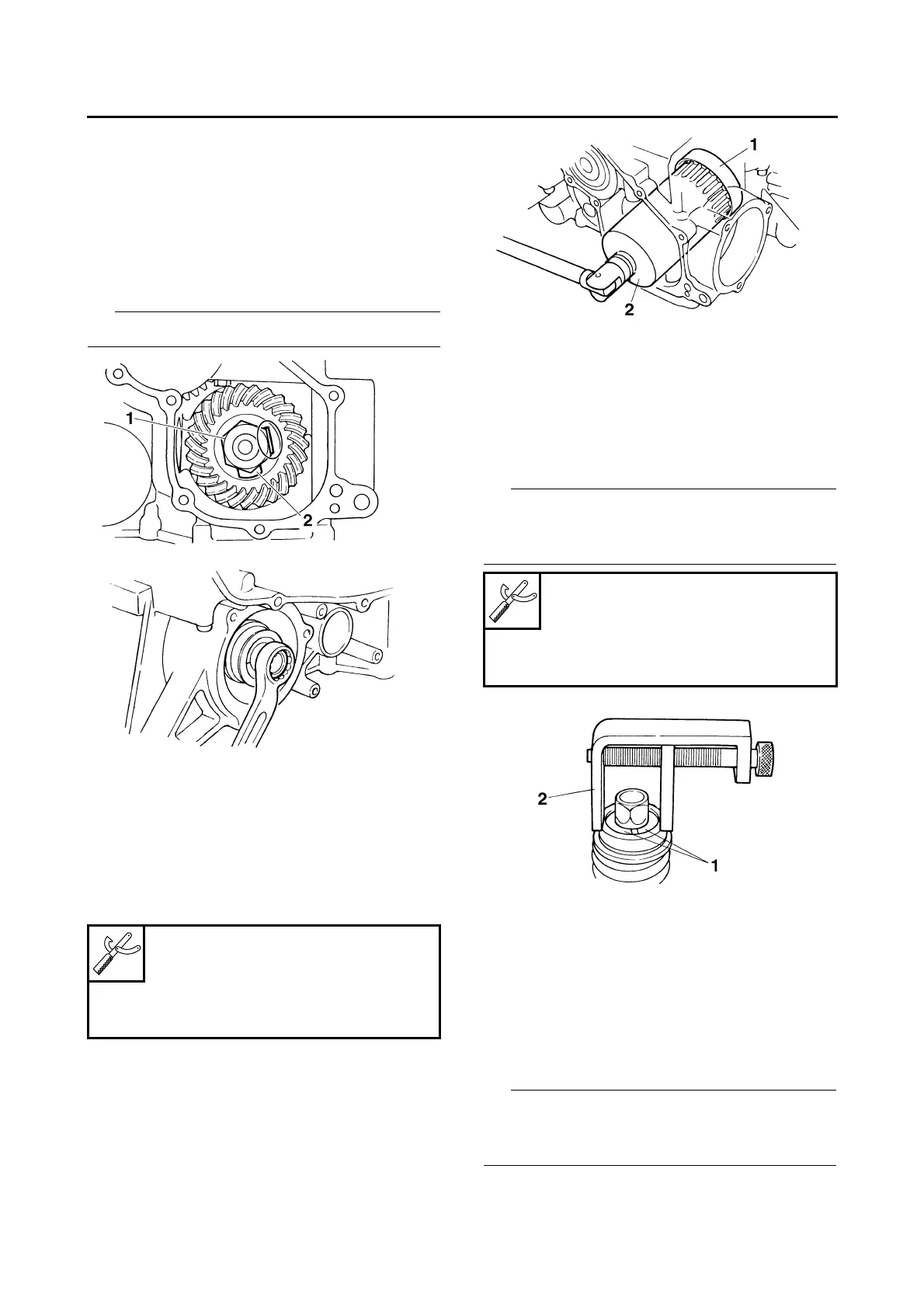

Yamaha FJR1300A(D) - Removing the Middle Drive Shaft Assembly; Disassembling the Middle Drive Shaft Assembly; Disassembling the Middle Driven Shaft Assembly

MIDDLE GEAR
5-69
EAS25730
REMOVING THE MIDDLE DRIVE SHAFT
ASSEMBLY
1. Remove:
• Middle drive pinion gear nut “1”
• Lock washer “2”
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼▼▼▼
a. Straighten the lock washer tab.
b. Loosen the middle drive pinion gear nut.
TIP
While holding the middle drive shaft.
c. Remove the middle drive pinion gear nut and
lock washer.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲▲▲▲
2. Remove:
• Bearing retainer “1”
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼▼▼▼
a. Straighten the thread on the bearing retainer.
b. Attach the bearing retainer wrench “2”.
c. Loosen the bearing retainer.
d. Remove the bearing retainer.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS25750
DISASSEMBLING THE MIDDLE DRIVE
SHAFT ASSEMBLY
1. Remove:
• Spring retainers “1”
TIP
While compressing the spring with the damper
spring compressor “2”, remove the spring retain-
ers.
EAS25770
DISASSEMBLING THE MIDDLE DRIVEN
SHAFT ASSEMBLY
1. Remove:
• Middle driven pinion gear nut
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Straighten the thread on the middle driven
pinion gear nut.
b. Loosen the middle driven pinion gear nut.
TIP
Secure the middle driven shaft in a vise, making
sure to tighten the vise jaws onto the flat sec-
tions of the shaft.
Bearing retainer wrench
90890-04137
Middle drive shaft bearing retain-
er wrench
YM-04137
Damper spring compressor
90890-04090
Middle drive gear damper spring
compressor
YM-33286
