OIL COOLER
6-4
EAS26410
OIL COOLER

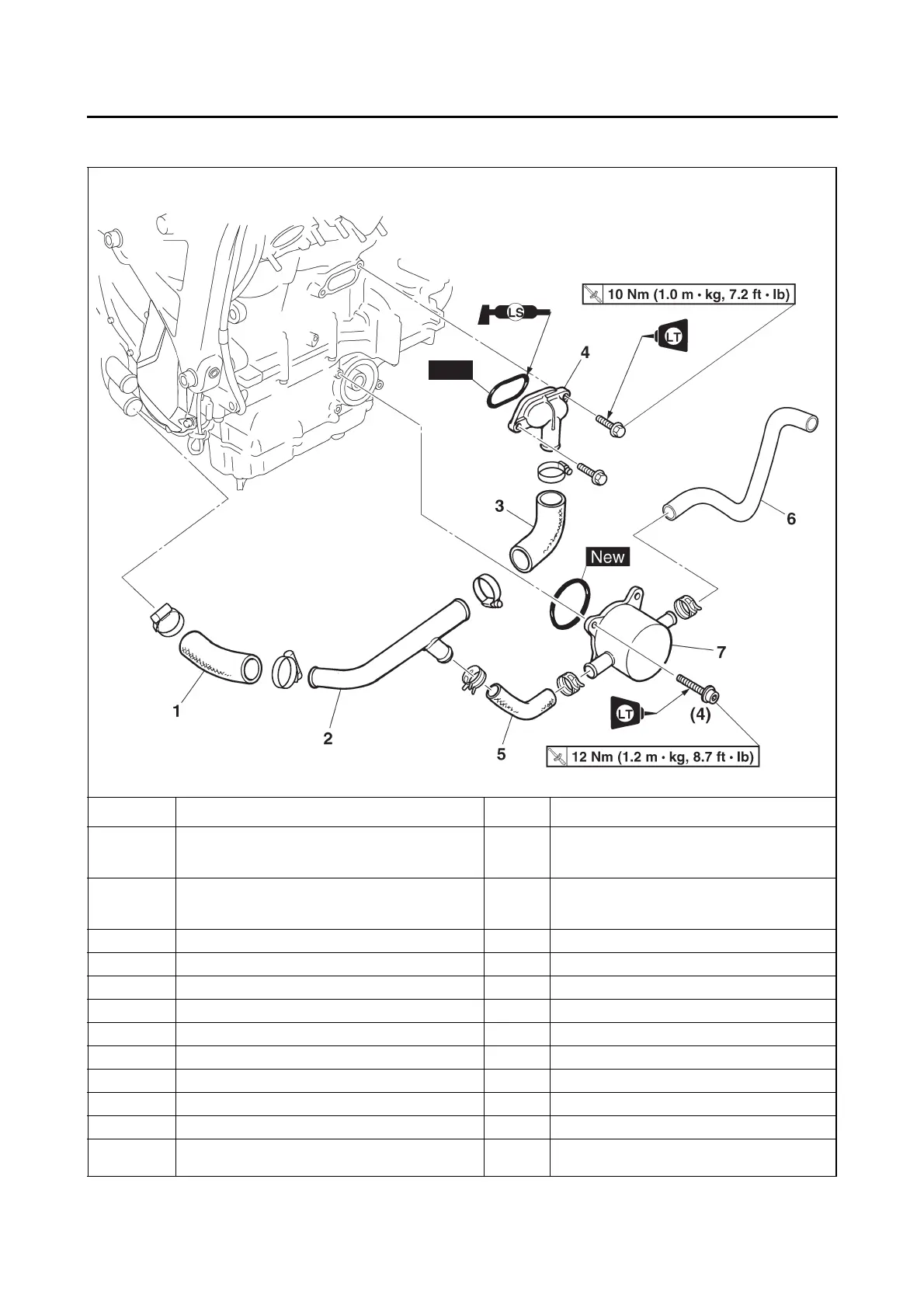

Removing the oil cooler
Order Job/Parts to remove Q’ty Remarks
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-24.
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-27.
Radiator Refer to “RADIATOR” on page 6-1.
Exhaust pipe assembly Refer to “ENGINE REMOVAL” on page 5-3.
1 Water pump outlet hose 1
2 Water pump outlet pipe 1
3 Water jacket joint inlet hose 1
4 Water jacket joint 1
5 Oil cooler inlet hose 1
6 Oil cooler outlet hose 1
7 Oil cooler 1
For installation, reverse the removal proce-
dure.
