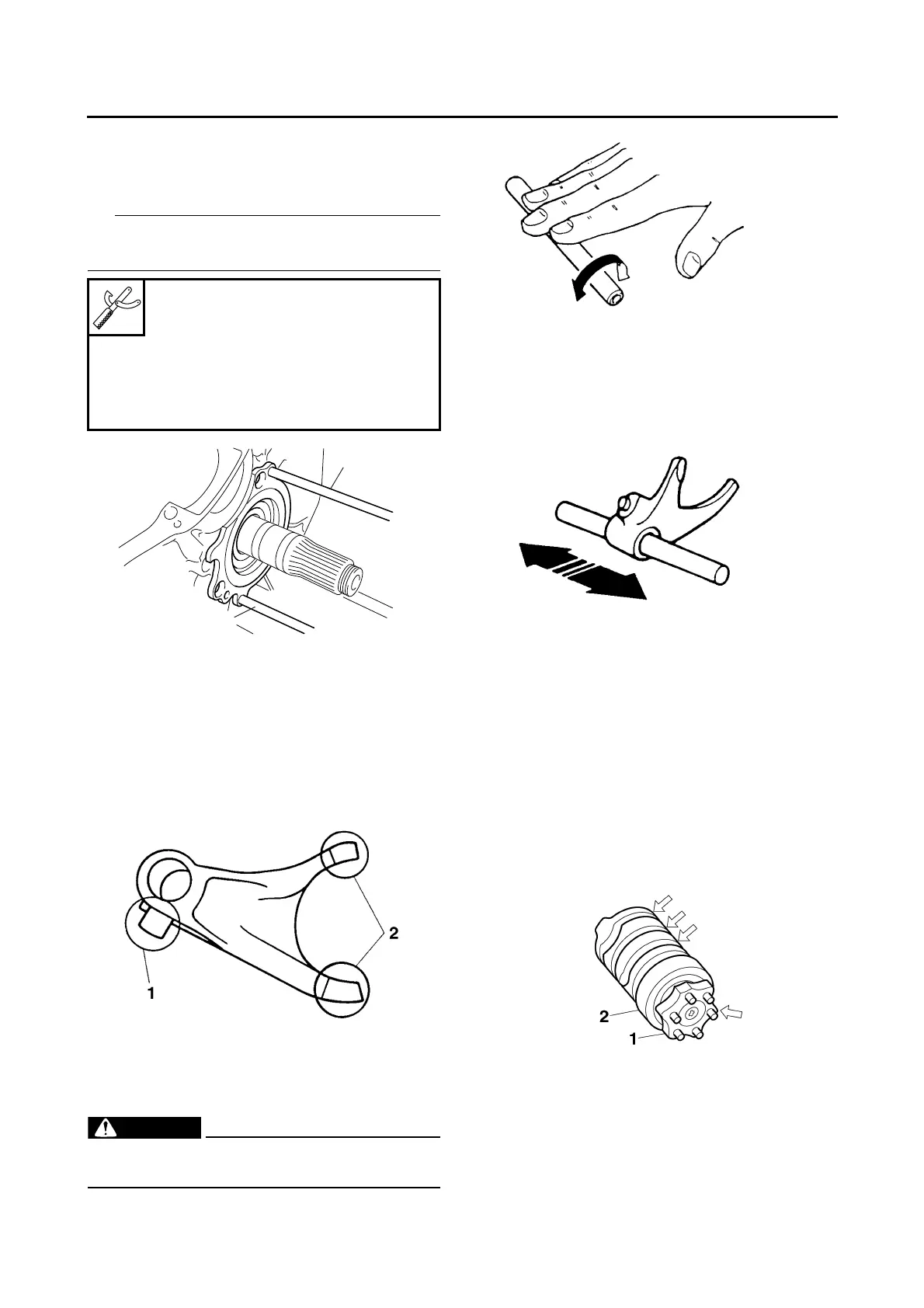

REMOVING THE TRANSMISSION
1. Remove:
• Main axle assembly
TIP
Remove the main axle assembly with the slide
hammer bolts “1” and weight.
EAS26260
CHECKING THE SHIFT FORKS
The following procedure applies to all of the shift
forks.
1. Check:
• Shift fork cam follower “1”
• Shift fork pawl “2”
Bends/damage/scoring/wear → Replace the
shift fork.
2. Check:
• Shift fork guide bar
Roll the shift fork guide bar on a flat surface.
Bends → Replace.
WARNING
EWA12840
Do not attempt to straighten a bent shift fork
guide bar.
3. Check:
• Shift fork movement
(along the shift fork guide bar)
Rough movement → Replace the shift forks
and shift fork guide bar as a set.
EAS26270
CHECKING THE SHIFT DRUM ASSEMBLY
1. Check:
• Shift drum groove
Damage/scratches/wear → Replace the shift
drum assembly.
• Shift drum segment “1”
Damage/wear → Replace the shift drum as-
sembly.
• Shift drum bearing “2”
Damage/pitting → Replace the shift drum as-
sembly.
EAS26300
CHECKING THE TRANSMISSION
1. Measure:
• Main axle runout
(with a centering device and dial gauge “1”)
Out of specification → Replace the main axle.
Slide hammer bolt
90890-01083
Slide hammer bolt 6 mm
YU-01083-1
Weight
90890-01084
YU-01083-3
