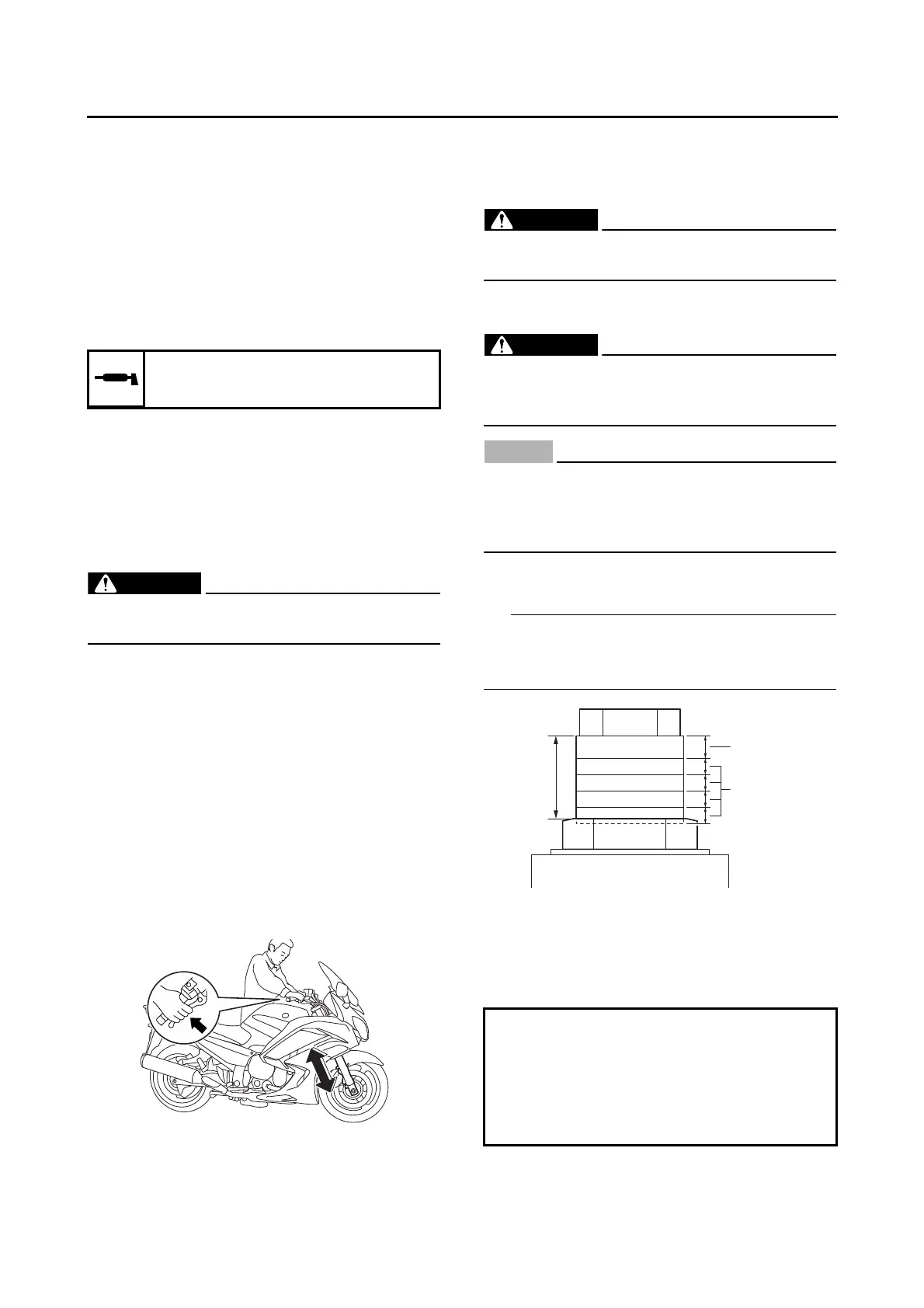

PERIODIC MAINTENANCE
3-21
EAS1MC1043
CHECKING THE CENTERSTAND
1. Check:
• Centerstand operation
Check that the centerstand moves smoothly.
Rough movement → Repair or replace.
EAS21730
LUBRICATING THE CENTERSTAND
Lubricate the pivoting point, metal-to-metal mov-
ing parts, and spring contact points of the center-
stand.
EAS1MC1044
CHECKING THE SIDESTAND SWITCH
Refer to “CHECKING THE SWITCHES” on
page 8-169.
EAS21530
CHECKING THE FRONT FORK
1. Stand the vehicle on a level surface.
WARNING
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.
2. Check:
• Inner tube
Damage/scratches → Replace.
• Oil seal
Oil leakage → Replace.
3. Hold the vehicle upright and apply the front
brake.
4. Check:
• Front fork operation
Push down hard on the handlebar several
times and check if the front fork rebounds
smoothly.
Rough movement → Repair.
Refer to “FRONT FORK” on page 4-82.
EAS21580
ADJUSTING THE FRONT FORK LEGS
The following procedure applies to both of the
front fork legs.
WARNING
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.
Spring preload
WARNING
EWA1MC1011
Always adjust both front fork legs evenly.
Uneven adjustment can result in poor han-
dling and loss of stability.
NOTICE
ECA13570
• Grooves are provided to indicate the ad-
justment position.
• Never go beyond the maximum or mini-
mum adjustment positions.
1. Adjust:
• Spring preload
TIP
The spring preload setting is determined by
measuring the distance “a” shown in the illustra-
tion.
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Turn the adjusting bolt “1” in direction “a” or
“b”.
Recommended lubricant
Lithium-soap-based grease
b. 4.0 mm (0.16 in)
c. 3.0 mm (0.12 in)
Direction “a”
Spring preload is increased (suspen-
sion is harder).
Direction “b”
Spring preload is decreased (suspen-
sion is softer).
b
c
a
