Yamaha FJR1300A(D) - Handlebars

HANDLEBARS
4-76
EAS22850
HANDLEBARS

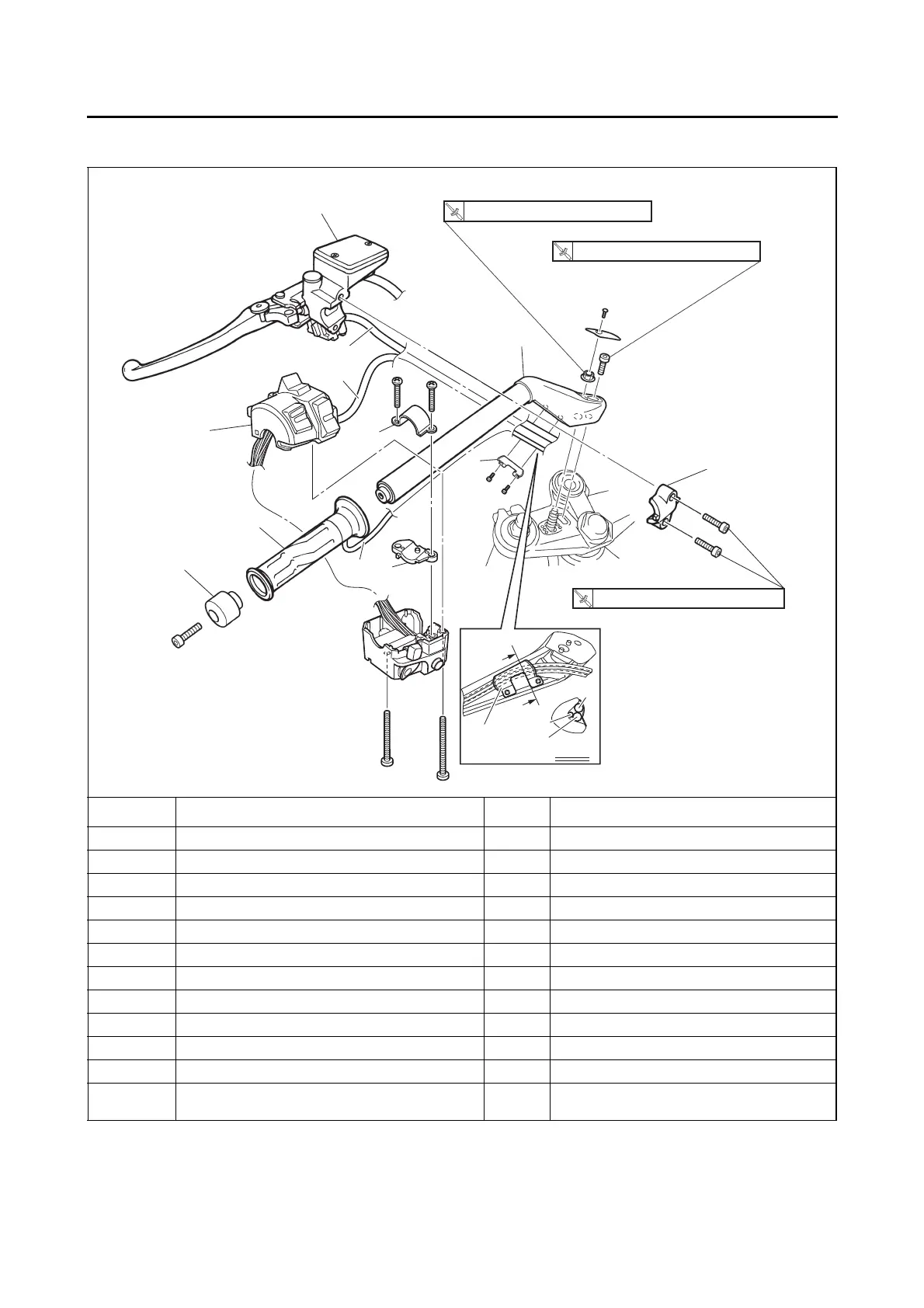

Removing the left handlebar
Order Job/Parts to remove Q’ty Remarks
1 Clutch master cylinder holder 1
2 Clutch master cylinder assembly 1
3 Left handlebar 1
4 Left handlebar switch holder 2
5 Left handlebar switch 1
6 Grip end 1
7 Handlebar grip 1
8 Lead holder 1
9 Clutch switch lead 1
10 Left handlebar switch lead 1
11 Left grip warmer lead 1
For installation, reverse the removal proce-
dure.
1
8
9
10
11
3
2
4
4
5
7
6
A-A
8
A
A
11
10
9
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
.R.
23 Nm (2.3 m
•
kg, 17 ft
•
Ib)
T
.R.
65 Nm (6.5 m
•
kg, 47 ft
•
Ib)
T
.R.
