Yamaha FJR1300A(D) - Page 254

HANDLEBARS
4-77

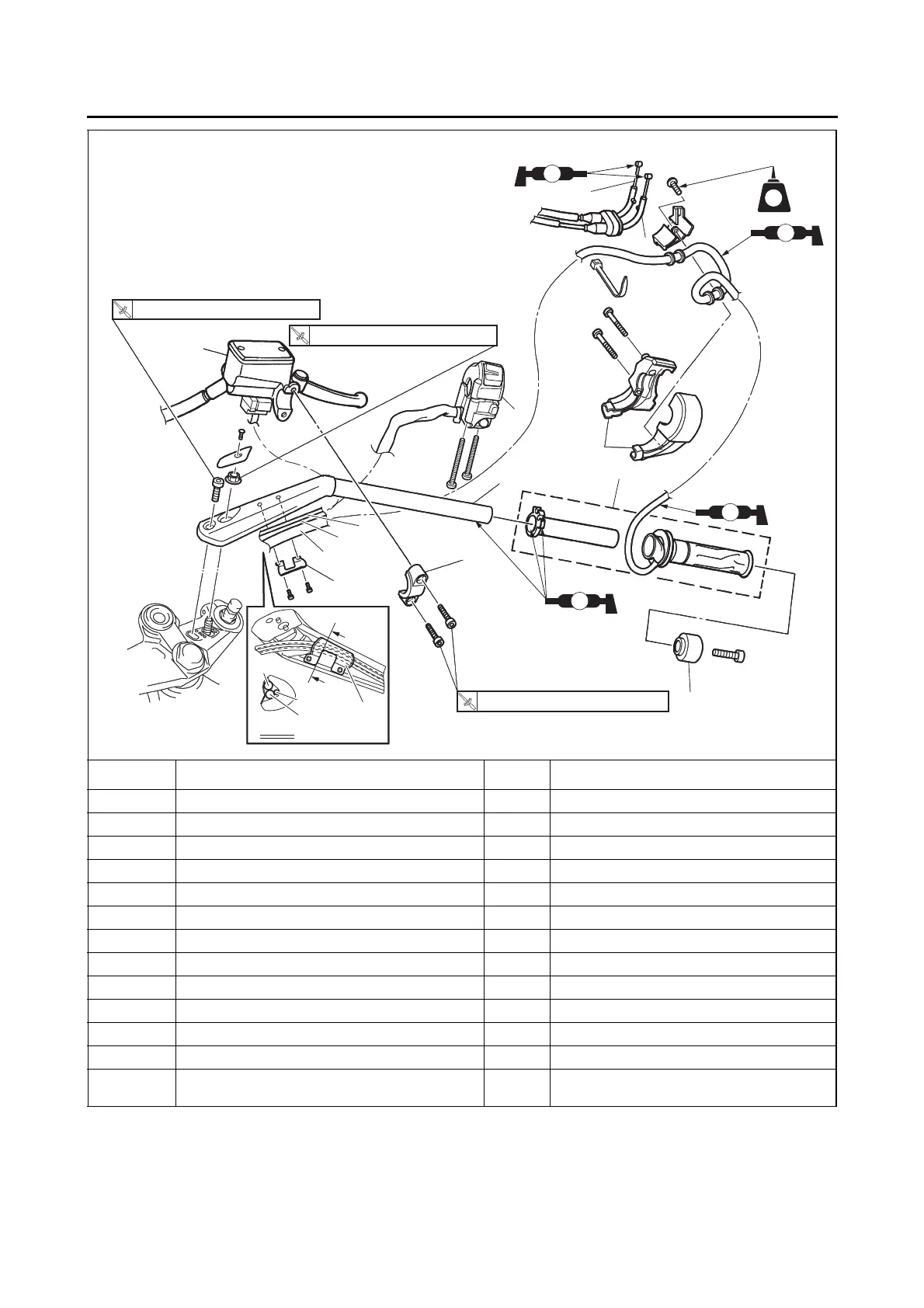

Removing the right handlebar
Order Job/Parts to remove Q’ty Remarks
1 Front brake master cylinder holder 1
2 Front brake master cylinder assembly 1
3 Grip end 1
4 Throttle cable housing 2
5 Throttle cable 2 Disconnect.
6 Throttle grip 1
7 Right handlebar 1
8 Lead holder 1
9 Right grip warmer lead 1
10 Right handlebar switch lead 1
11 Front brake light switch lead 1
12 Right handlebar switch 1
For installation, reverse the removal proce-
dure.
